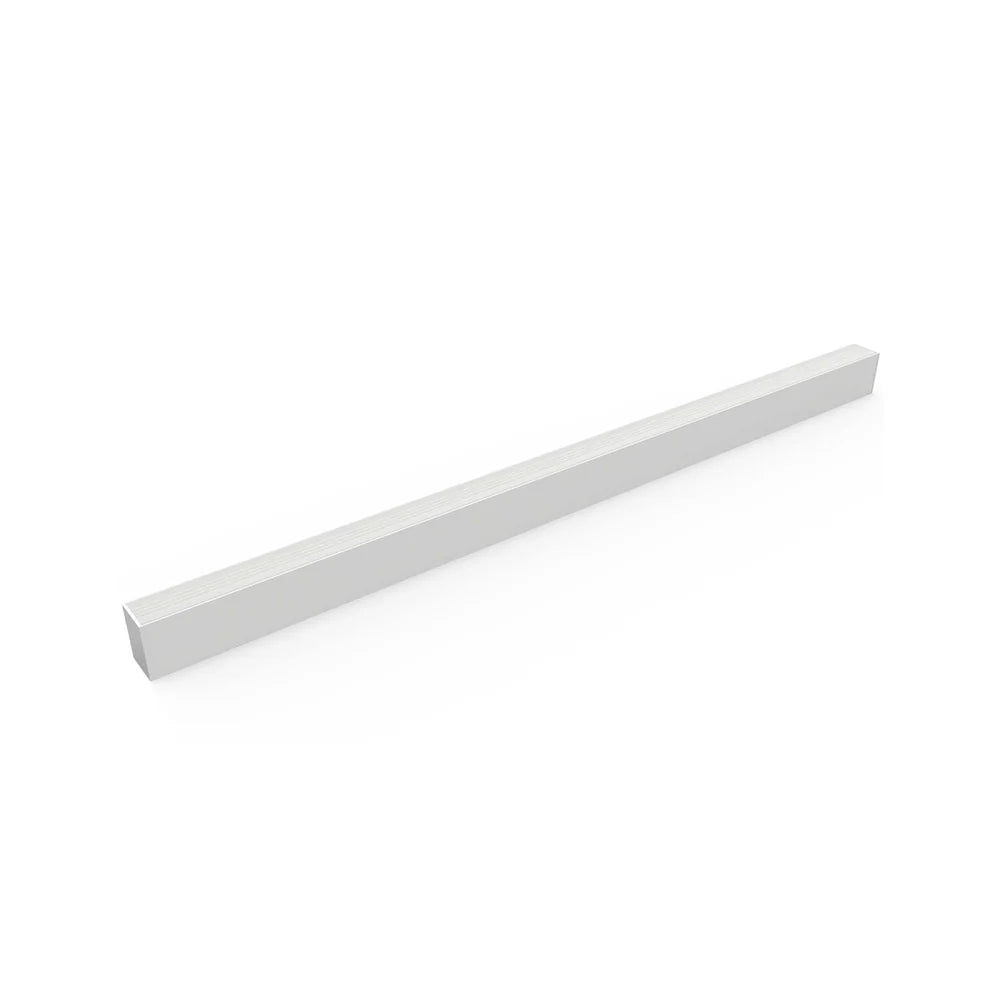

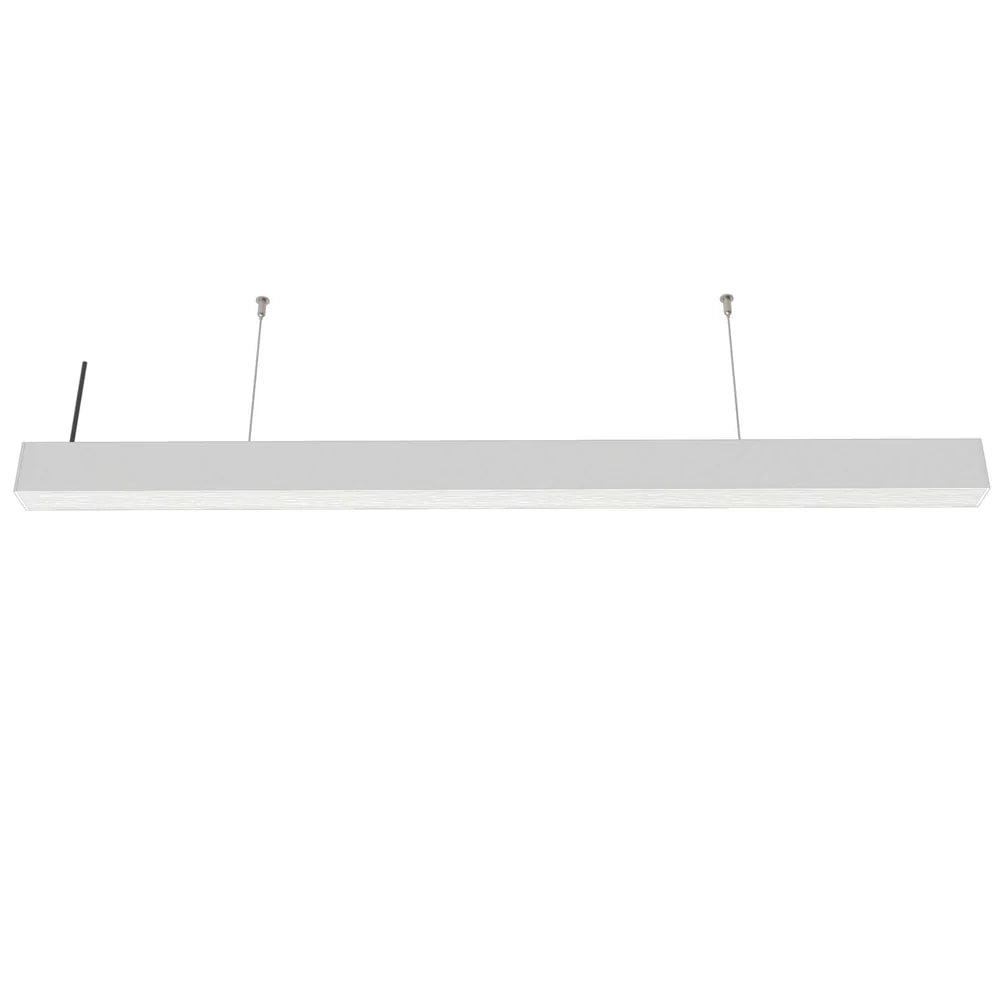

LED linear light oozes style perfect for the ultra-modern office as well as providing the perfect light and looks in a traditional office space. They are also designed to fit perfectly in any retail environment where lighting is essential. It can be suspended, surface mounted or recessed, and is available in both non-dimmable and 1-10V dimmable models, giving great flexibility in lighting solutions.
-
3CCT - The 3CCT model allows you to switch between three colour temperatures - 3000K, 4000K, and 6000K - enabling you to tailor the lighting to suit any environment or desired ambience. The latest design features a concealed CCT switch, accessible from the back of the unit, allowing quick and easy selection of the preferred output for your application.
-

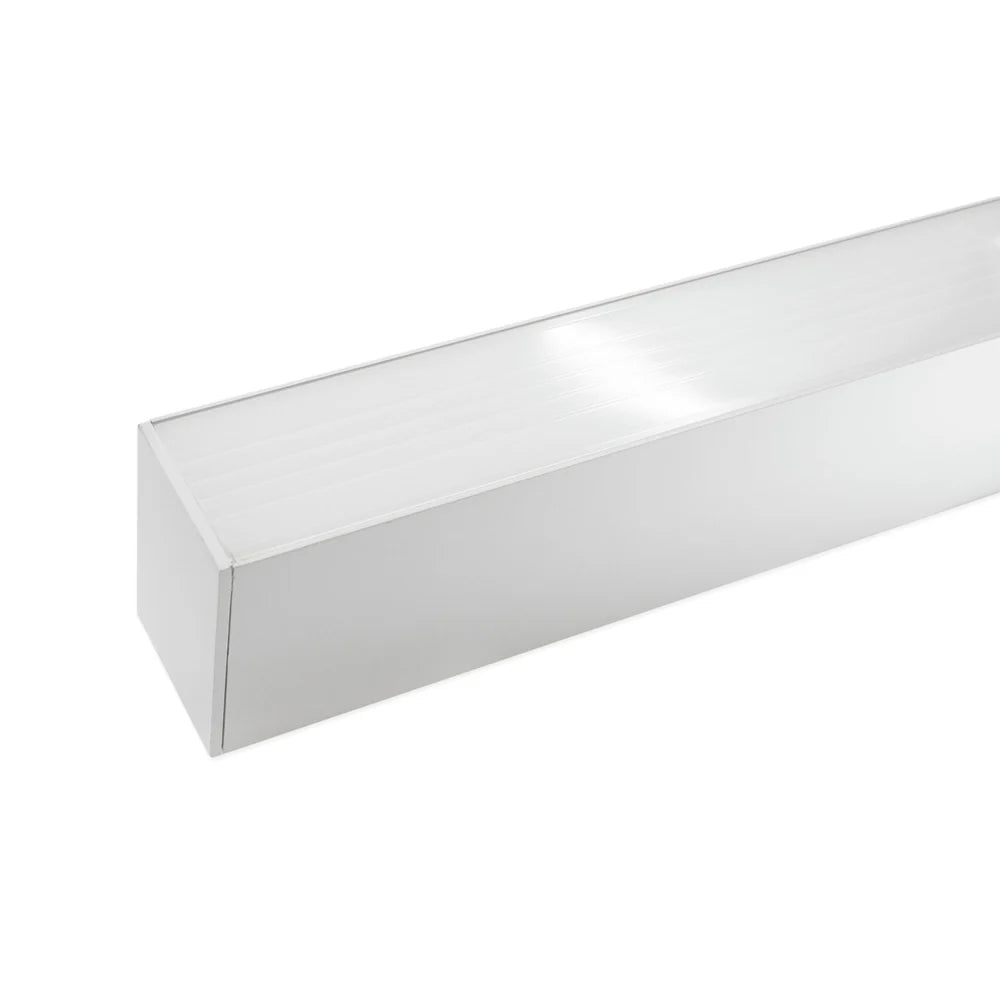

Material - Made of quality aluminium construction and frosted anti-glare diffuser (PMMA polymethacrylate) that offers homogeneous lighting and reduces visual annoyances.
-
Linkable - They can be linked continuously up to 1000W and are not just limited to running in a straight line, add connectors and you can create any pattern to suit the space.
-
1-10V Dimming - Allowing adjustment of the amount of light it gives out, giving you full control to produce the perfect effect in any room at any given time. A 1-10V dimmer (NOT INCLUDED) is required for dimming.
-

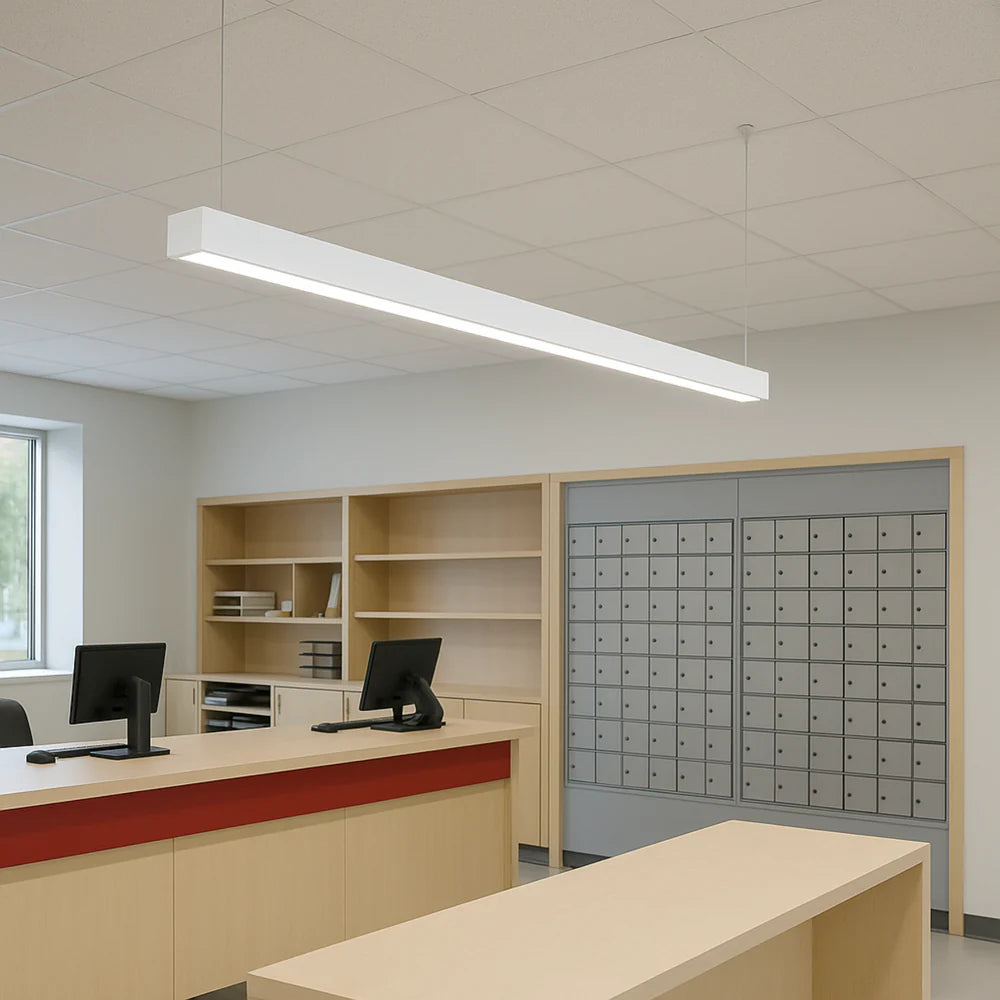

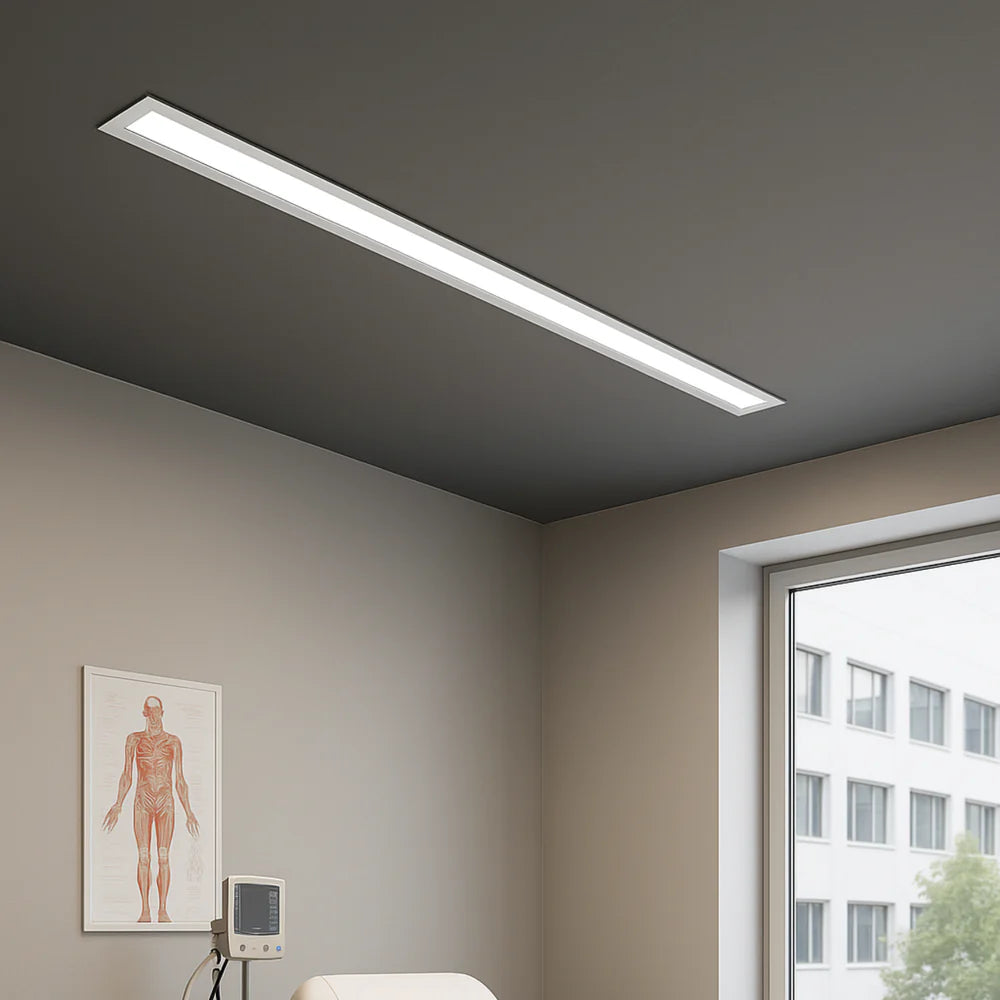

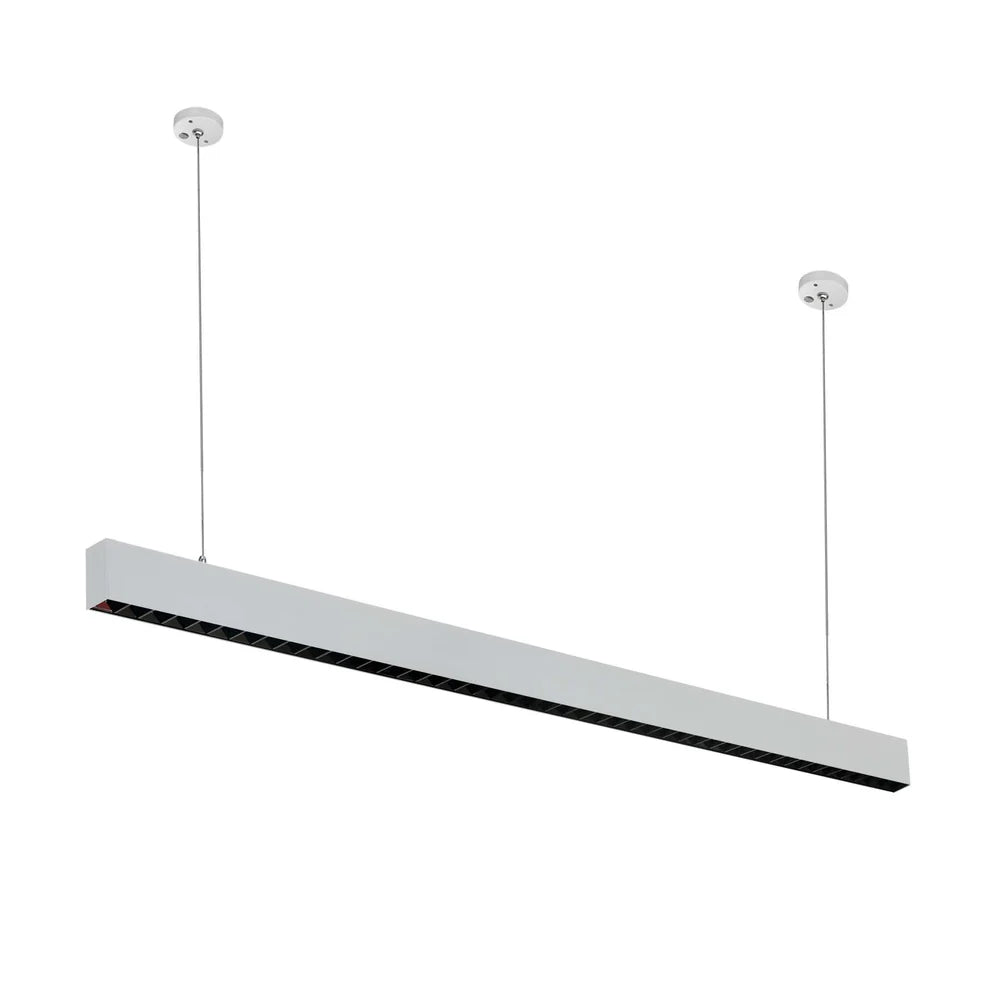

Installation - Designed to be suspended, surface mounted or recessed (recessed mounting bracket sold separately).
-

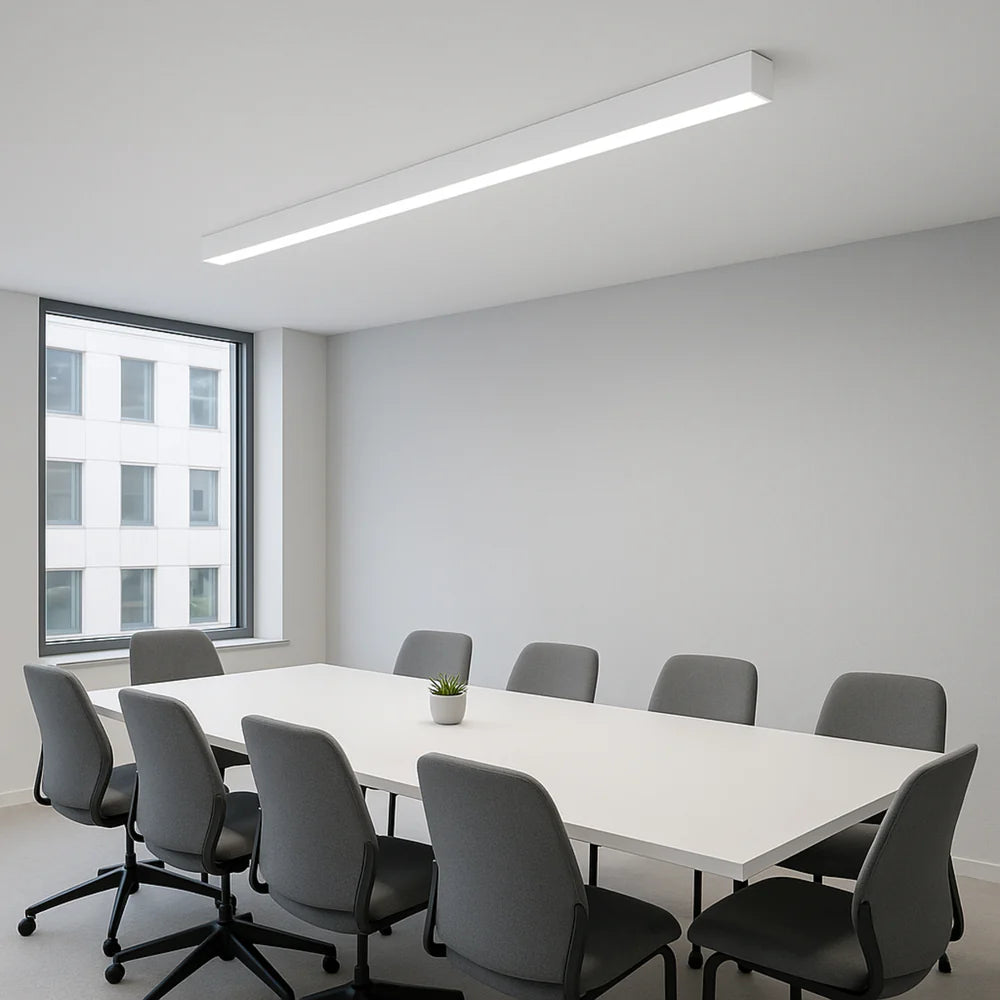

Application - Ideally suited for an array of environments, this includes offices, hallways, retail, conference room, dining room and kitchen.
| Model |
Wattage |
Dimension (L*W*H) |
| LL-4FT |
40W |
1200x50x70mm
|
| LL-5FT |
50W |
1500x50x70mm
|
| LL-6FT |
60W |
1800x50x70mm |
| LL-8FT |
80W |
2400x50x70mm |
Attention: Load Quantity Carried By The Circuit Breaker
Circuit Breaker Model
|
B10
|
C10
|
B16
|
C16
|
Quantity (pcs)
|
21
|
35
|
34
|
57
|
SPECIFICATIONS:
- Input Voltage: AC220-240V 50/60Hz
- Power Factor: ≥95
- Inrush Current: ≤28A & 170uS @230VAC
- Dimmable: Non-Dim or 1-10V Dimming
- Lumen: 135Lms/W
- IP Rating: IP20
- Beam Angle: 120°
- CRI: >80
- Cable Length: 160cm
- Working Temperature: -25°C to 45°C
- Lifespan: 50,000Hrs
- Warranty: 5 Years
PACKAGE INCLUDES:
- 1 x LED Linear Light

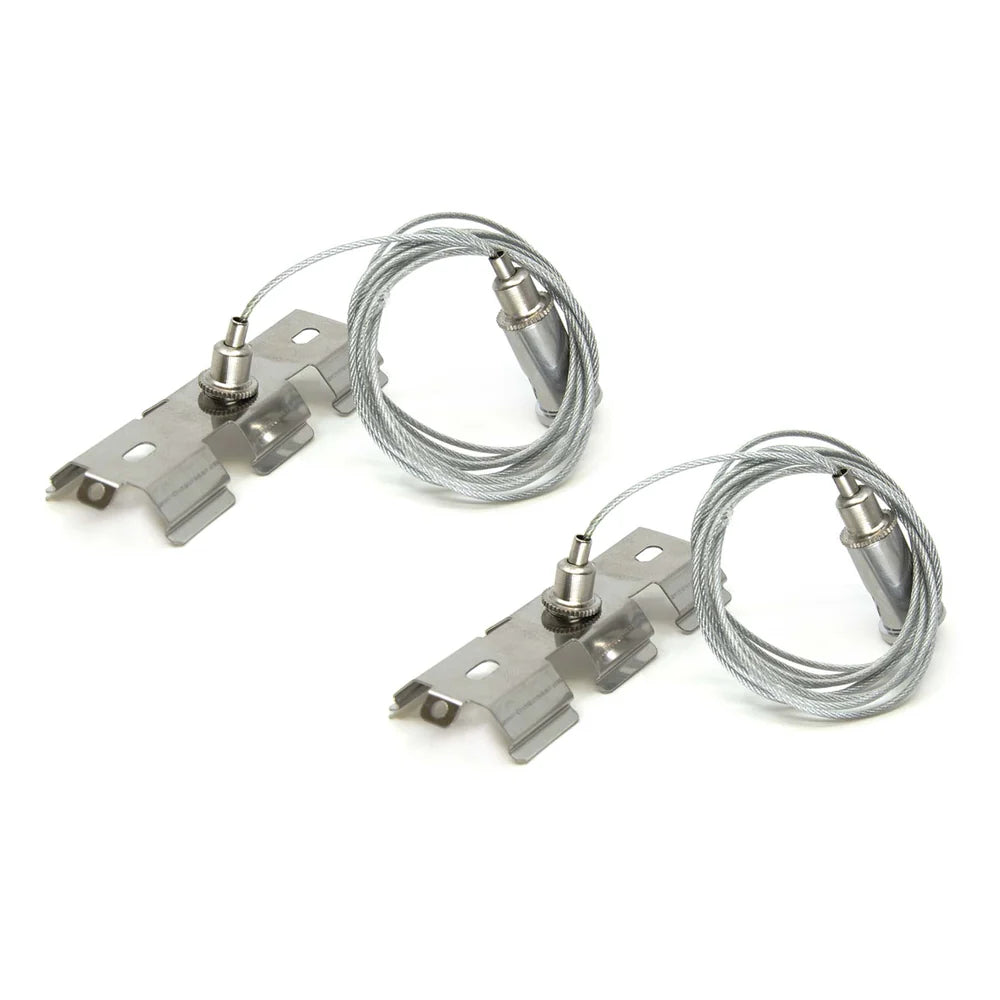

- 1 x Suspension Kit (Wire Length: 150cm)
- 1 x Surface Mounting Kit
