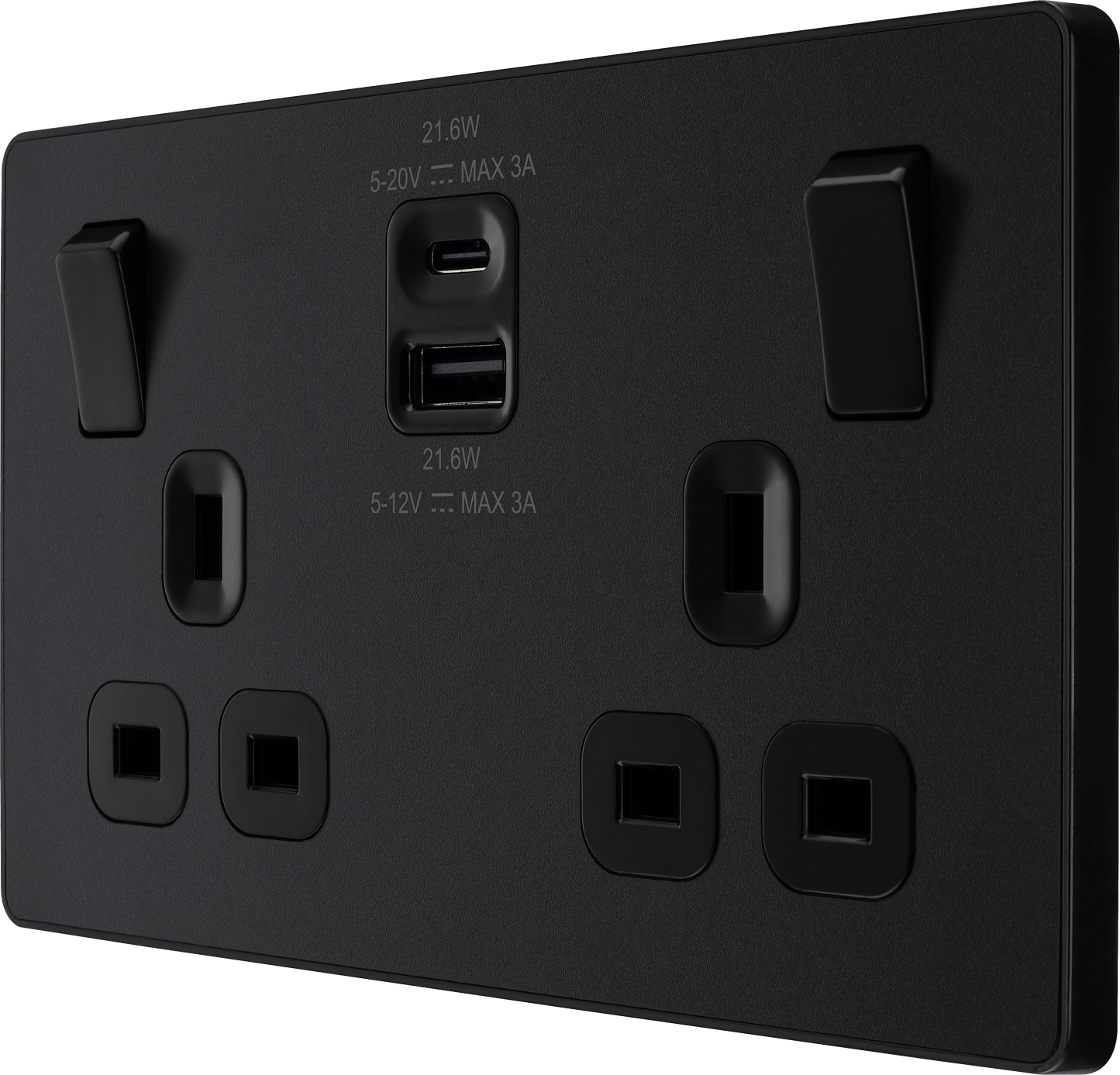

This 13A double socket from British General comes with integrated fast charge USB-A and USB-C ports, allowing you to plug in an electrical device and charge mobile devices simultaneously without having to sacrifice a power socket. The 22 Watt variable voltage fast charging supports PD & QC charging protocols for Android and iOS devices, and auto-detects the USB device and adjusts the charging pattern to suit. The matt black finish front plate clips on and off making re-decoration easier, and has a low profile ideal for modern interiors. Designed with angled in line colour coded terminals and backed out captive screws for ease of installation.
Features
-
Free your sockets and charge all your devices - Ideal for mobile phones, tablets and other USB chargeable devices
-
22W, variable voltage fast charging with PD & QC charging protocols for Android and iOS devices, with charge shared across two outlets - 1 x Type A, 1 x Type C
-
Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suit; protective overload function
-

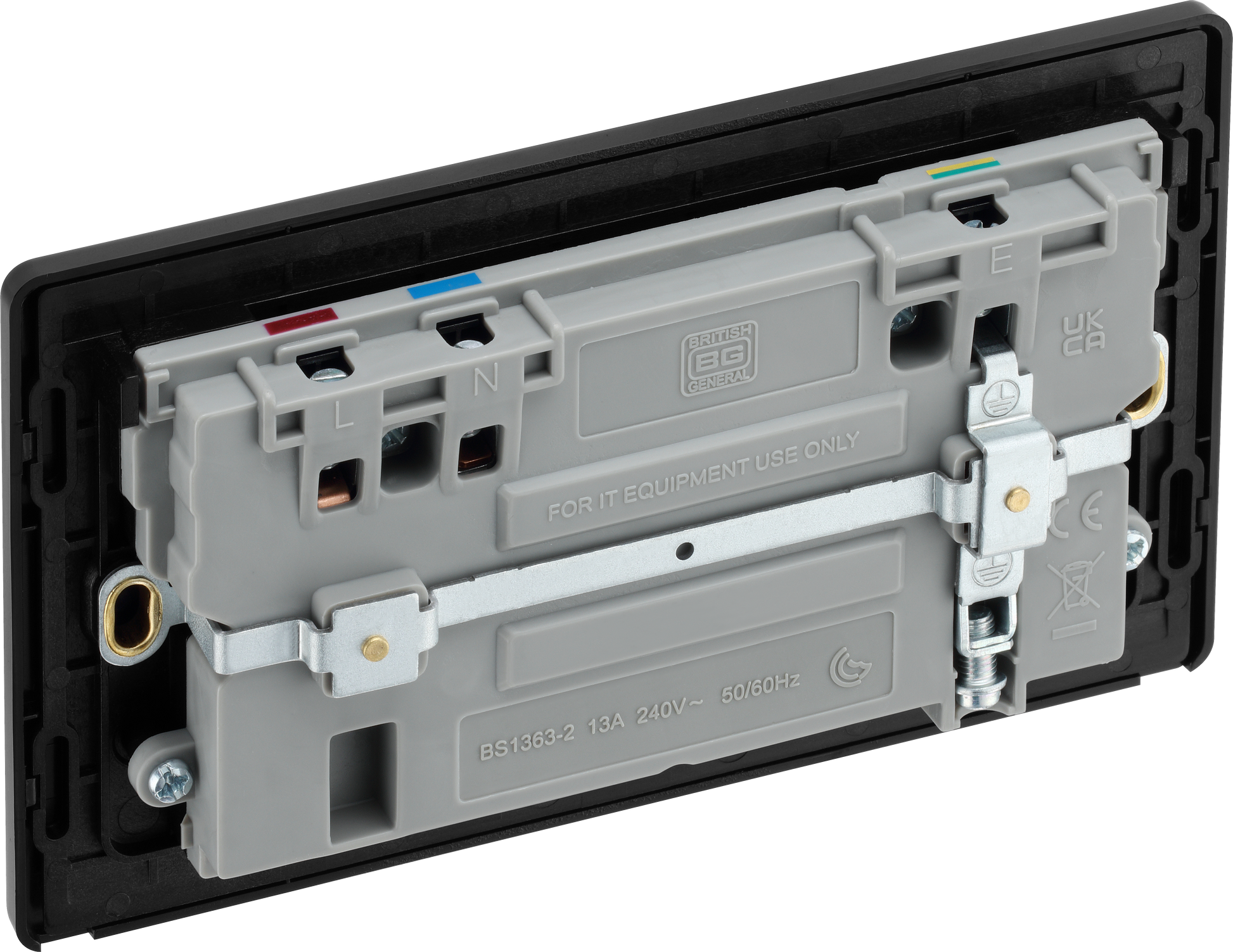

Angled colour coded terminals for easy identification and captive screws to prevent screw loss
-
Delivers 50% charge to mobile phones in just 30 minutes
-
Ideal for charging smartphones and tablets quickly and efficiently
-
Charge up 70% faster than standard 5V charging
-
Twin earth fitted as standard for high integrity circuits
Specification:
PartNum
PCDMB22UAC22B-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
35
Terminal Capacity (mm²)
2 x 6.0mm², 3 x 2.5mm², 3 x 4mm²
Front Plate Insert Colour
Black
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Number of Earth Terminals
2
Terminal Arrangement
Angled Inline
Terminals with Colour Coding Print
Yes
Number of Sockets
2
Number of Switches
2
Screw Caps
No
Switch Type (Ways & Poles)
Single Pole
USB Ports
1 x Type A / 1 x Type C
Fixing Centres (mm)
W-120.6
USB Power (W)
22
USB Output (Type & Rating)
Type A: 5V,3.0A 9V,2.4A 12V,1.5A / Type C: 5V,3.0A 9V,2.4A 12V,1.5A 15V,1.4A 20V,1.0A
Maximum USB Power (W)
22
Operating Voltage (V)
220-240
Dimensions:
Product Height (mm)
86
Product Width (mm)
146
Product Depth (mm)
32
Minimum Box Depth (mm)
35
Front Plate Material Thickness (mm)
0.8
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
10
