This Evolve Matt Black dual voltage shaver socket from British General is suitable for use with 240V and 115V shavers and electric toothbrushes. \nThe socket has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
Dual volt 115 / 240 V
-
Easy to install supplied with fixing screws and installation instructions
-
Suitable for shavers and electric toothbrushes
-
Captive backed out terminal screws for fast installation and to prevent screw loss
-

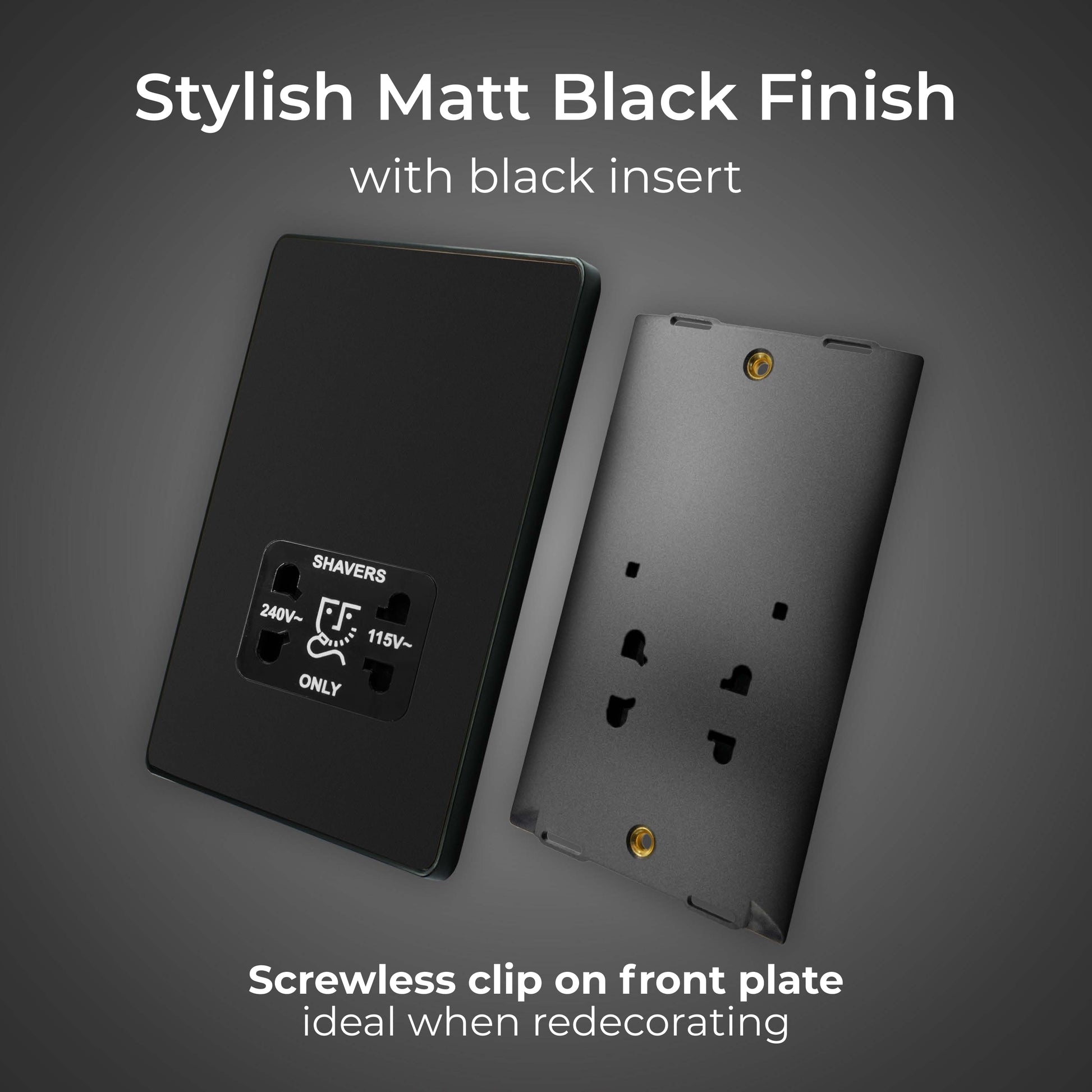

Screwless front plate clips on and off easily ideal for redecorating
-
Minimum mounting box depth 47mm
-
Certified to BS EN 61558-1 and BS EN 61558-2-5
Specifications:
PartNum
PCDMB20B-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
47
Terminal Capacity (mm²)
2 x 4mm² , 3 x 2.5mm²
Front Plate Insert Colour
Black
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Number of Earth Terminals
1
Terminal Arrangement
Inline
Terminals with Colour Coding Print
Yes
Number of Sockets
2
Socket Type
Z - 2P UK Shaver
Number of Switches
0
Screw Caps
No
Switch Type (Ways & Poles)
N/A
Fixing Centres (mm)
H-120.6
IP Rating
IP41
Operating Voltage (V)
220-240
Dimensions:
Product Height (mm)
146
Product Width (mm)
86
Product Depth (mm)
46.6
Minimum Box Depth (mm)
47
Front Plate Material Thickness (mm)
1.2
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
