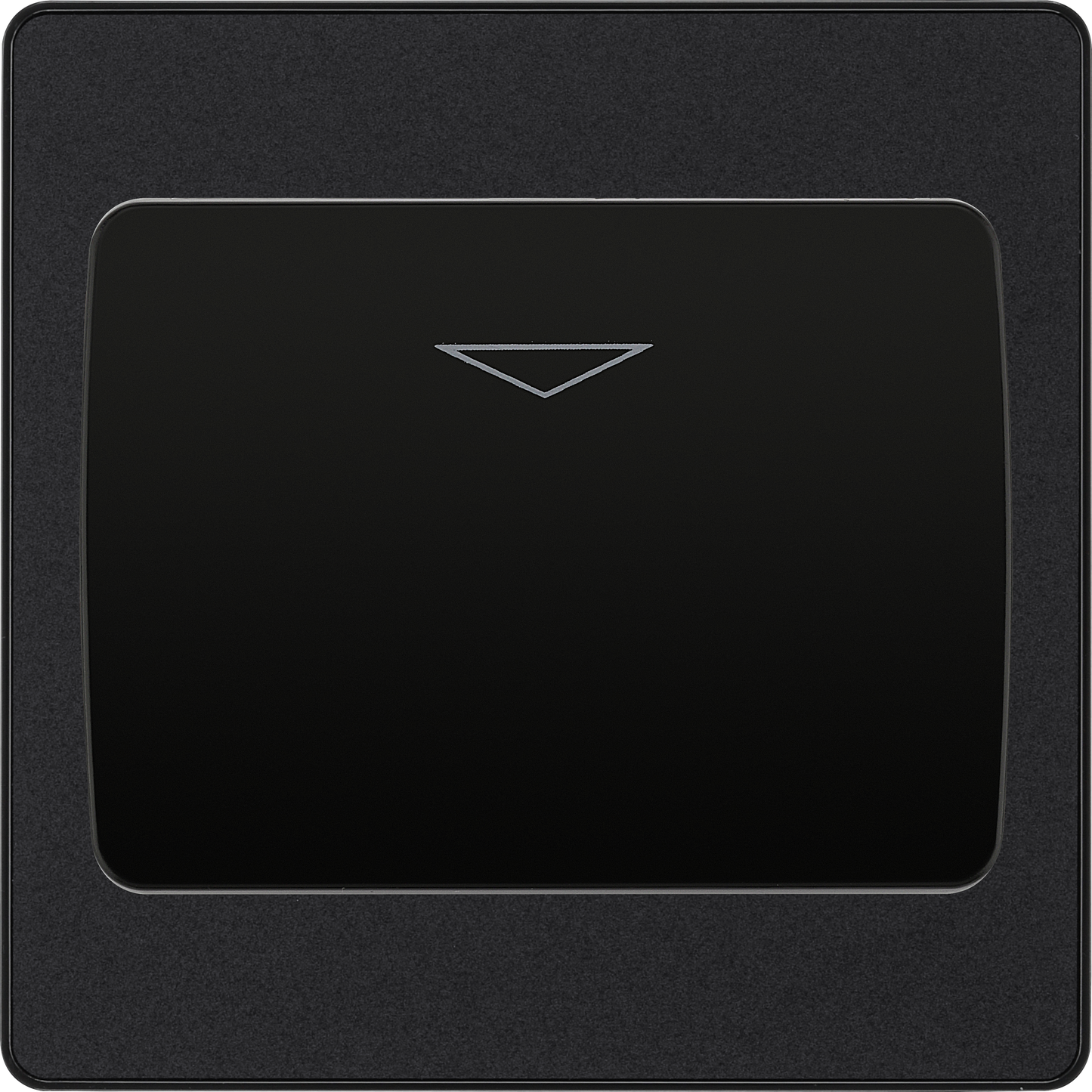

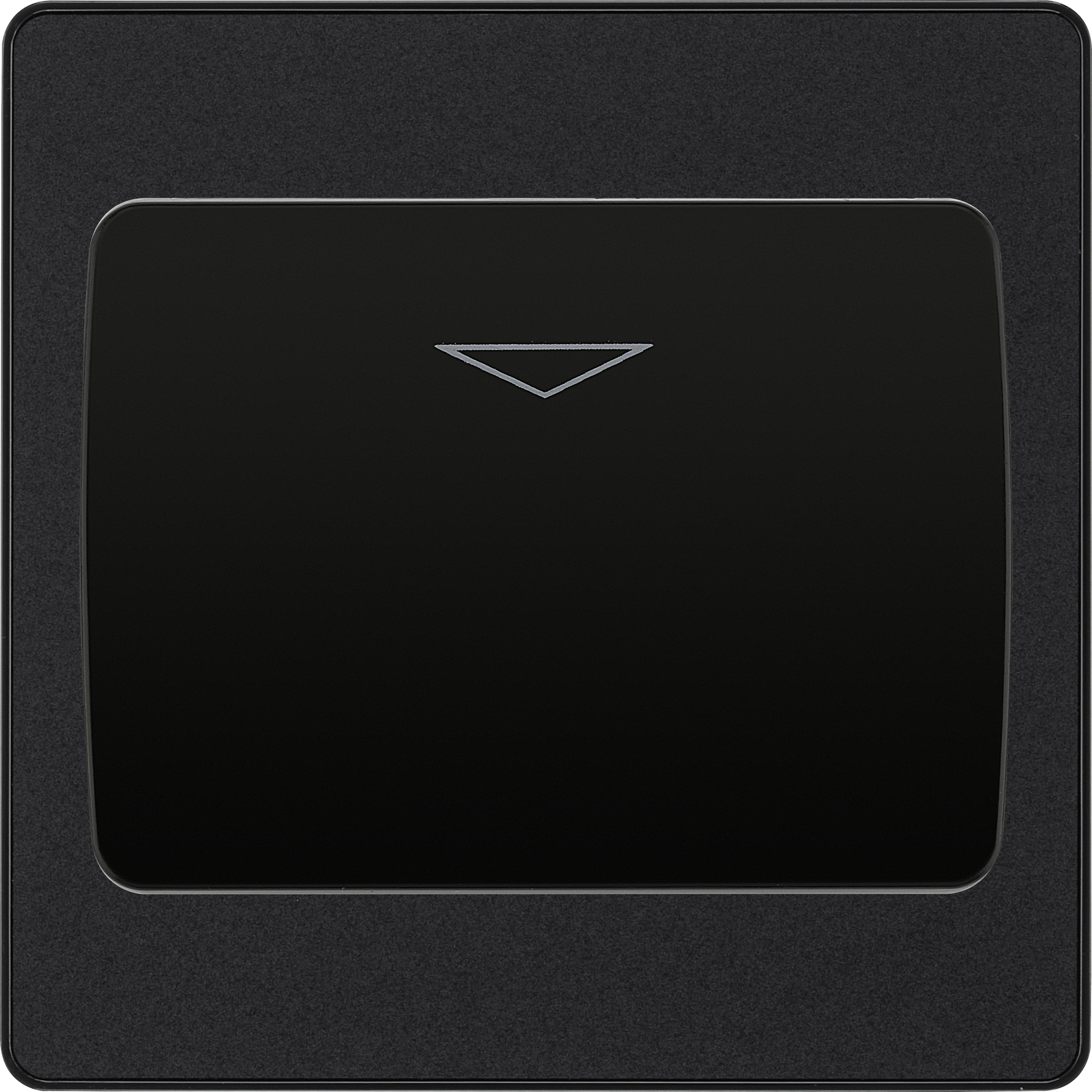

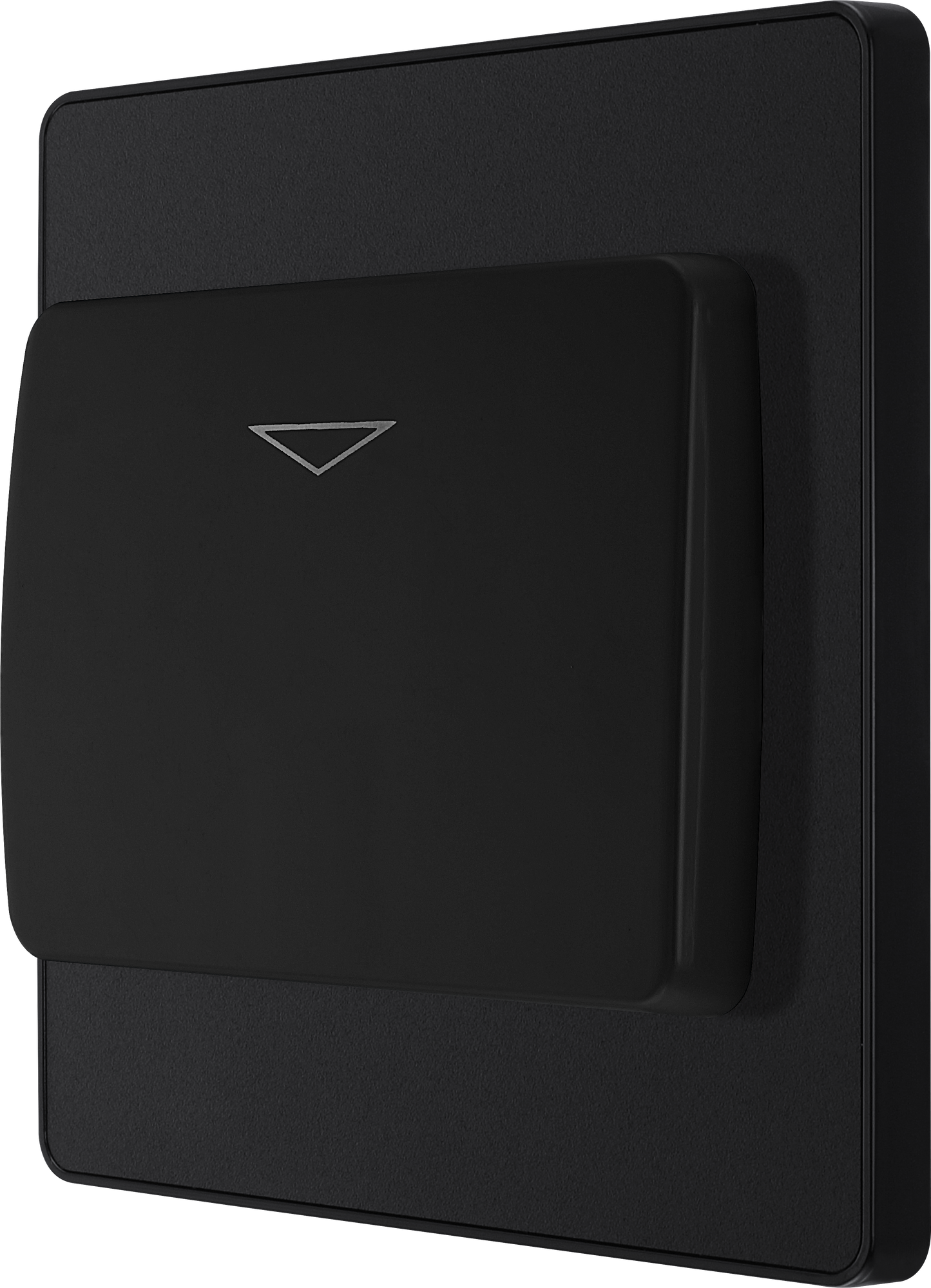

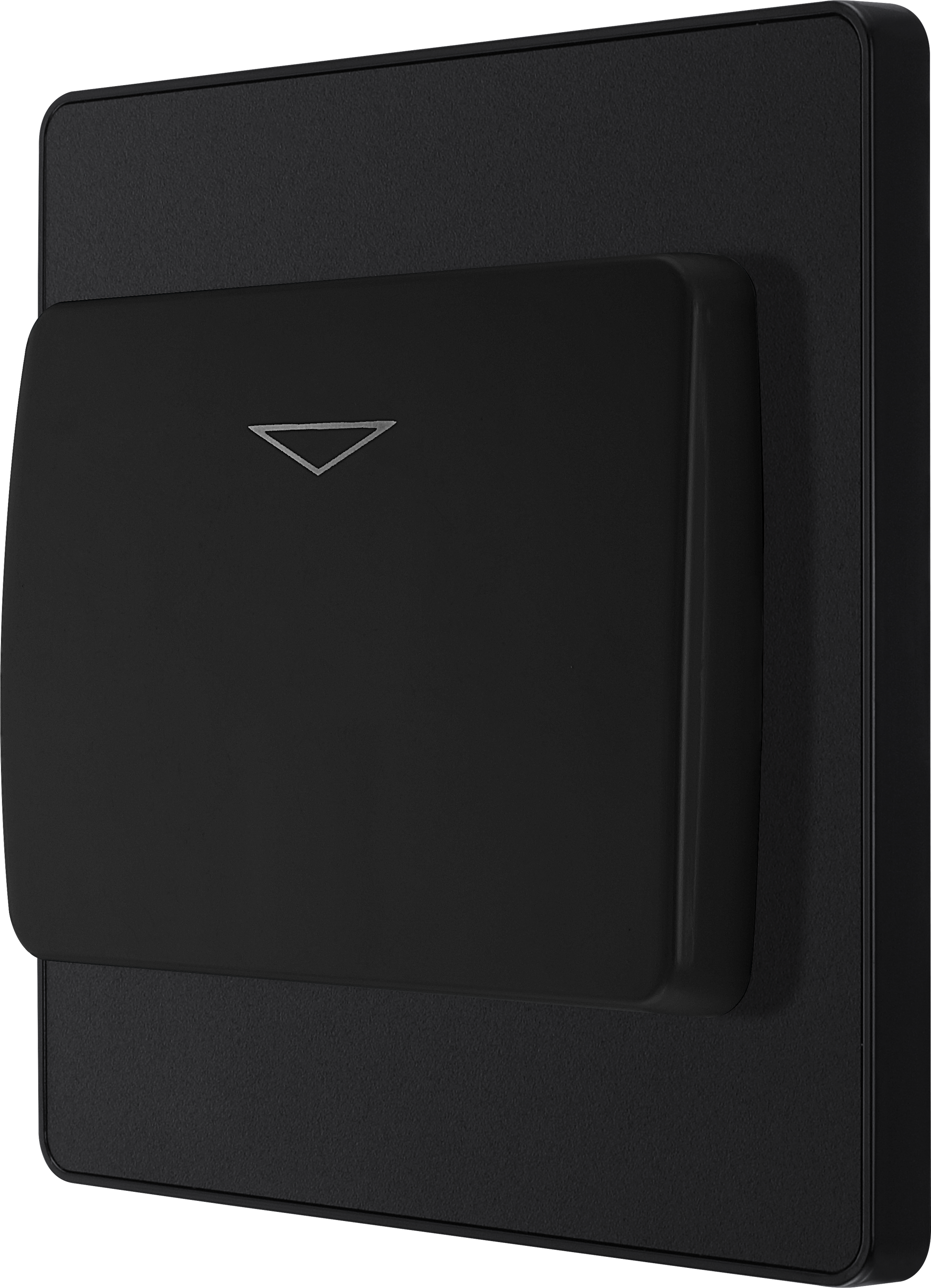

This 16A hotel key card switch from British General is designed to save energy and improve safety in hotel rooms and will activate the rooms electricity supply when a key card is inserted. The 30 second power-off delay will make ensure the lights don't go out as soon as the card is removed. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
16A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Power to the room will active when a key card inserted so the room is only powered when occupied
-
30 second power-off delay prevents users being plunged in to darkness when leaving
-
Locator LED ideal for night operation
-

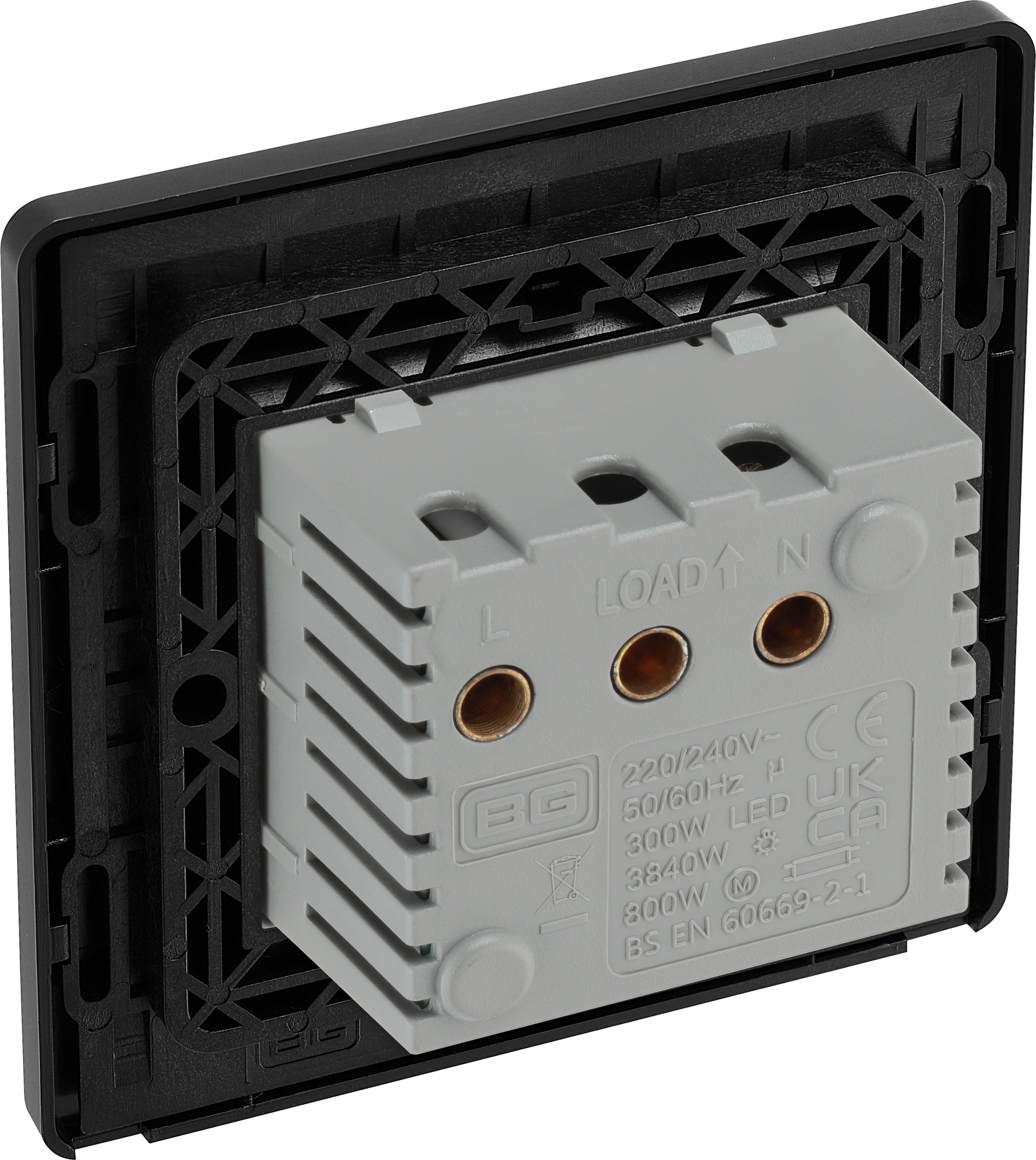

In-line terminals
-
Captive screws prevent screw loss
-
Screwless front plate clips on and off easily
-
Supplied as kit of Euro module components
Specification:
PartNum
PCDMBKYCSB-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Terminal Capacity (mm²)
4 x 1.0mm², 2 x 2.5mm², 1 x 4mm²
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Terminal Arrangement
Inline
Terminals with Colour Coding Print
No
Number of Switches
1
Screw Caps
No
Switch Style Type
Key
Switch Type (Ways & Poles)
N/A
Switch Location Position
Wall
Fixing Centres (mm)
W-60.3
IP Rating
IP20
Operating Voltage (V)
220-240
Switch State
On/Off
Dimensions:
Product Height (mm)
86
Product Width (mm)
86
Product Depth (mm)
47
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
