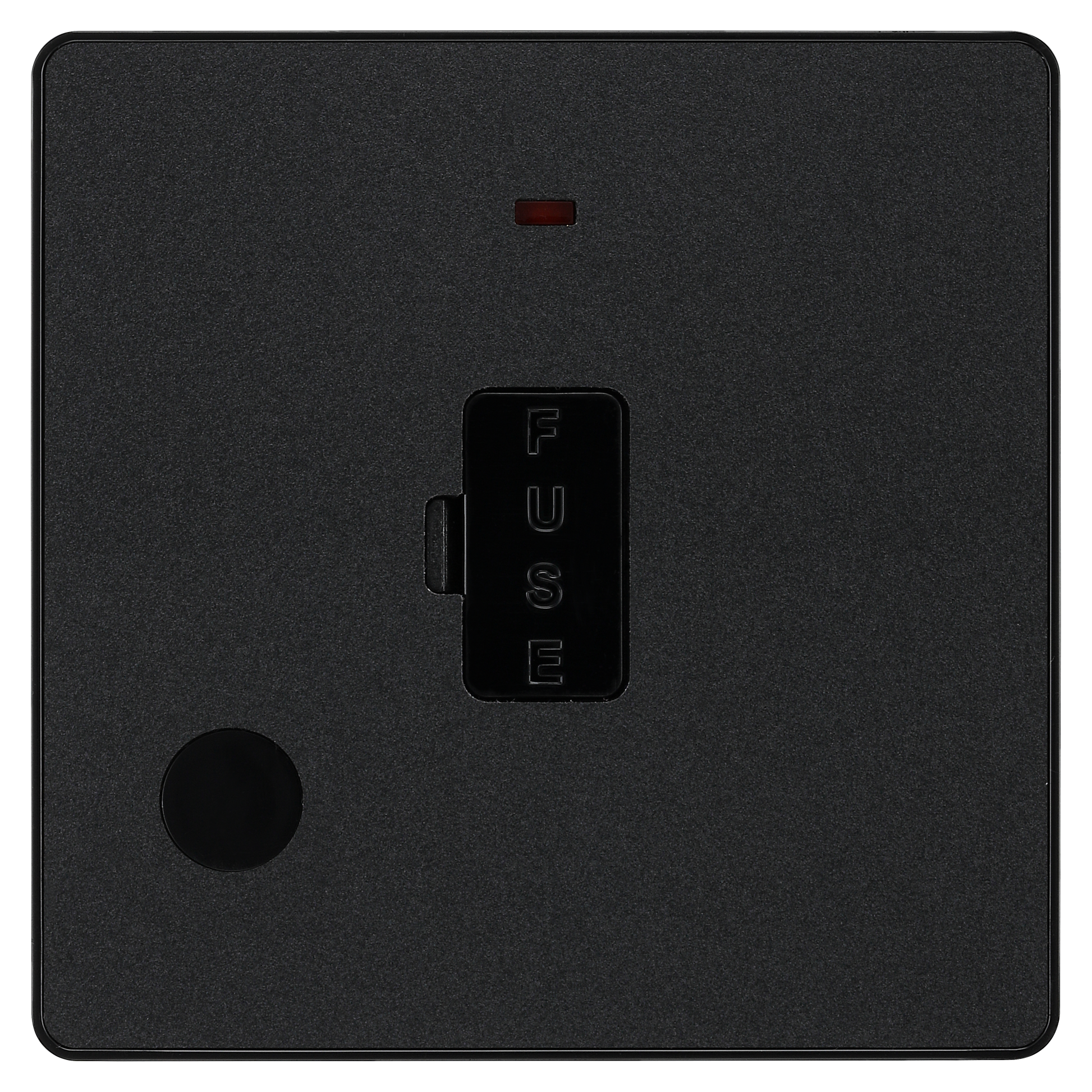

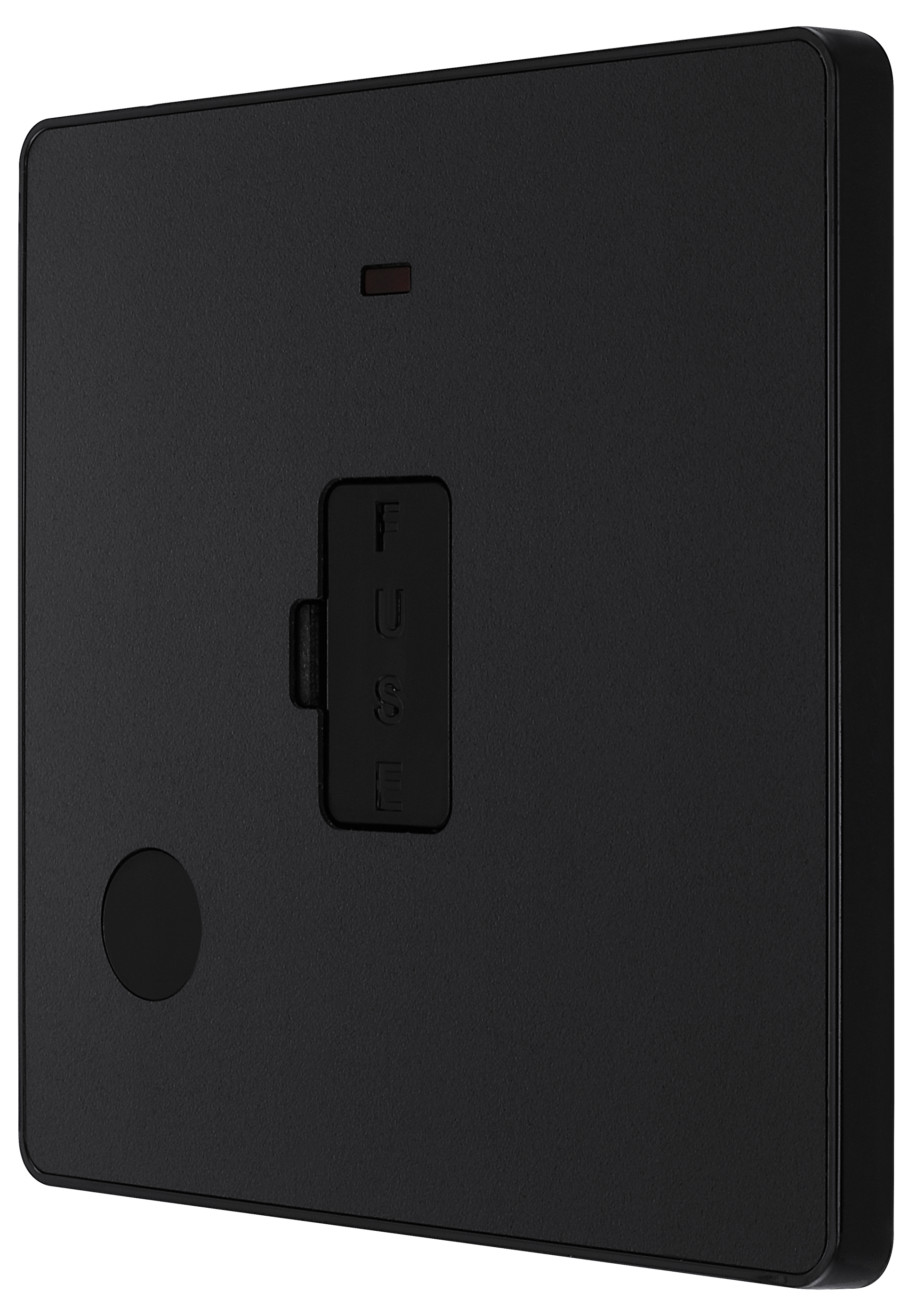

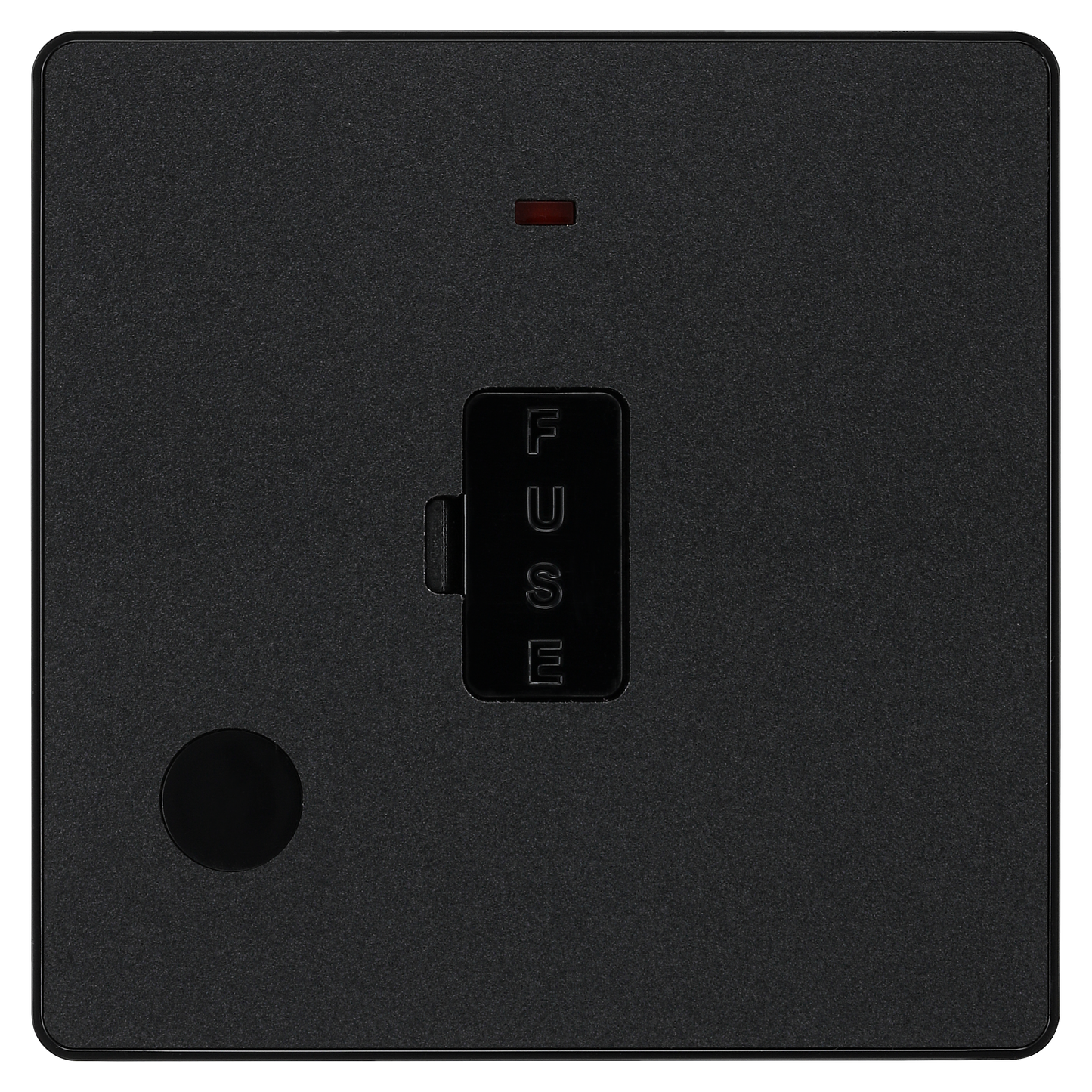

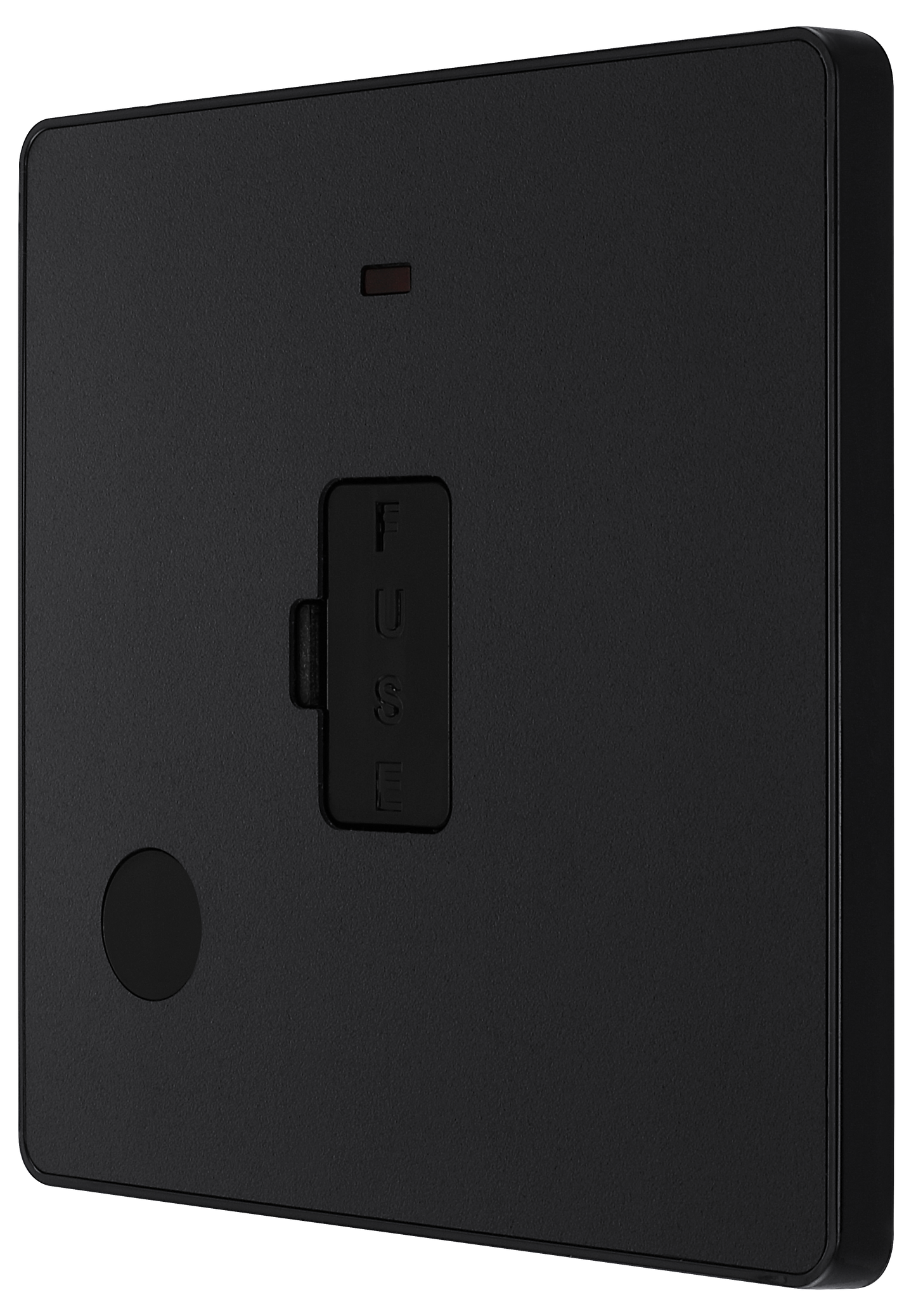

This Evolve Matt Black 13A fused and unswitched connection unit from British General provides an outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances. This FCU has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
13A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Ideal for spur circuits and hard wired power appliances
-

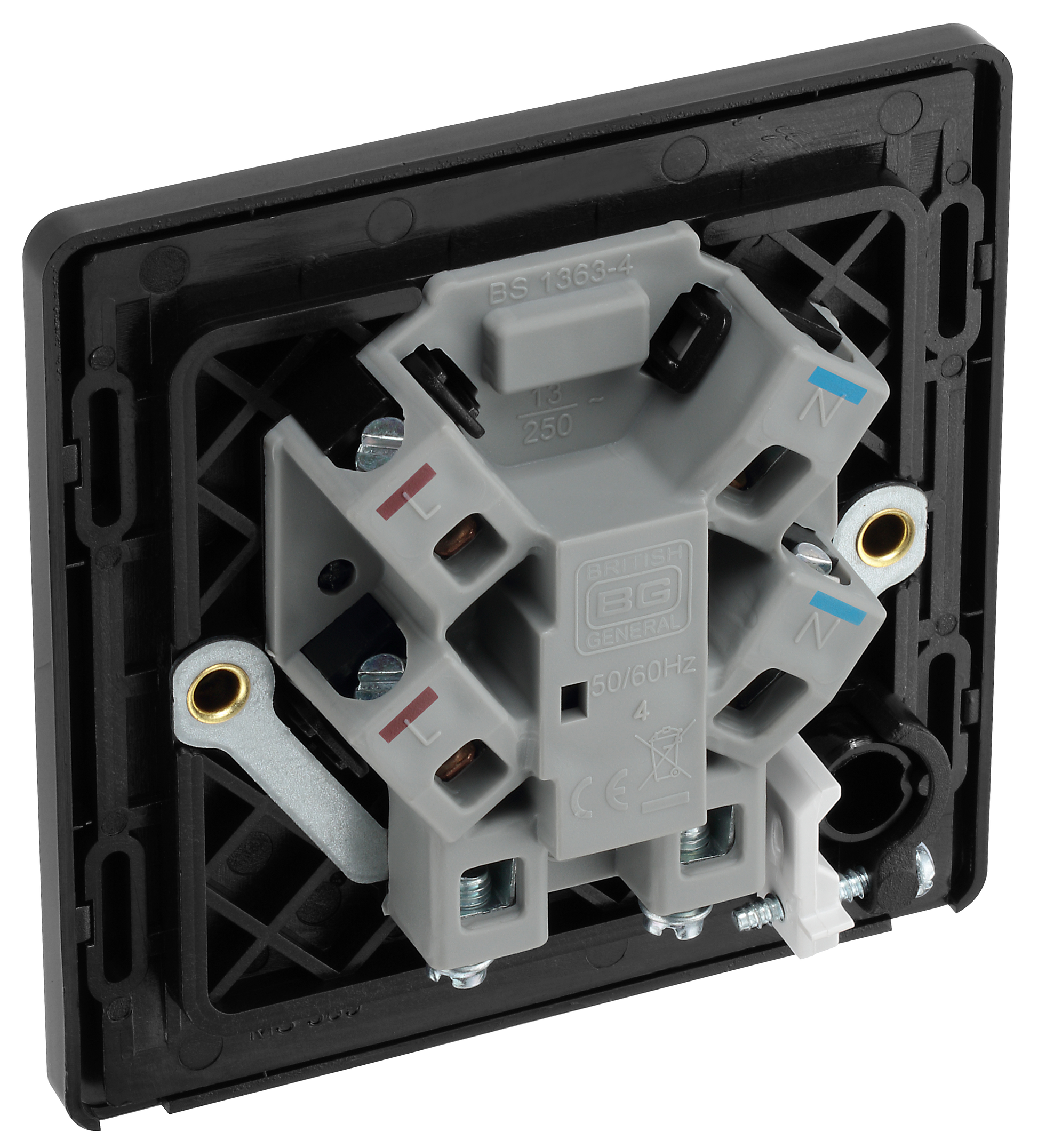

Colour coded terminals for easy identification
-
Captive screws prevent screw loss
-
Flush LED power indicator
-
Integrated flex outlet
-
Screwless front plate clips on and off easily ideal for redecorating
-
Minimum mounting box depth 35mm
Specification:
PartNum
PCDMB54B-01
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
General Colour
Matt Black
Fixing Screws Supplied
Yes
Terminal Arrangement
Angled
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Number of Switches
0
Screw Caps
No
Switch Style Type
N/A
Switch Type (Ways & Poles)
N/A
Fixing Centres (mm)
W-60.3
Minimum Box Depth (mm)
35
Operating Voltage (V)
250
Terminal Capacity (mm²)
3 x 2.5mm², 3 x 4mm², 1 x 6mm²
Dimensions:
Product Height (mm)
86
Product Width (mm)
86
Product Depth (mm)
24
Minimum Box Depth (mm)
35
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
