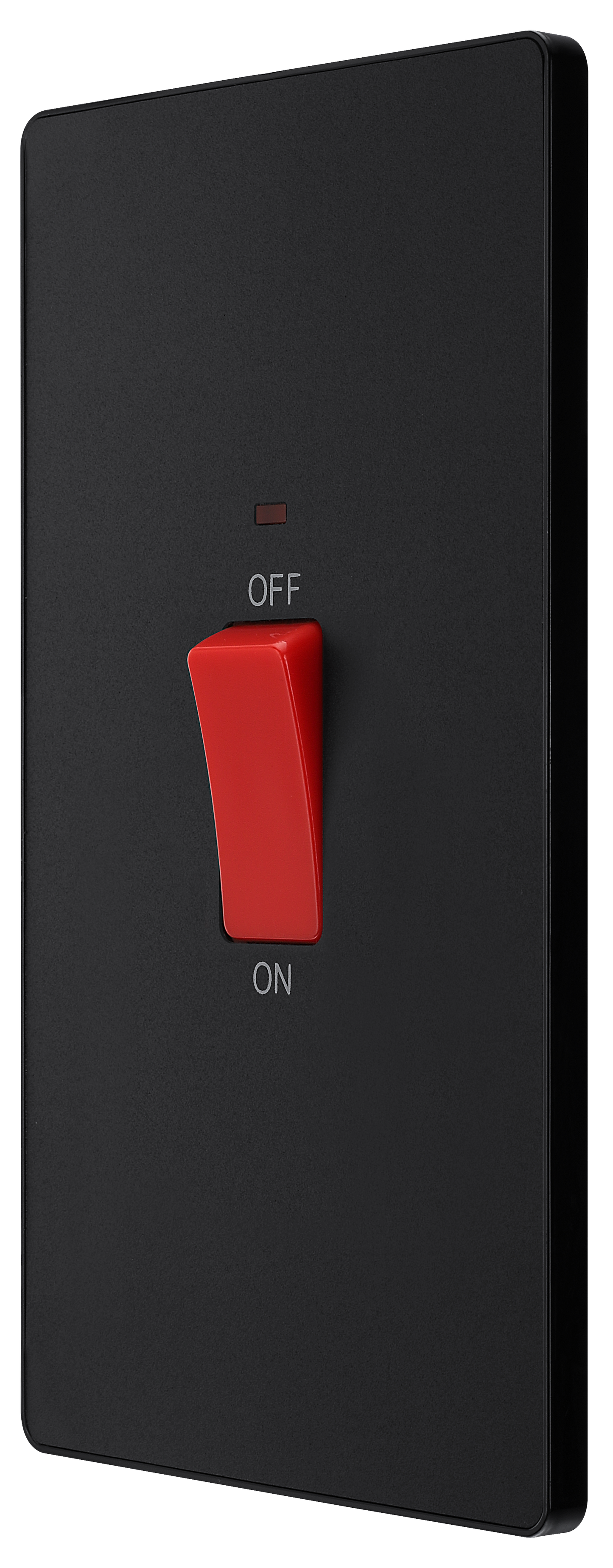

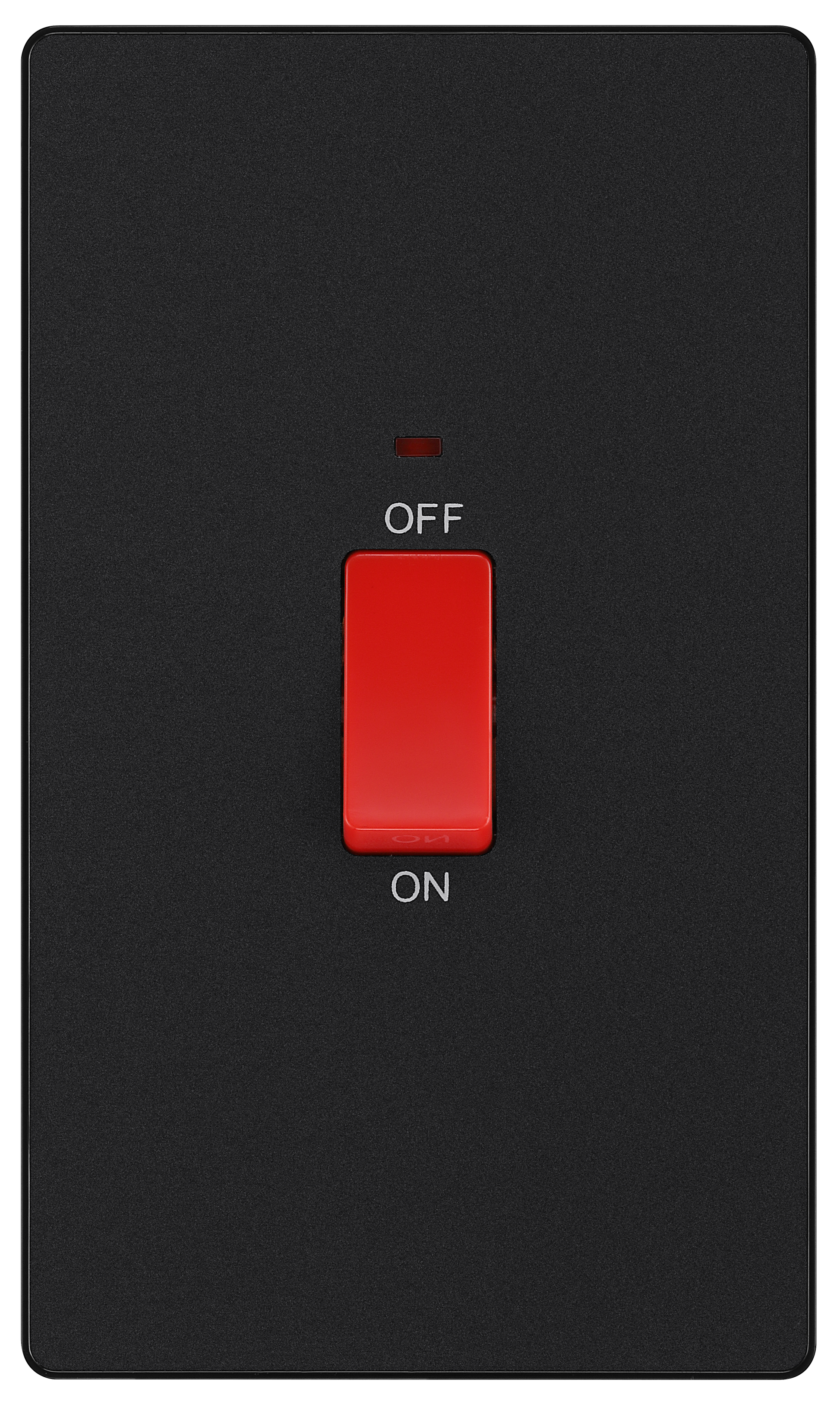

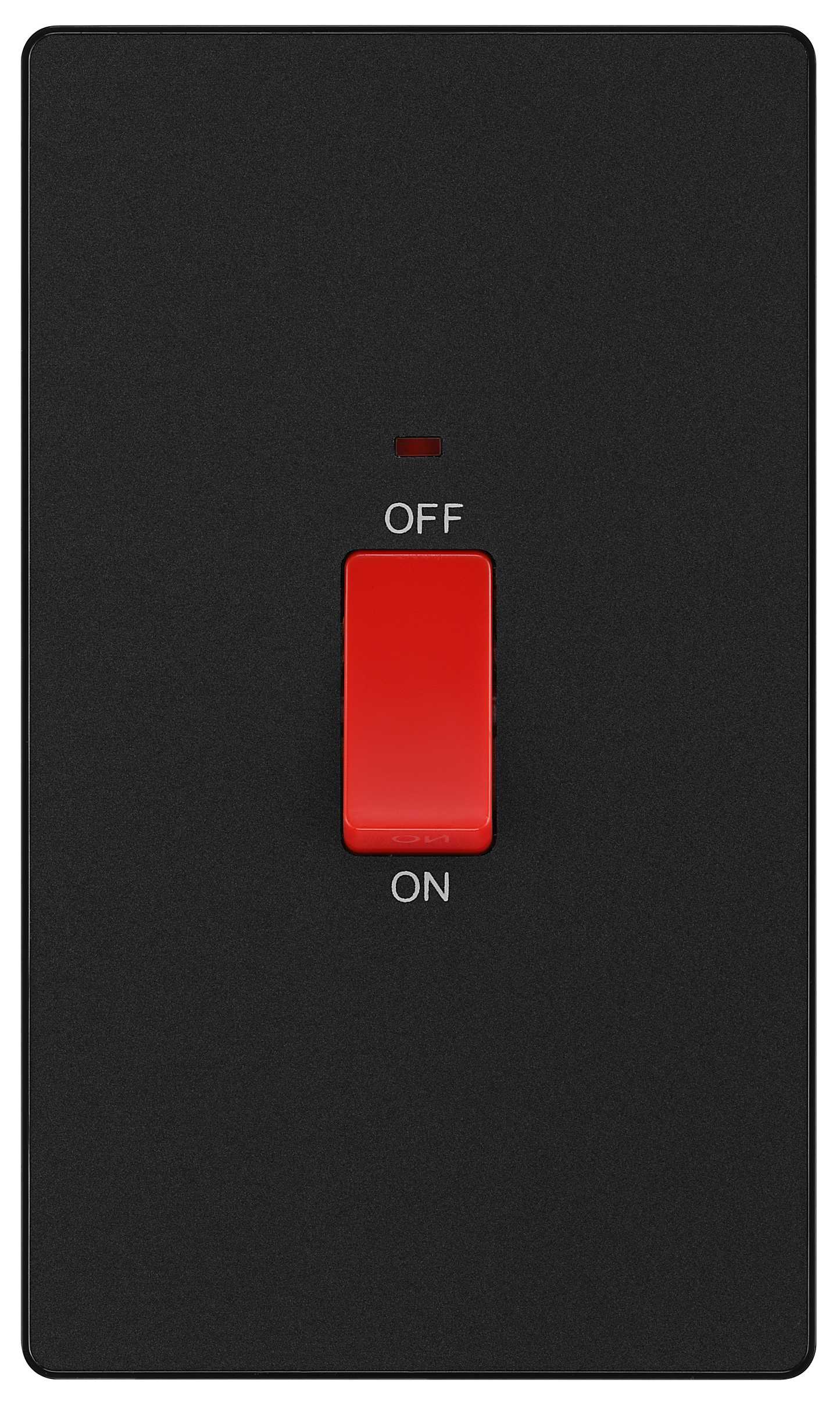

This Evolve Matt Black 45A double pole switch with indicator from British General is ideal for use with cookers and has a large mounting plate measuring 146mm high x 86mm wide. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
45A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Ideal for cookers and ovens
-
Double Pole switching for the peace of mind of a safer installation
-
Twin earth fitted as standard for high integrity circuits
-

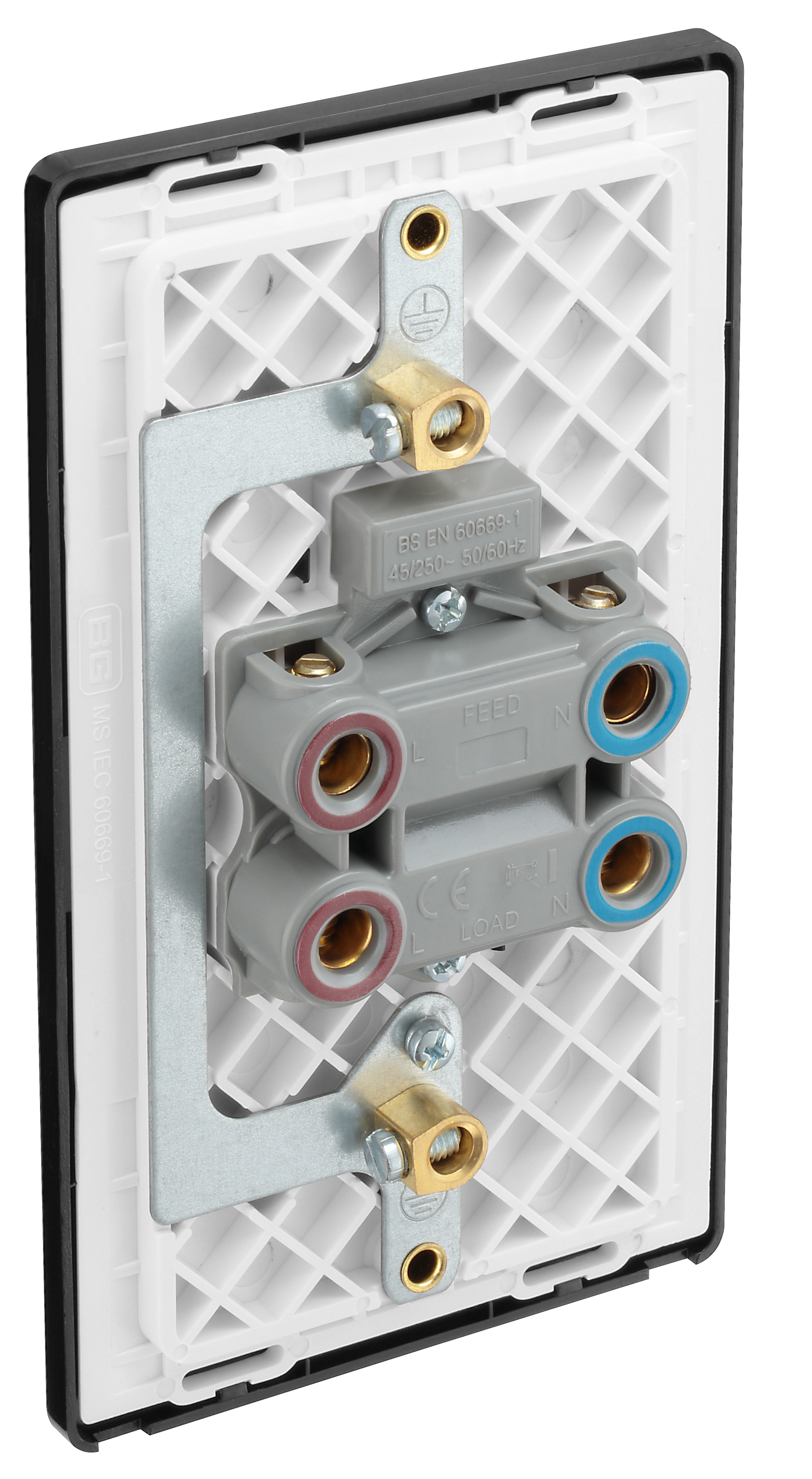

Colour coded terminals for ease of identification
-
Flush LED power indicator
-

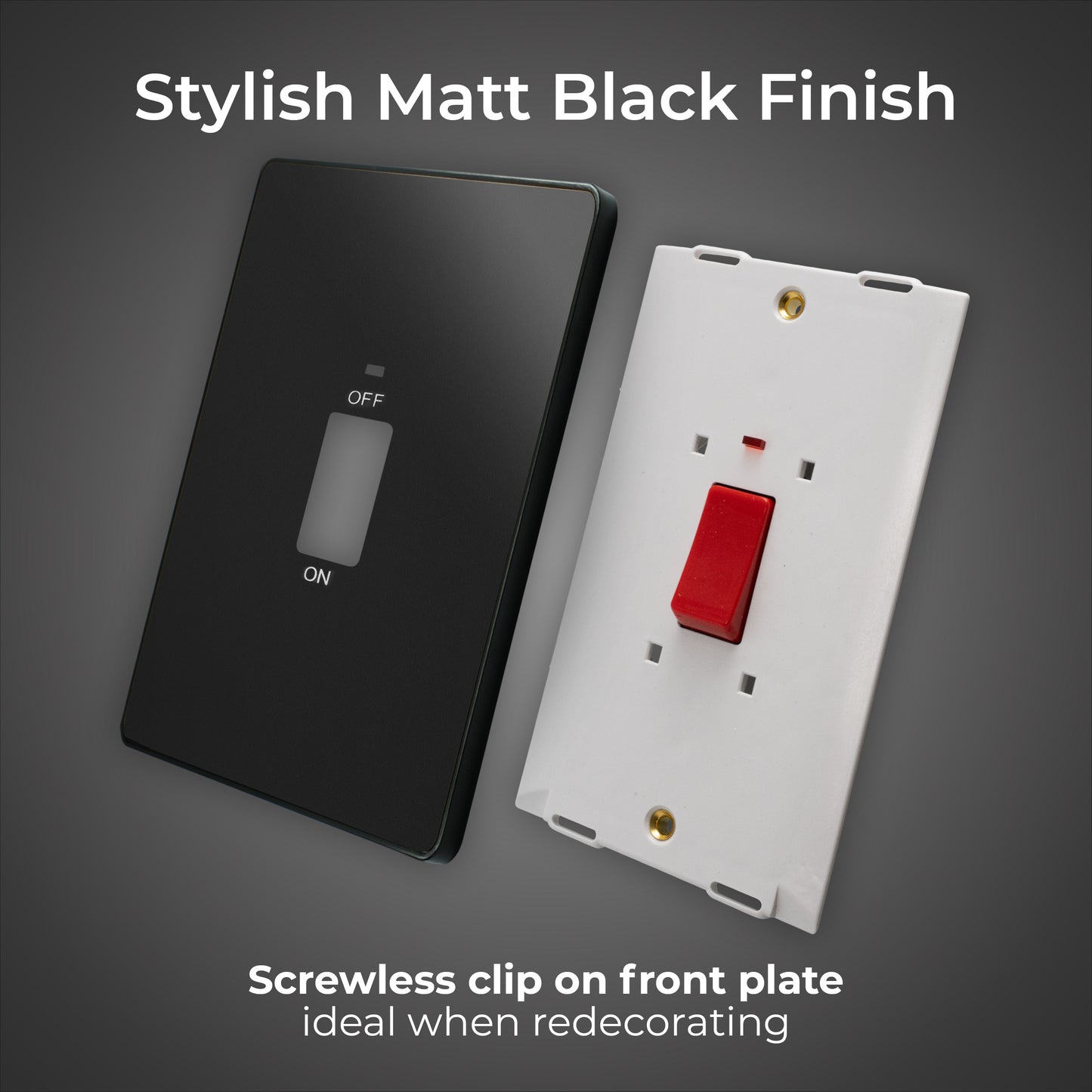

Screwless front plate clips on and off easily ideal for redecorating
-
Captive screws prevent screw loss
Specifications:
PartNum
PCDMB72B-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
47
Terminal Capacity (mm²)
1 x 16mm², 3 x 6.0mm², 4 x 4mm²
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Terminal Arrangement
Inline
Terminals with Colour Coding Print
Yes
Number of Switches
1
Screw Caps
No
Switch Style Type
Rocker
Switch Type (Ways & Poles)
Double Pole
Switch Location Position
Wall
Fixing Centres (mm)
W-60.3
IP Rating
IP20
Operating Voltage (V)
220-240
Switch State
On/Off
Dimensions:
Product Height (mm)
146
Product Width (mm)
86

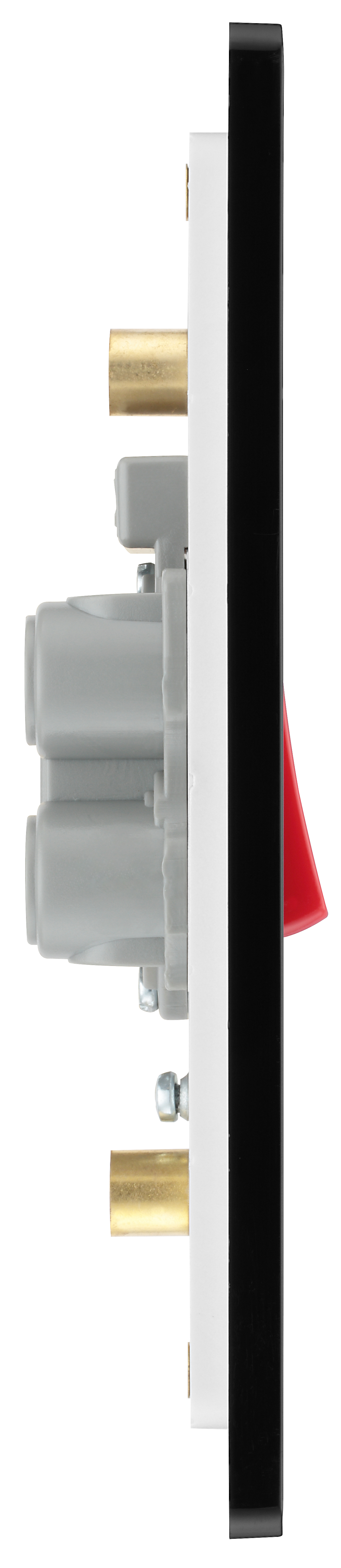

Product Depth (mm)
30
Minimum Box Depth (mm)
47
Front Plate Material Thickness (mm)
N/A
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
