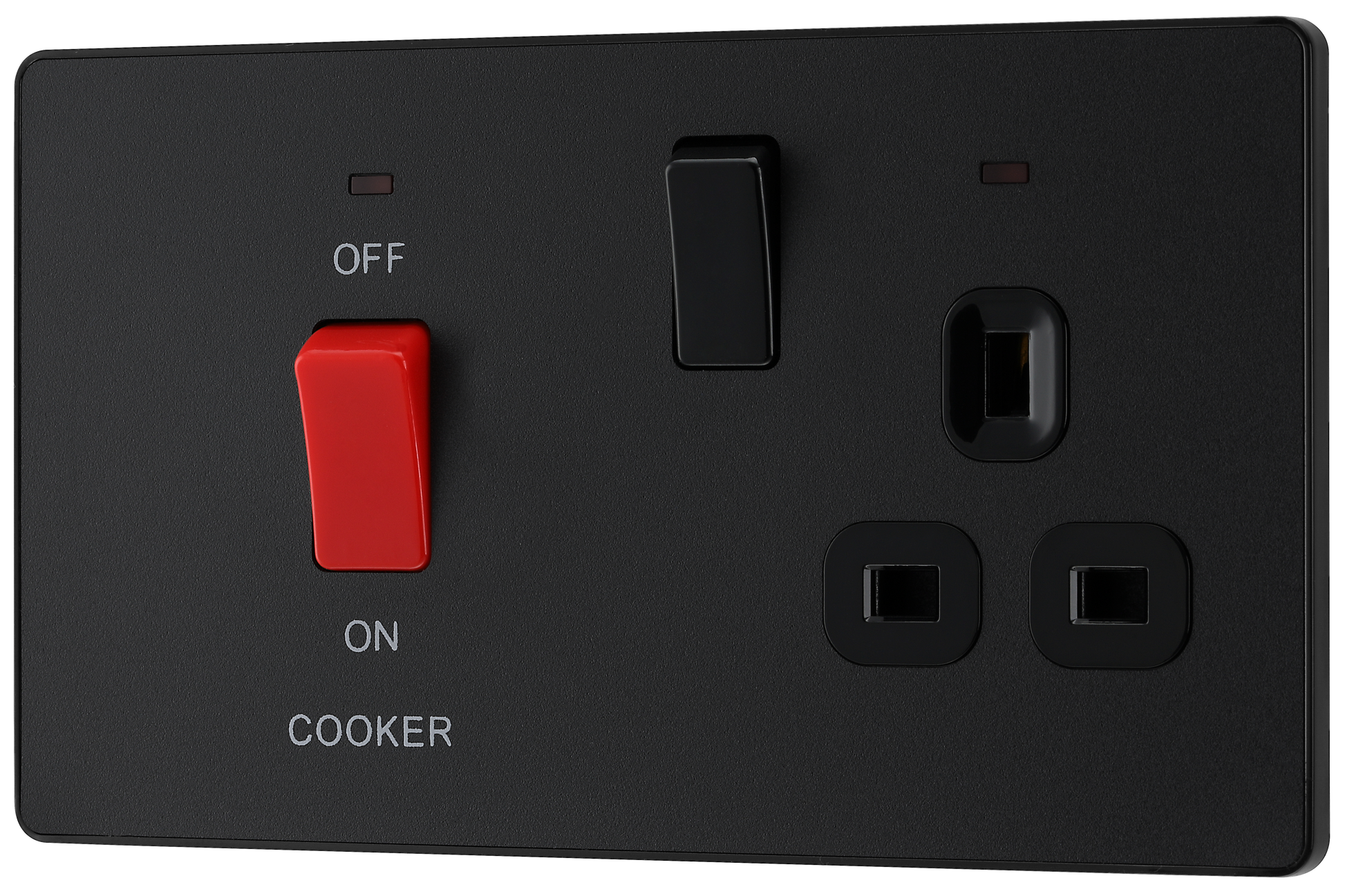

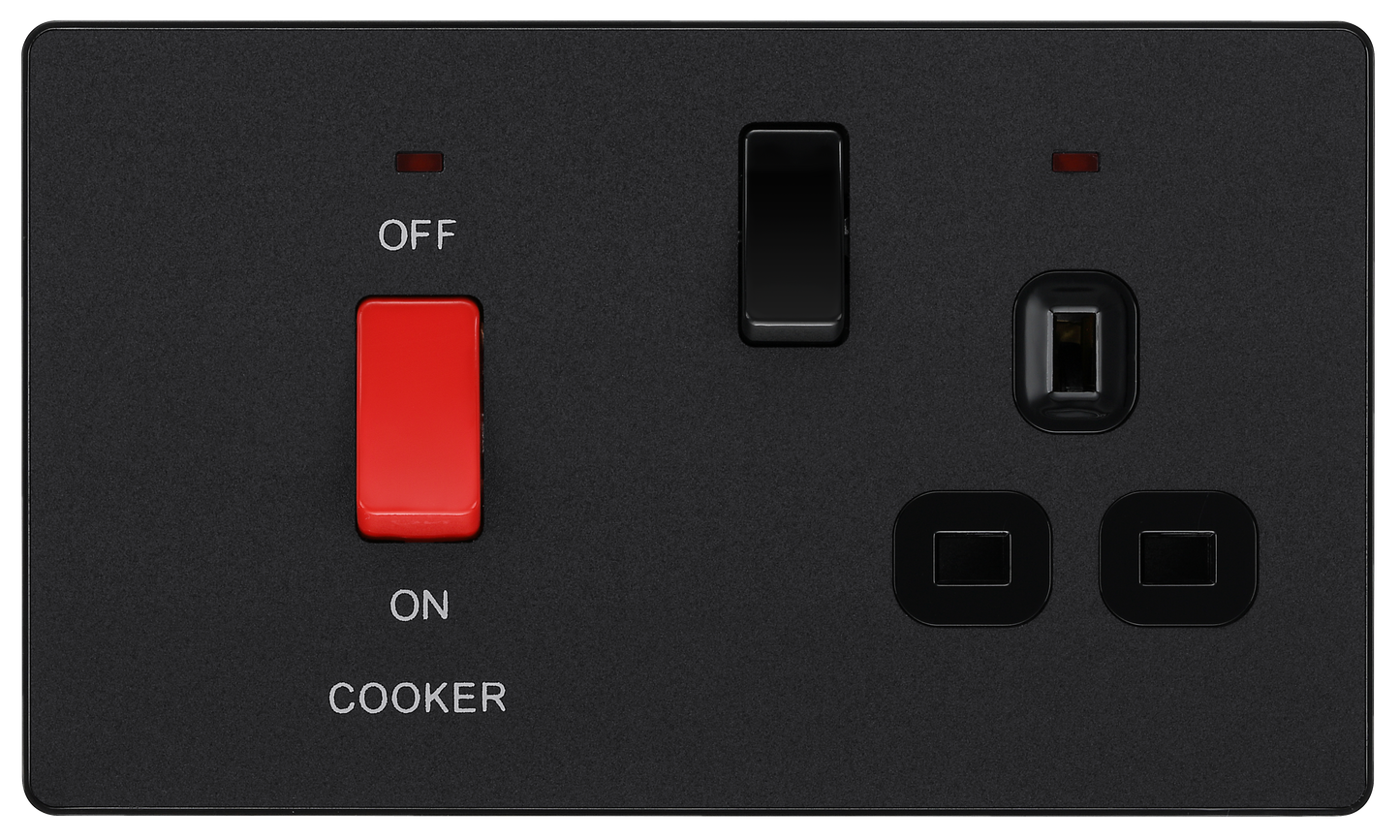

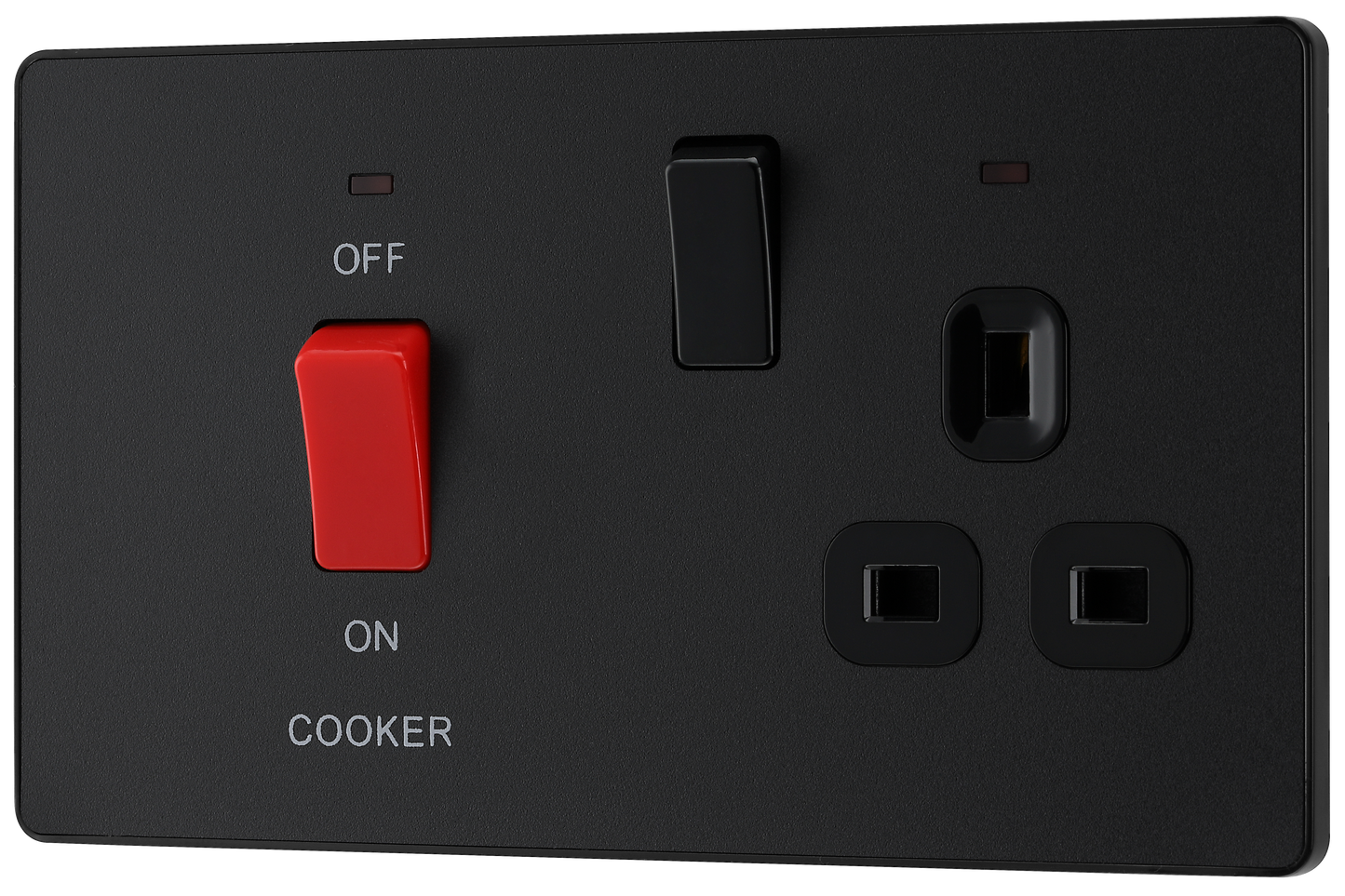

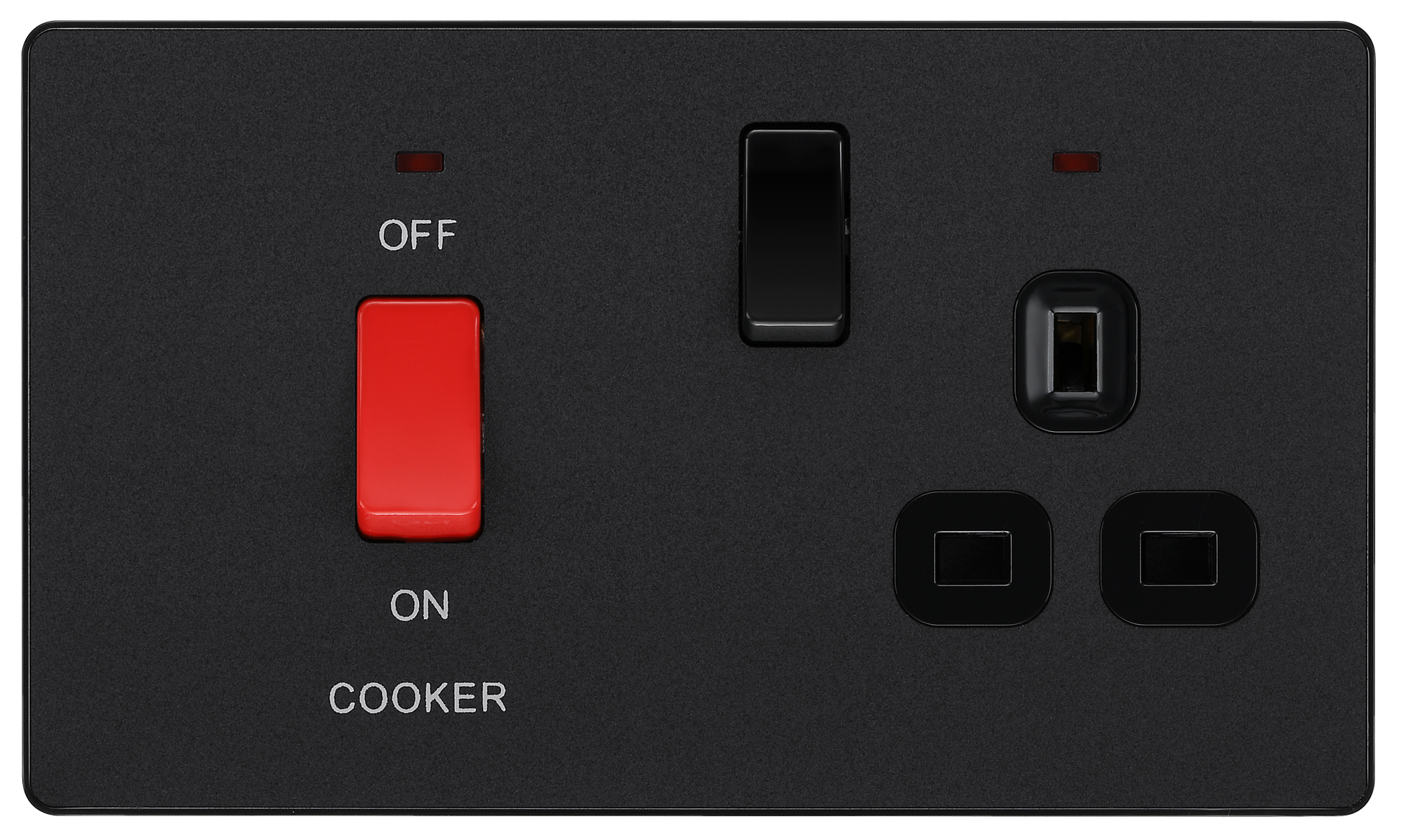

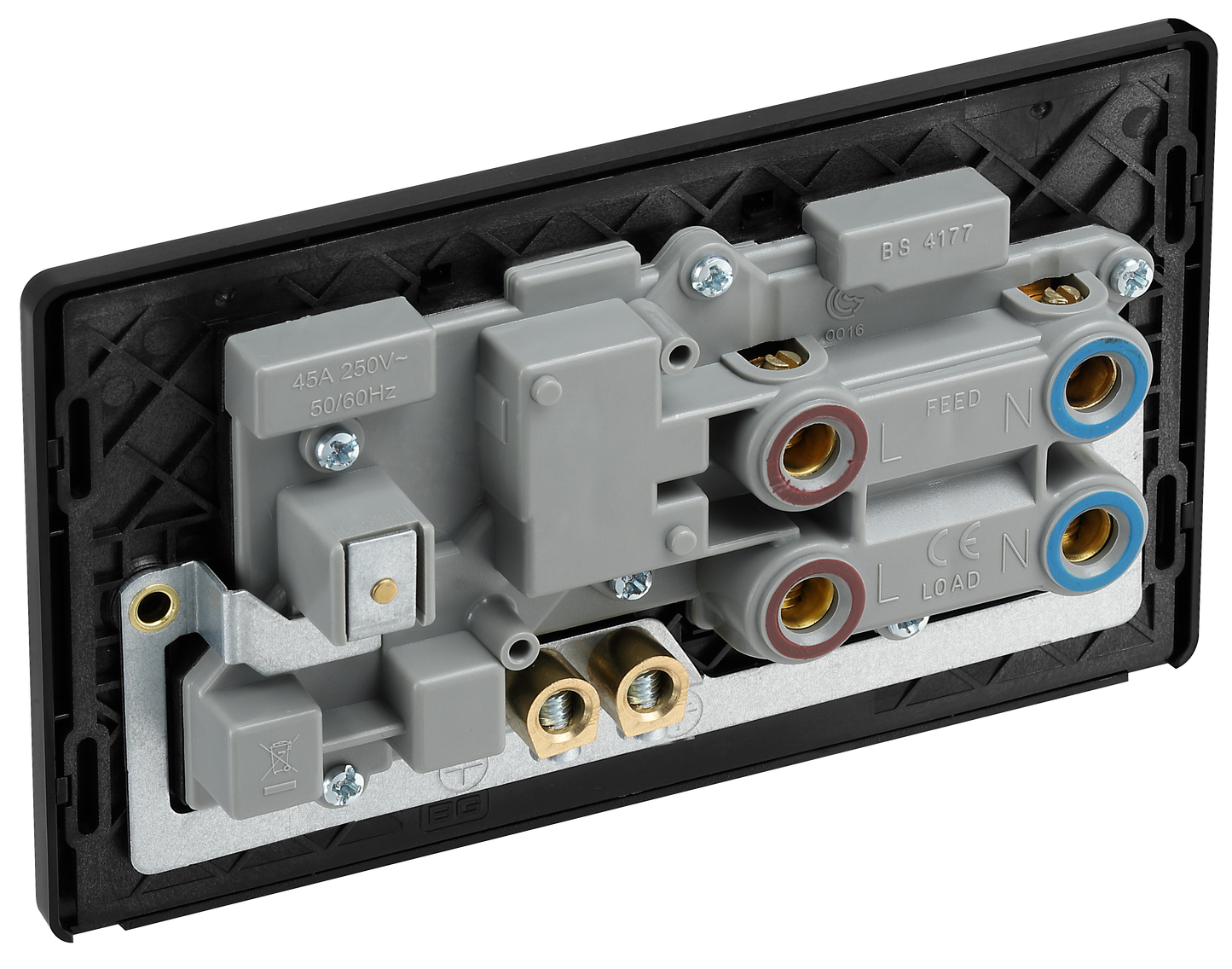

This Evolve Matt Black 45A cooker control unit from British General includes a 13A socket for an additional appliance outlet, and has flush LED indicators above the socket and switch. This CCU has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
45A and 13A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
13A socket for additional appliance outlet
-
Double Pole switching for the peace of mind of a safer installation
-
Twin earth fitted as standard for high integrity circuits
-
Colour coded terminals for ease of identification
-
Flush LED power Indicator above socket and switch
-
Screwless front plate clips on and off easily ideal for redecorating
-
Captive screws prevent screw loss
-
Minimum mounting box depth 47mm
Specification:
PartNum
PCDMB70B-01
Front Plate Insert Colour
Black
Anti-microbial Property
No
General Colour
Matt Black
Fixing Screws Supplied
Yes
Number of Earth Terminals
2

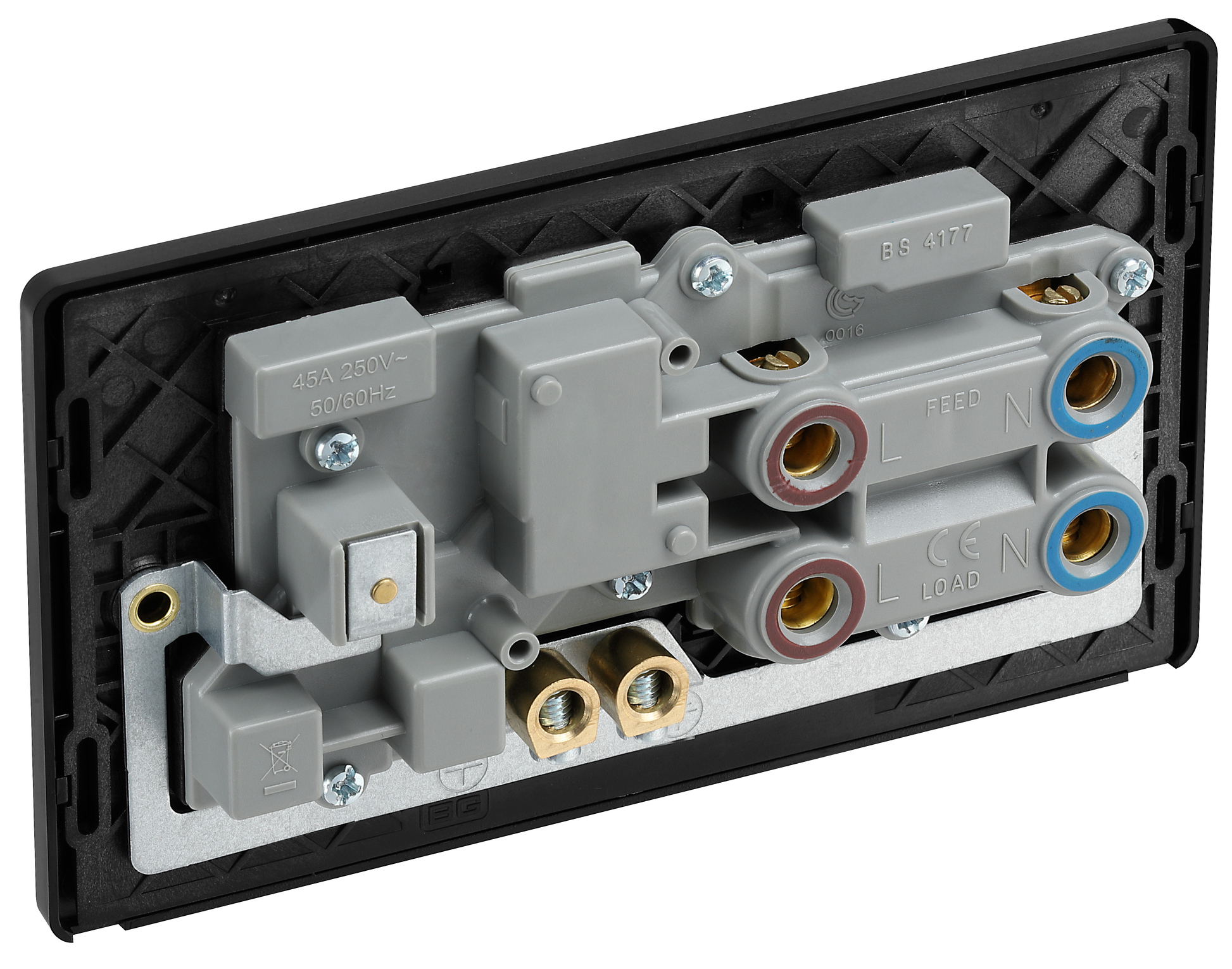

Terminal Arrangement
Angled
Terminals with Colour Coding Print
Yes
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Number of Sockets
1
Number of Switches
2
Screw Caps
No
Main Power Indicator
Yes
Switch Type (Ways & Poles)
Double Pole
Fixing Centres (mm)
W-120.6
Minimum Box Depth (mm)
47
Operating Voltage (V)
220-240
Terminal Capacity (mm²)
1 x 16mm², 3 x 6.0mm², 4 x 4mm²
Dimensions:
Product Height (mm)
86
Product Width (mm)
146

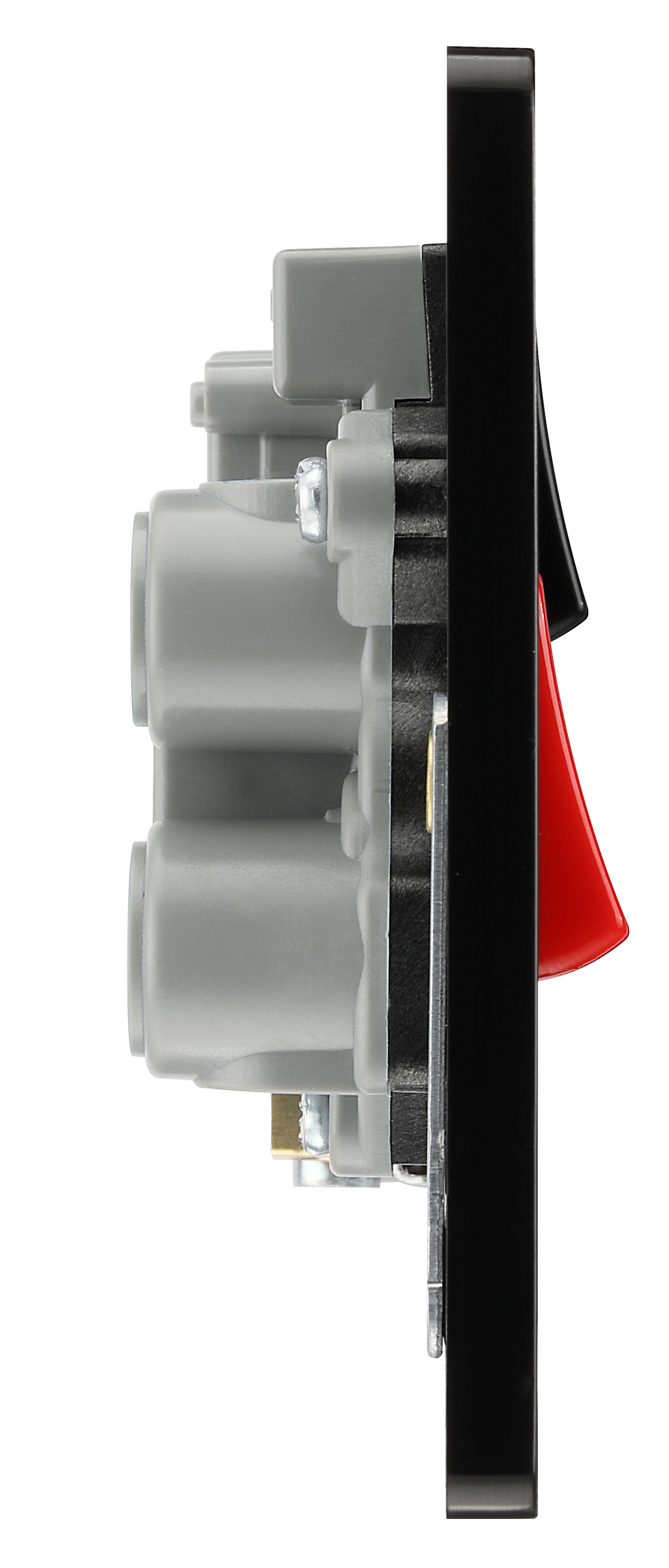

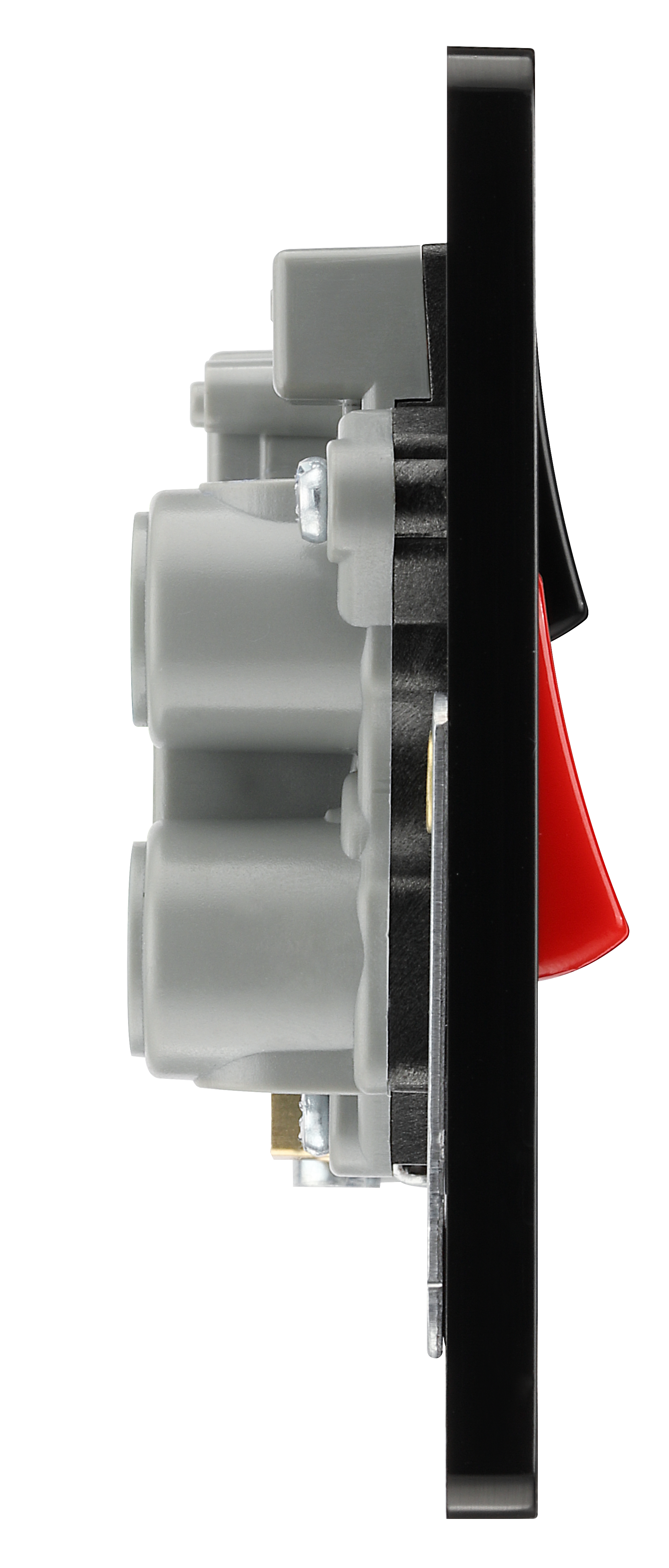

Product Depth (mm)
31
Minimum Box Depth (mm)
47
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
