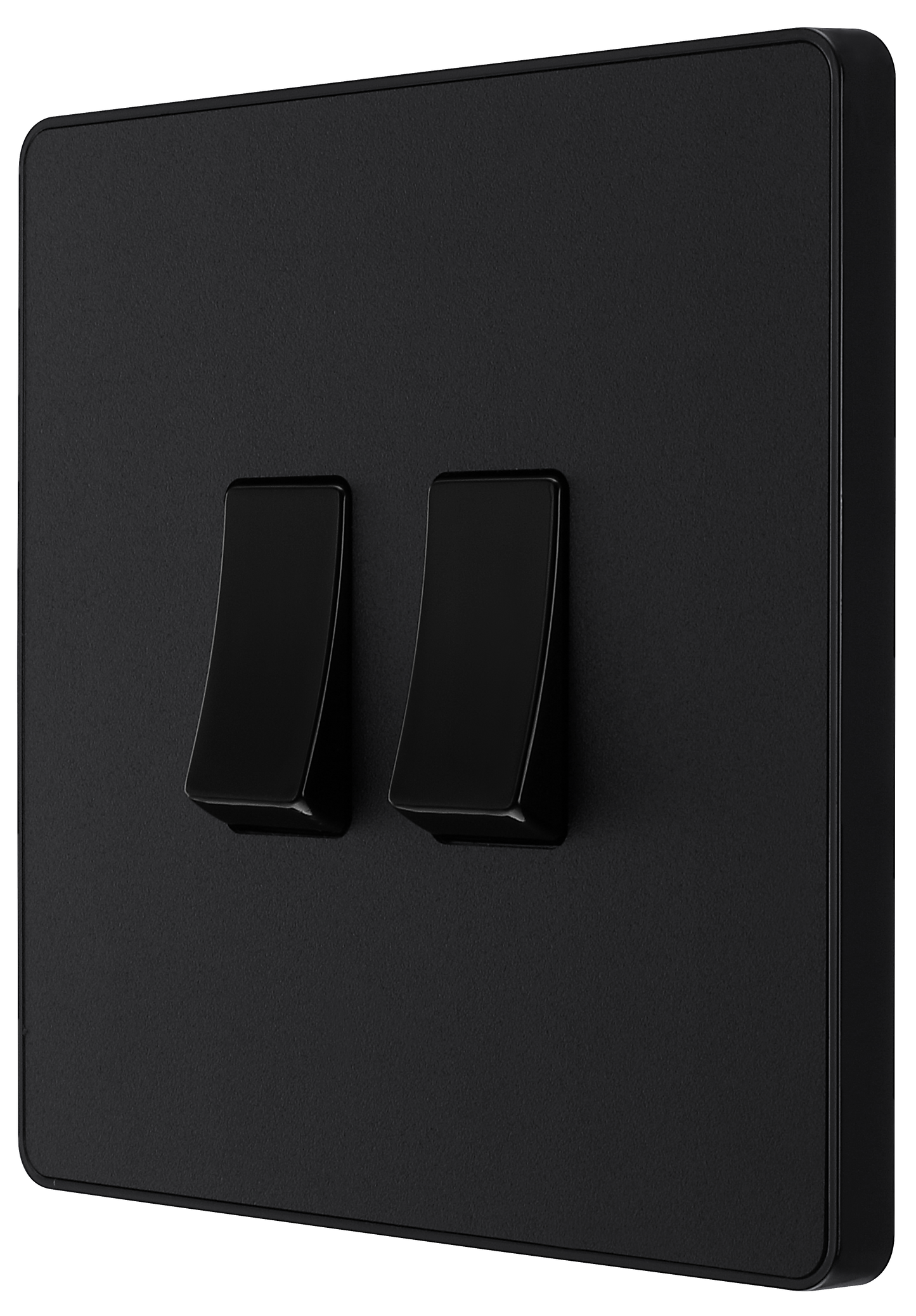

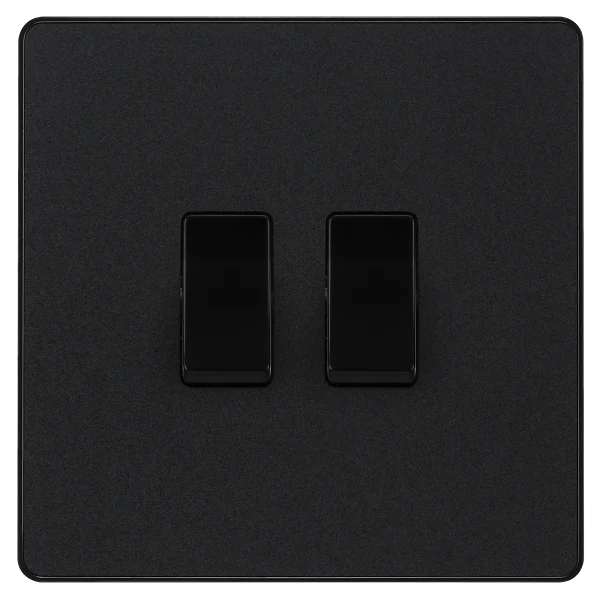

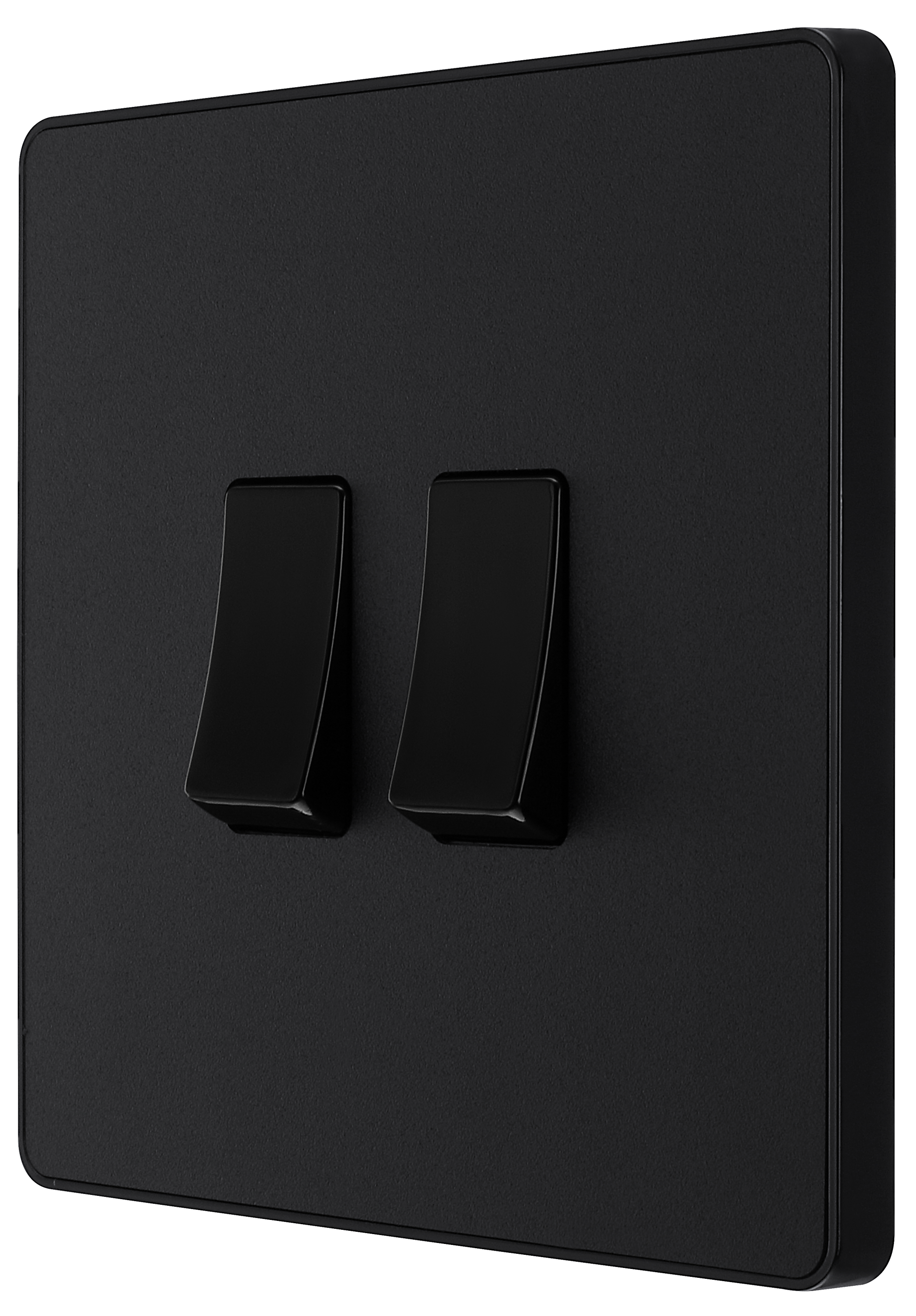

This Evolve Matt Black 20A 16AX double light switch from British General can operate 2 different lights, whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs). This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
20A 16AX Rated
-
Easy to install supplied with fixing screws and installation instructions
-
2 way switching allows for a second switch position in a circuit
-
Captive backed out terminal screws for fast installation and to prevent screw loss
-

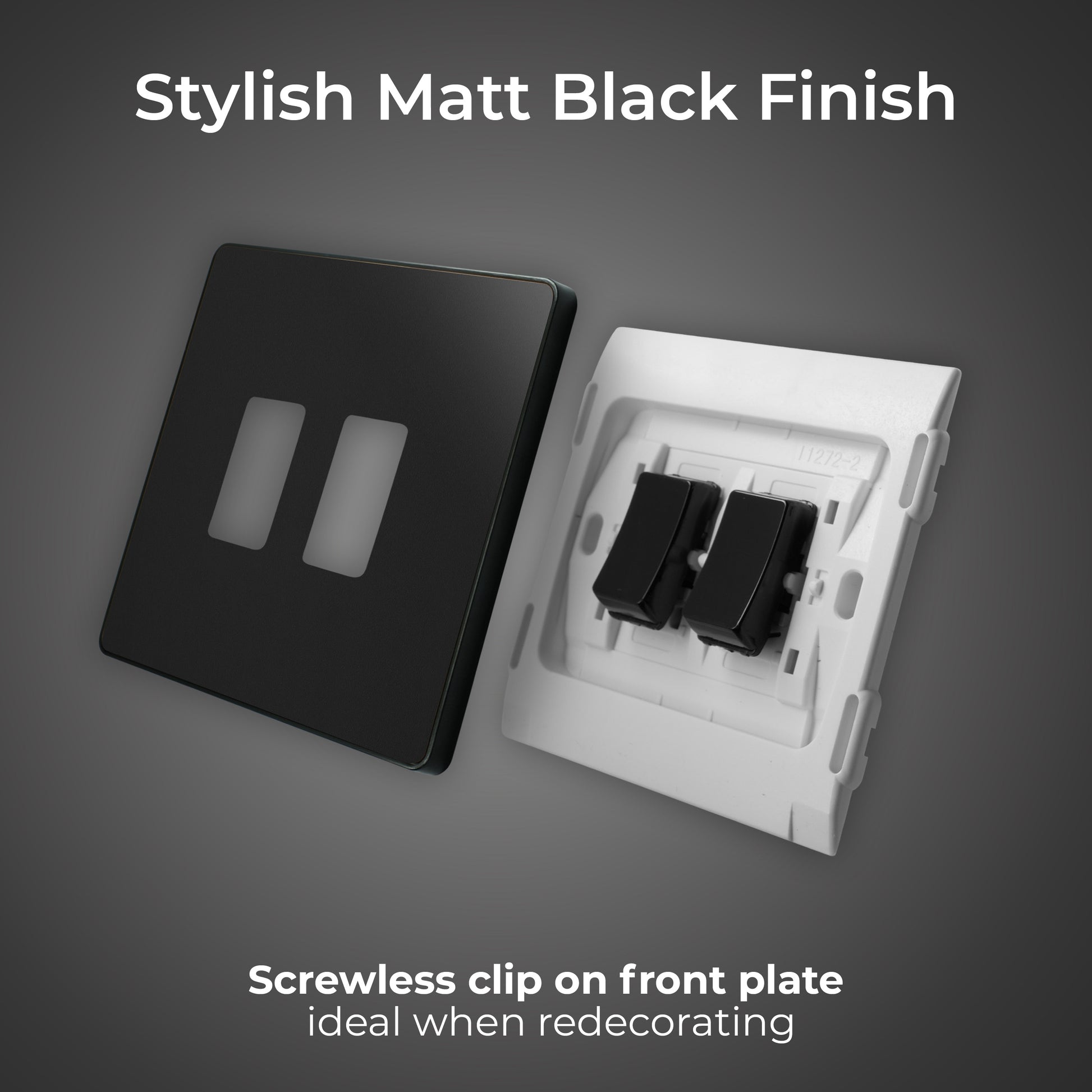

Screwless front plate clips on and off easily ideal for redecorating
-
No earth terminal required, making this an ideal decorative solution for older homes where no earth wiring is present
-
Minimum mounting box depth 25mm
-
Certified to BS60669-1
Specifications:
Warranty:
PartNum:
PCDMB42B-01
General Colour:
Matt Black
Captive Terminal Screws:
Yes
Backed-out Terminal Screws:
Yes
Minimum Box Depth (mm):
25

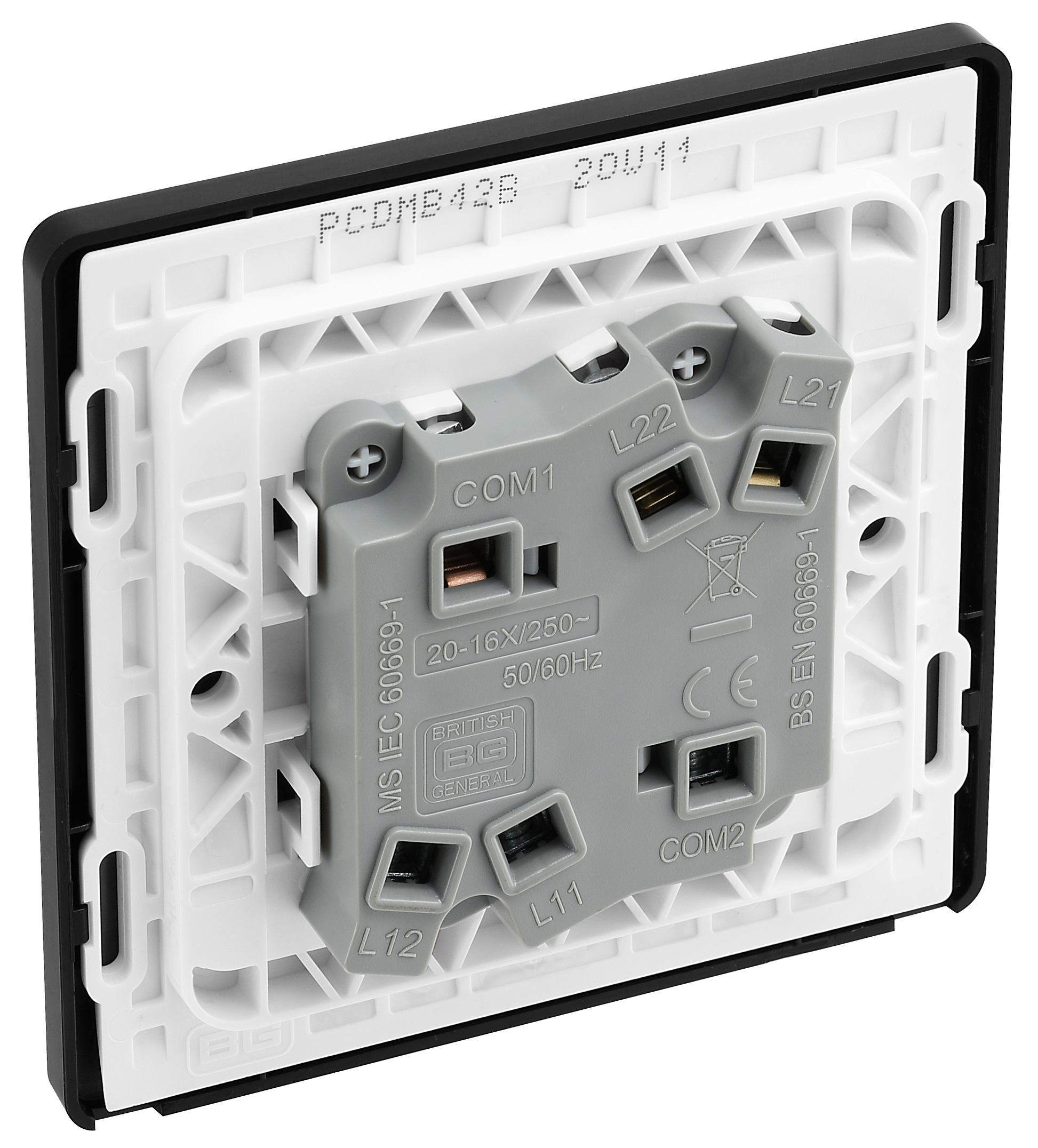

Terminal Capacity (mm²):
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer:
No
Anti-microbial Property:
No
Fixing Screws Supplied:
Yes
Terminal Arrangement:
N/A
Terminals with Colour Coding Print:
No
Number of Switches:
2
Screw Caps:
No
Switch Style Type:
Rocker
Switch Type (Ways & Poles):
Two Way
Switch Location Position:
Wall
Fixing Centres (mm):
W-60.3
IP Rating:
IP20
Operating Voltage (V):
220-240
Switch State:
On/Off
Warranty (Years) :
25
