Miza LED

20 Amp Edge to Edge Rocker Switches

20 Amp Edge to Edge Rocker Switches

Regular price £8.70 GBP
Regular price Sale price £8.70 GBP
Sale Sold out
Taxes included.
Quantity

This Evolve 20A intermediate light switch from British General allows for more than two switches in a circuit where you need to control the same light from 3 different locations, such as at the top and bottom of the stairs and at the end of a hallway or landing. The low profile edge-to-edge rocker clips in to place once the base is installed for a screwless appearance, with a large touch surface for easy operation and matt black finish. Installation is fast and secure with clearly labelled captive backed out terminal screws. The switch is certified to BS60669-1 standards, and comes with a 25-year guarantee for total peace of mind. BG’s Evolve range of wiring accessories is available in a variety of colours and finishes to give you greater choice and flexibility when choosing electrical accessories.

Features:

  • 20A 16AX Rated
  • Easy to install supplied with fixing screws and installation instructions
  • 3 way switching to act as the middle switch in a circuit circuit
  • Captive backed out terminal screws for fast installation and to prevent screw loss

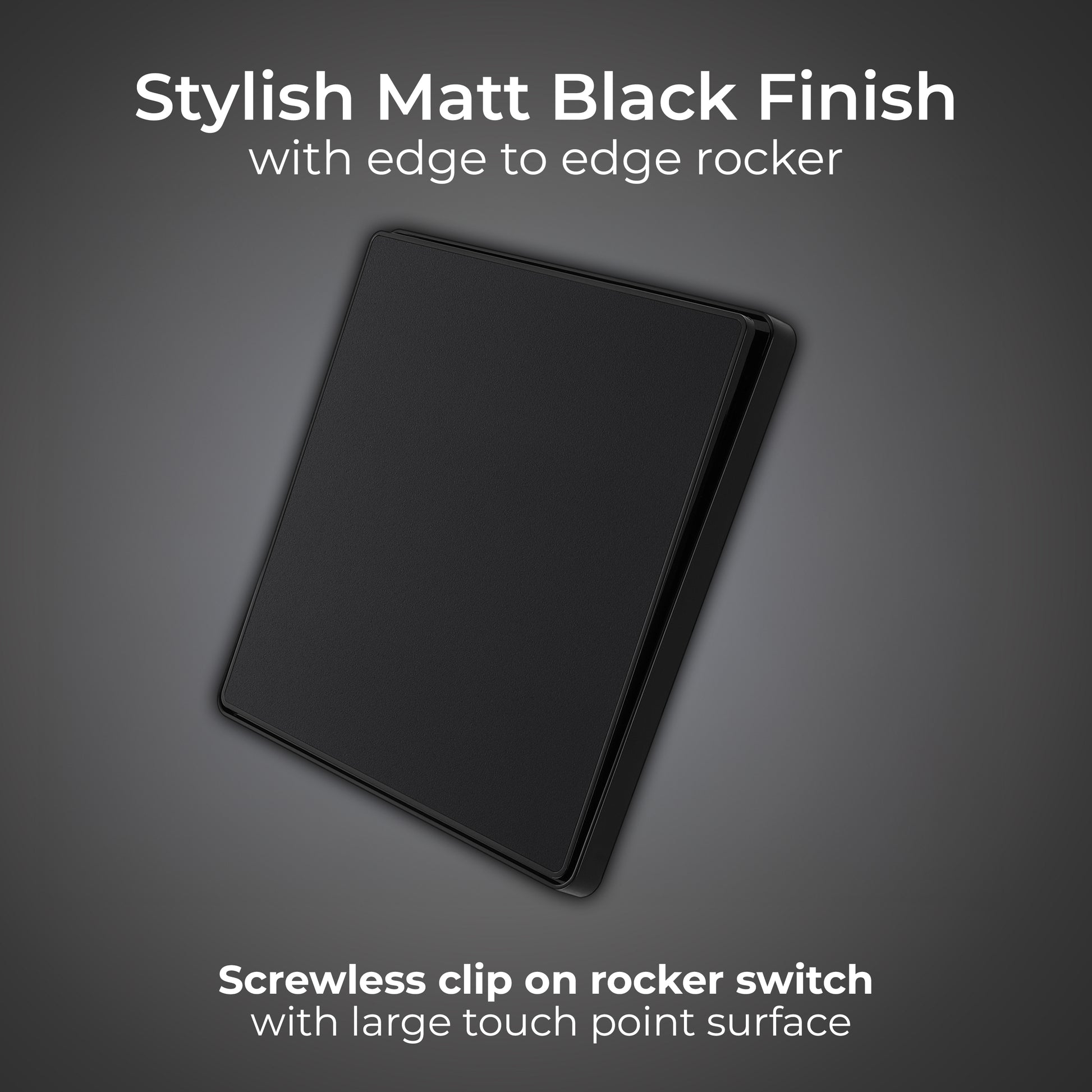

  • Screwless rocker clips on and off easily ideal for redecorating
  • Edge to edge switch for a larger touch point and contemporary appearance
  • Earth terminal on mounting plate
  • Minimum mounting box depth 25mm
  • Certified to BS60669-1

Specification:

PartNum:
PCDMB13EB-01
General Colour:
Matt Black
Captive Terminal Screws:
Yes
Backed-out Terminal Screws:
Yes
Minimum Box Depth (mm):
25
Terminal Capacity (mm²):
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer:
No
Anti-microbial Property:
No
Fixing Screws Supplied:
Yes
Terminals with Colour Coding Print:
No
Number of Switches:
1
Screw Caps:
No
Switch Style Type:
Rocker
Switch Type (Ways & Poles):
Intermediate
Switch Location Position:
Wall
Fixing Centres (mm):
W-60.3
IP Rating:
IP20
Operating Voltage (V):
220-240
Switch State:
On/Off

Dimensions:

Product Height (mm):
86
Product Width (mm):
86
Product Depth (mm)
28.8
Minimum Box Depth (mm):
25
Front Plate Material Thickness (mm):
N/A
Front Plate Height (mm):
5.3
