Miza LED

20 Amp Edge to Edge Rocker Switches

20 Amp Edge to Edge Rocker Switches

Regular price £13.12 GBP
Regular price Sale price £13.12 GBP
Sale Sold out
Taxes included.
Quantity

This Evolve 20A triple light switch from BG will operate three lights in a room. The 2 way switch lets a second switch be added to the circuit, allowing the customer to operate the same lights from another location, e.g. either side of a room, or top and bottom of the stairs. The low profile edge-to-edge rockers clip in to place once the base is installed for a screwless appearance, with a large touch surface for easy operation and matt black finish. Installation is fast and secure with clearly labelled captive backed out terminal screws. The switch is certified to BS60669-1 standards, and comes with a 25-year guarantee for total peace of mind. BG’s Evolve range of wiring accessories is available in a variety of colours and finishes to give you greater choice and flexibility when choosing electrical accessories.

Features:

  • 20A 16AX Rated
  • Easy to install supplied with fixing screws and installation instructions
  • 2 way switching allows for a second switch position in a circuit

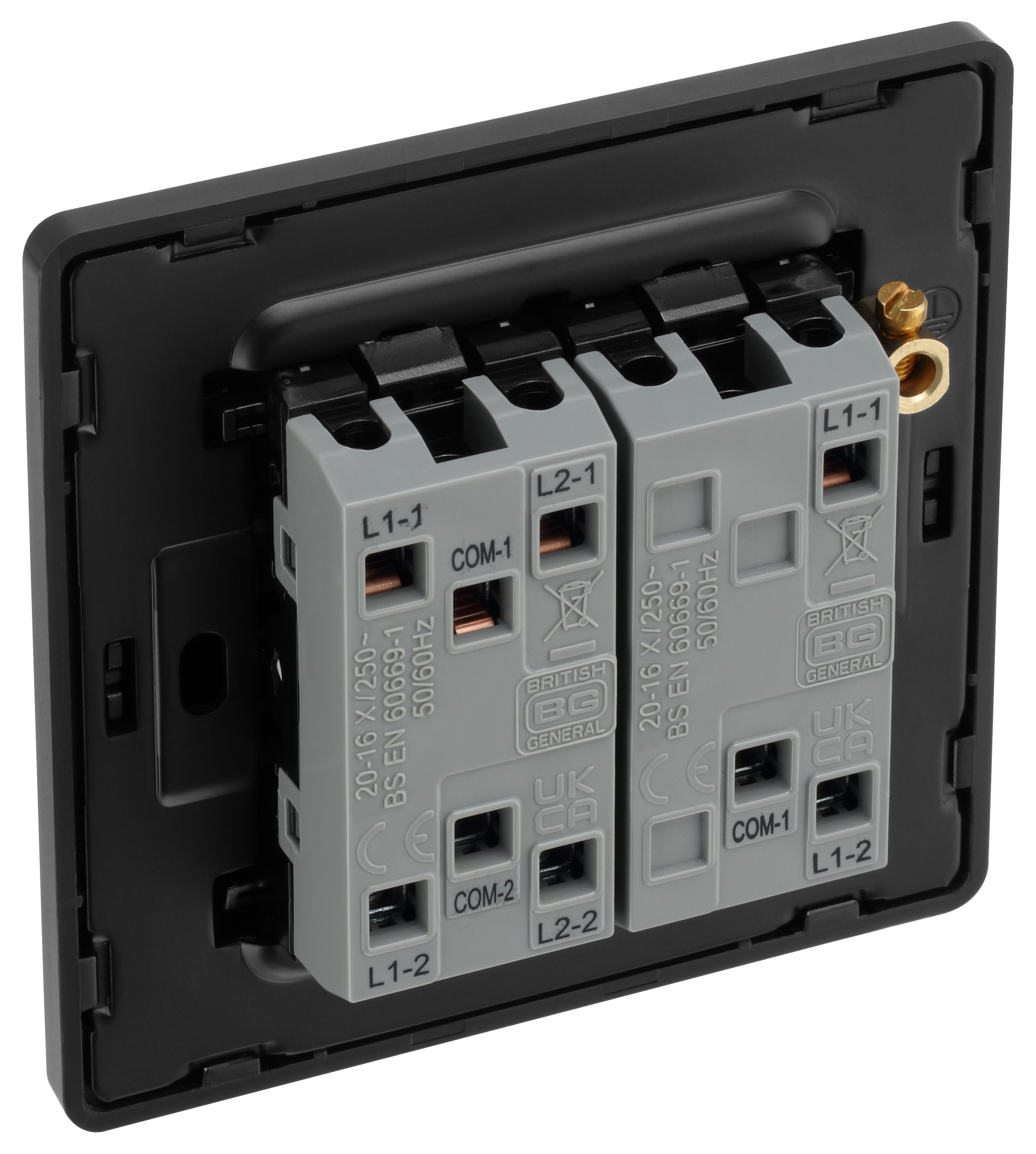

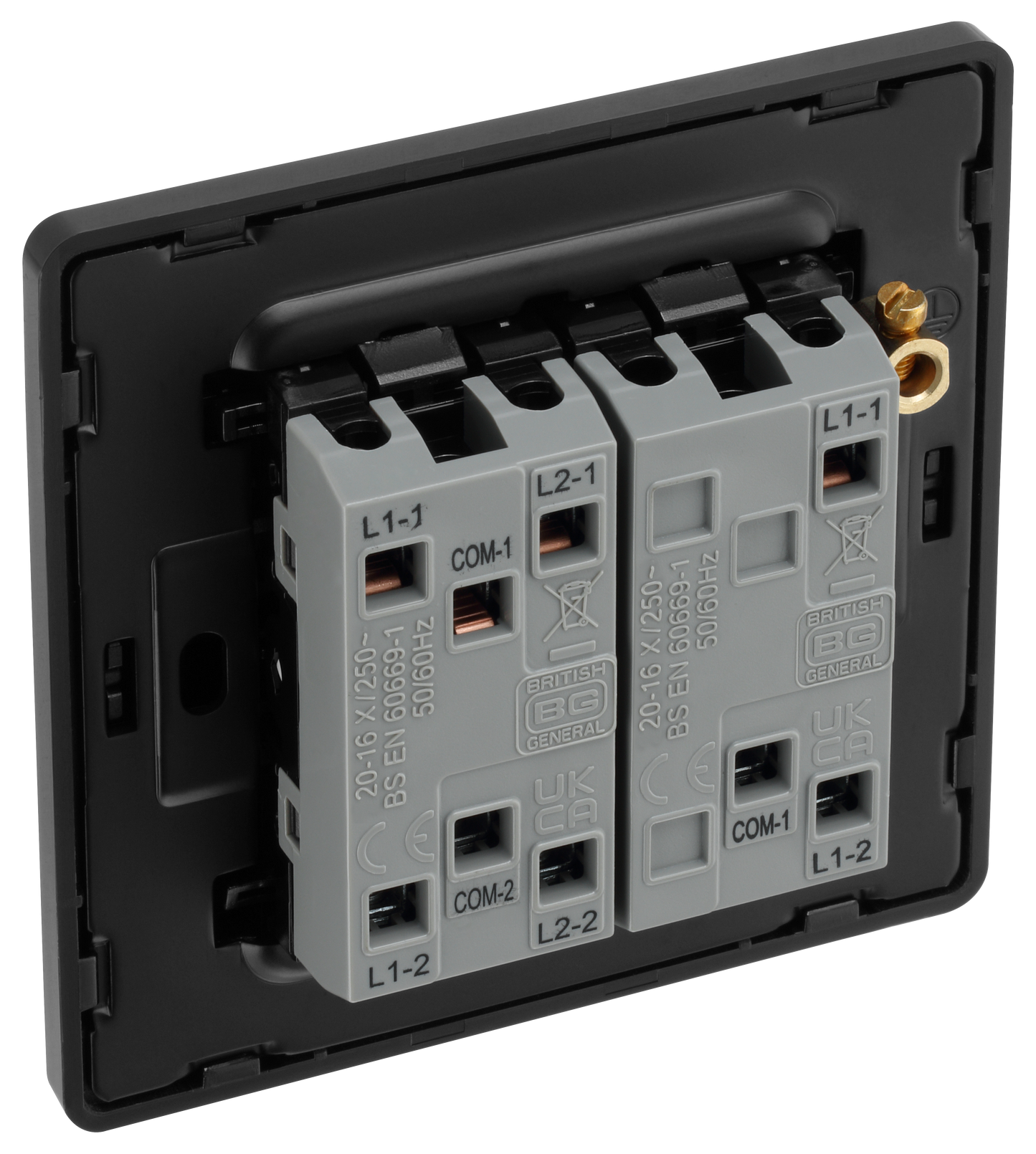

  • Captive backed out terminal screws for fast installation and to prevent screw loss

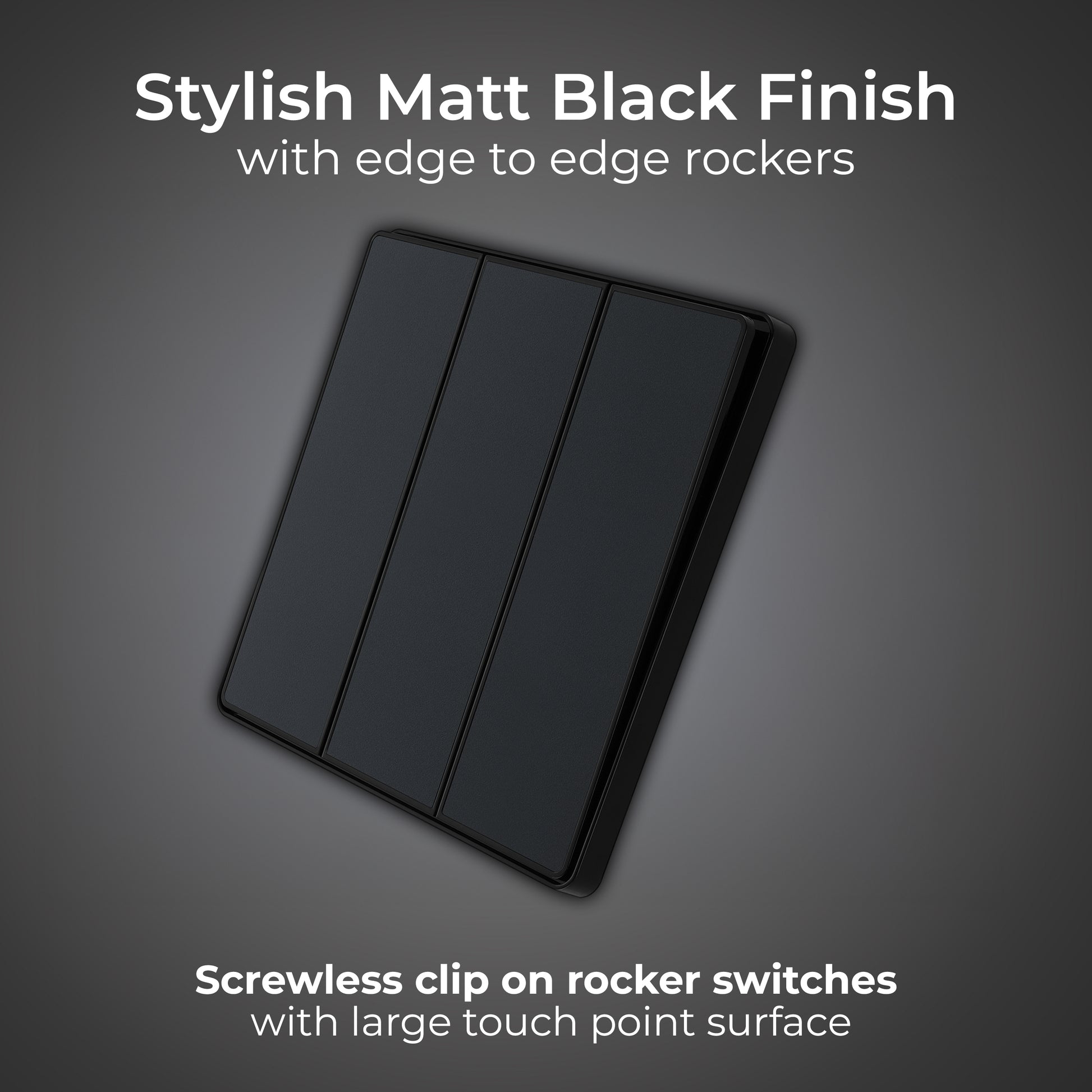

  • Screwless rocker clips on and off easily ideal for redecorating

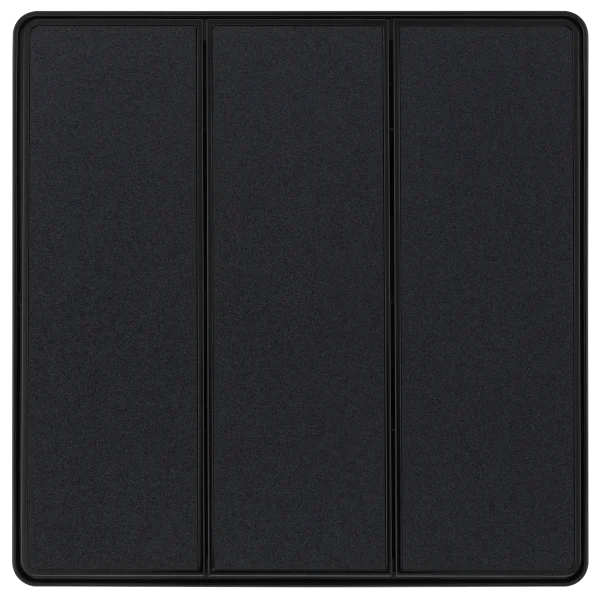

  • Edge to edge switch for a larger touch point and contemporary appearance
  • Earth terminal on mounting plate
  • Minimum mounting box depth 25mm
  • Certified to BS60669-1

Specifications:

PartNum:
PCDMB43EB-01
General Colour:
Matt Black
Captive Terminal Screws:
Yes
Backed-out Terminal Screws:
Yes
Terminal Capacity (mm²):
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer:
No
Anti-microbial Property:
No
Fixing Screws Supplied:
Yes
Terminals with Colour Coding Print:
No
Number of Switches:
3
Screw Caps:
No
Switch Style Type:
Rocker
Switch Type (Ways & Poles):
Two Way
Switch Location Position:
Wall
Fixing Centres (mm):
W-60.3
IP Rating:
IP20
Operating Voltage (V):
220-240
Switch State:
On/Off


Dimensions:

Product Height (mm):
86
Product Width (mm):
86
Product Depth (mm):
28.8
Minimum Box Depth (mm):
35
Front Plate Material Thickness (mm):
N/A
Front Plate Height (mm):
5.3


Warranty:

Warranty (Years):

25

View full details
