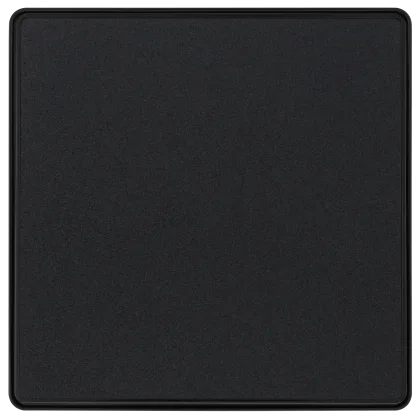

20 Amp Edge to Edge Rocker Switches

20 Amp Edge to Edge Rocker Switches

£6.55 GBP
£6.55 GBP
Sale Sold out
Taxes included.

This Evolve matt black 20A 16AX single light switch from British General will operate one light in a room. The 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs). This switch has edge to edge rockers and a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.

  • 20A 16AX Rated
  • Easy to install supplied with fixing screws and installation instructions
  • 2 way switching allows for a second switch position in a circuit
  • Captive backed out terminal screws for fast installation and to prevent screw loss
  • Screwless rocker clips on and off easily ideal for redecorating
  • Edge to edge switch for a larger touch point and contemporary appearance
  • Earth terminal on mounting plate
  • Minimum mounting box depth 25mm
  • Certified to BS60669-1

SPECIFICATIONS:

PartNum:
PCDMB12EB-01
General Colour:
Matt Black
Captive Terminal Screws:
Yes
Backed-out Terminal Screws:
Yes
Minimum Box Depth (mm):
25
Terminal Capacity (mm²):
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer:
No
Anti-microbial Property:
No
Fixing Screws Supplied:
Yes
Terminals with Colour Coding Print:
No
Number of Switches:
1
Screw Caps:
No
Switch Style Type:
Rocker
Switch Type (Ways & Poles):
Two Way
Switch Location Position:
Wall
Fixing Centres (mm):
W-60.3
IP Rating:
IP20
Operating Voltage (V):
220-240
Switch State:
On/Off


DIMENSIONS:

Product Height (mm):
86
Product Width (mm):
86
Product Depth (mm):
28.8
Minimum Box Depth (mm):
25
Front Plate Material Thickness (mm):
N/A
Front Plate Height (mm):
5.3


PACK:

Package Pack Type:
Eco Blister
Package Hanging:
Yes
Package Packed Height (mm):
153
Packed Width (mm):
120
Packed Depth (mm):
34
Packed Gross Weight (kg):
0.125


CASE:

Inner Pack Type:
Roll Printed Box
Inner Quantity:
5
Inner EAN:
5050765246569
Inner Height (mm):
127
Inner Width (mm):
117
Inner Depth (mm):
207
Inner Gross Weight (kg):
0.691
