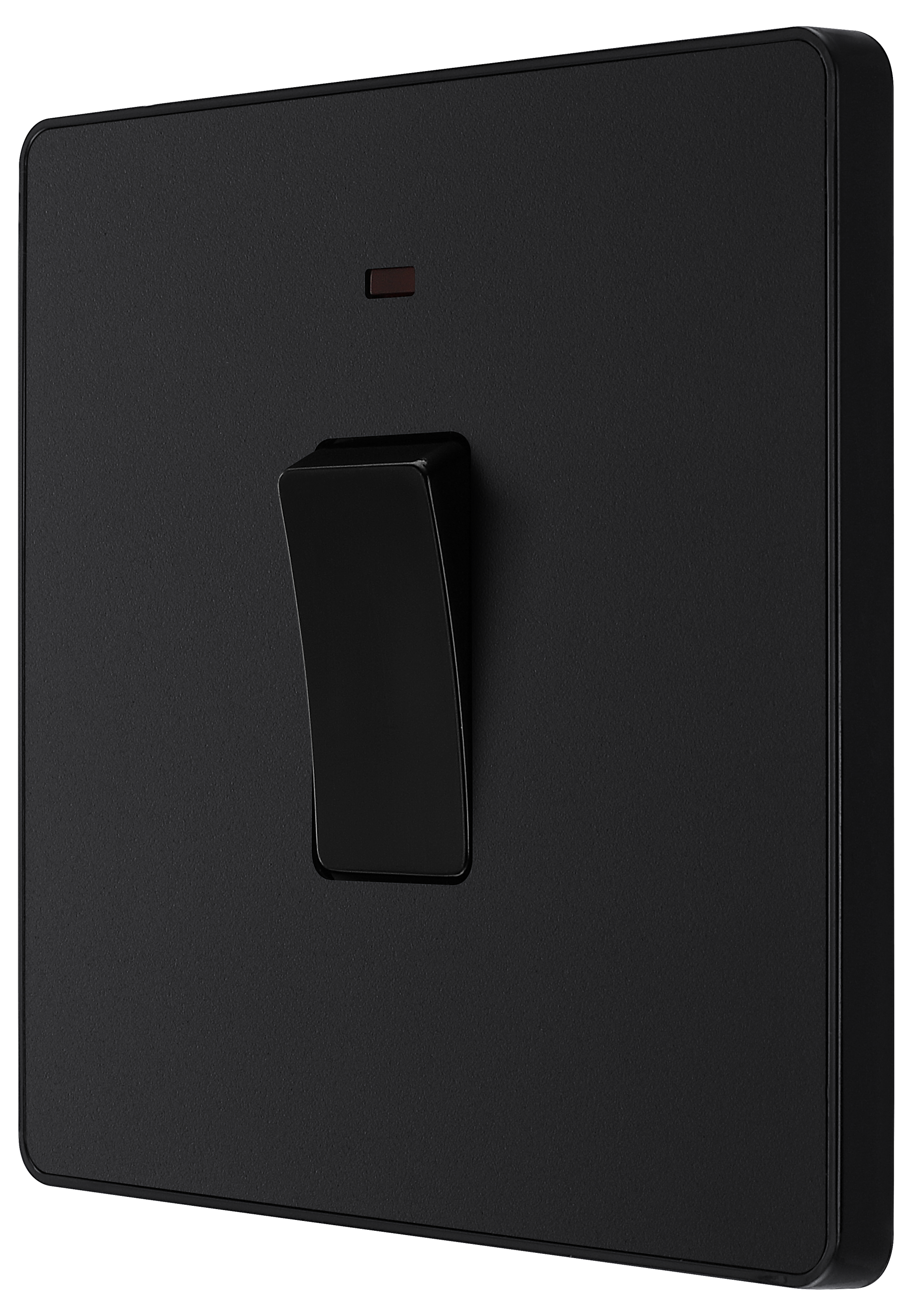

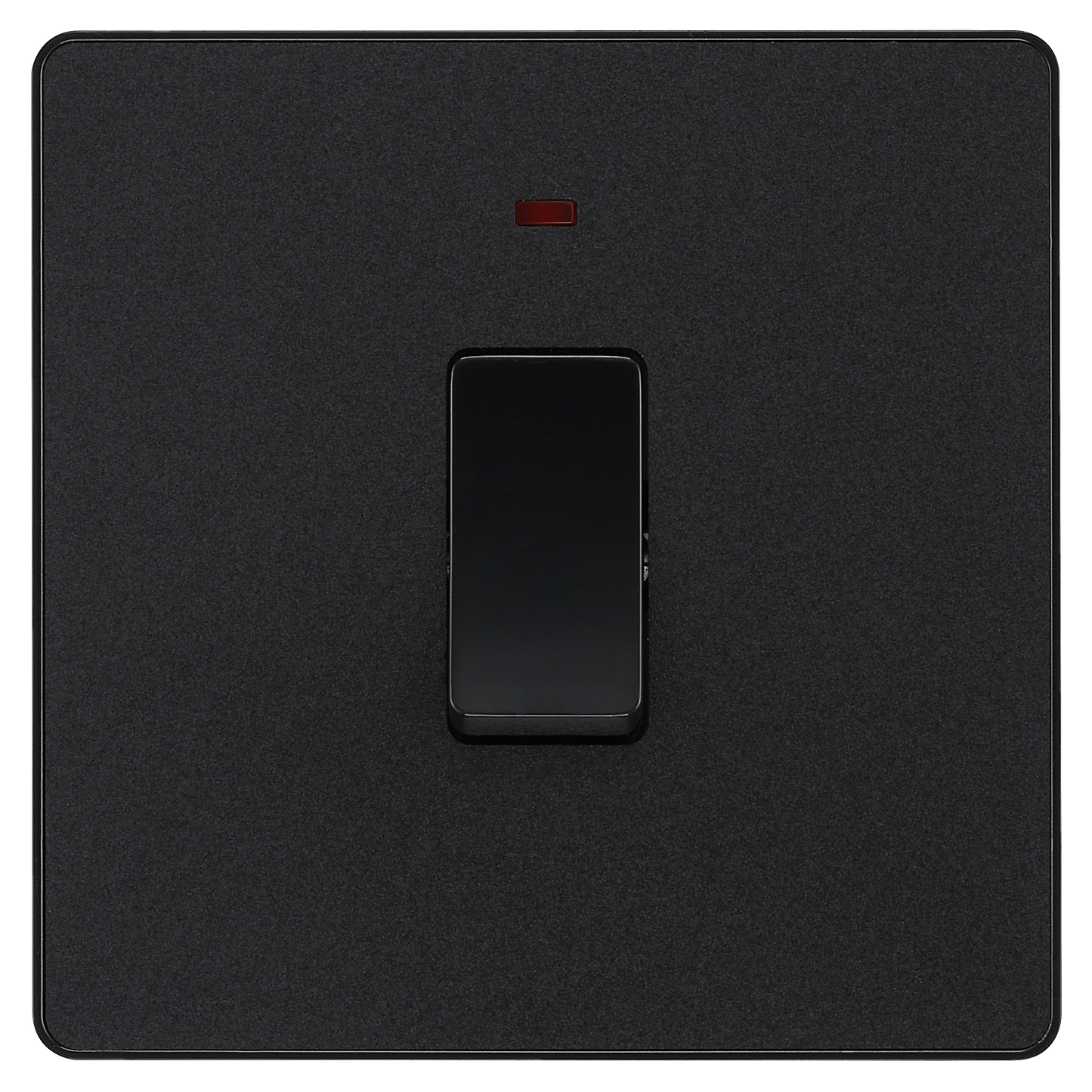

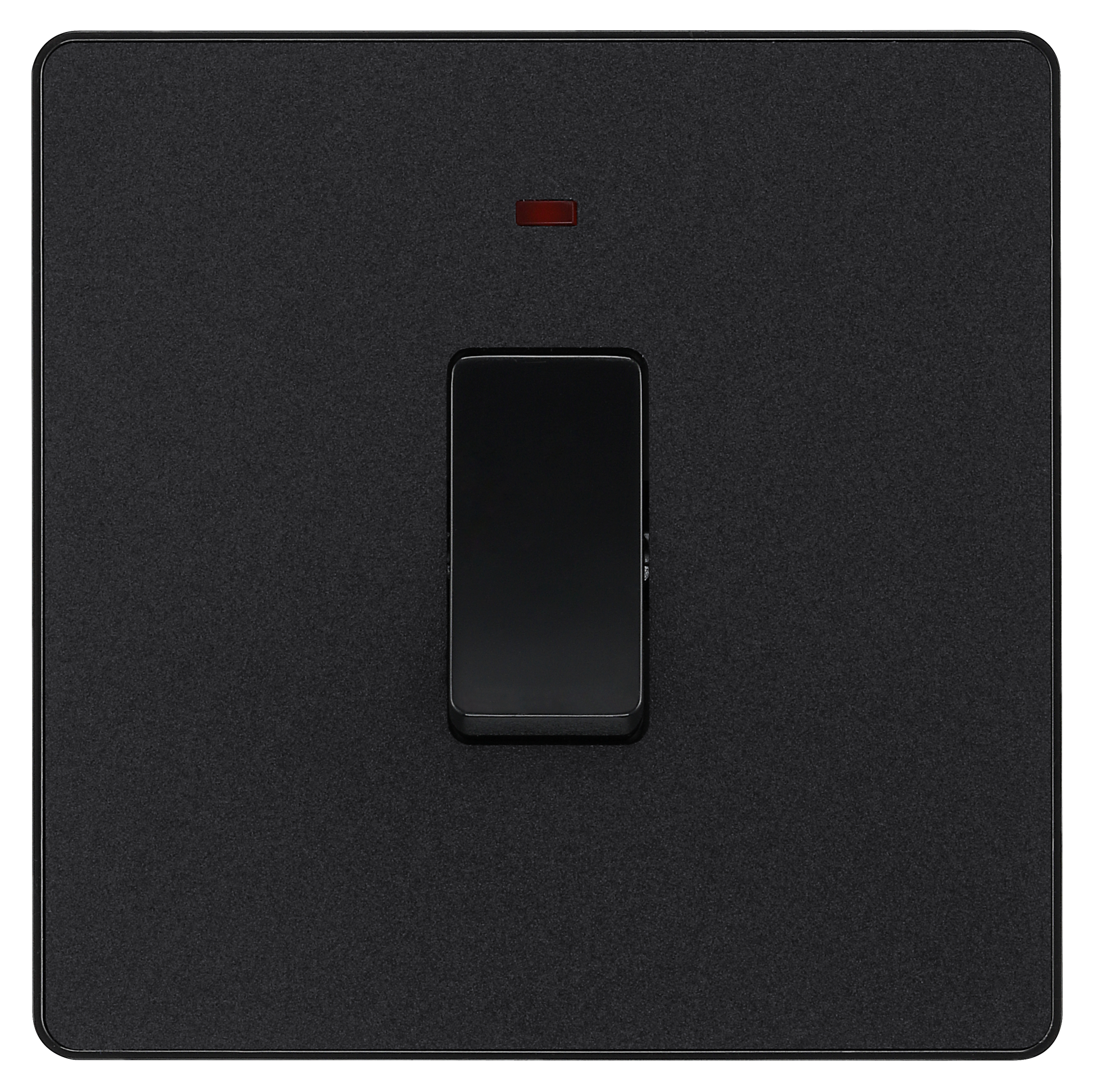

This Evolve Matt Black 20A double pole switch with indicator from British General has been designed for the connection of refrigerators, water heaters, central heating boilers and many other fixed appliances. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
20A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Suitable for use with refrigerators water heaters, central heating boilers and many other fixed appliances
-
Double Pole switching for the peace of mind of a safer installation
-

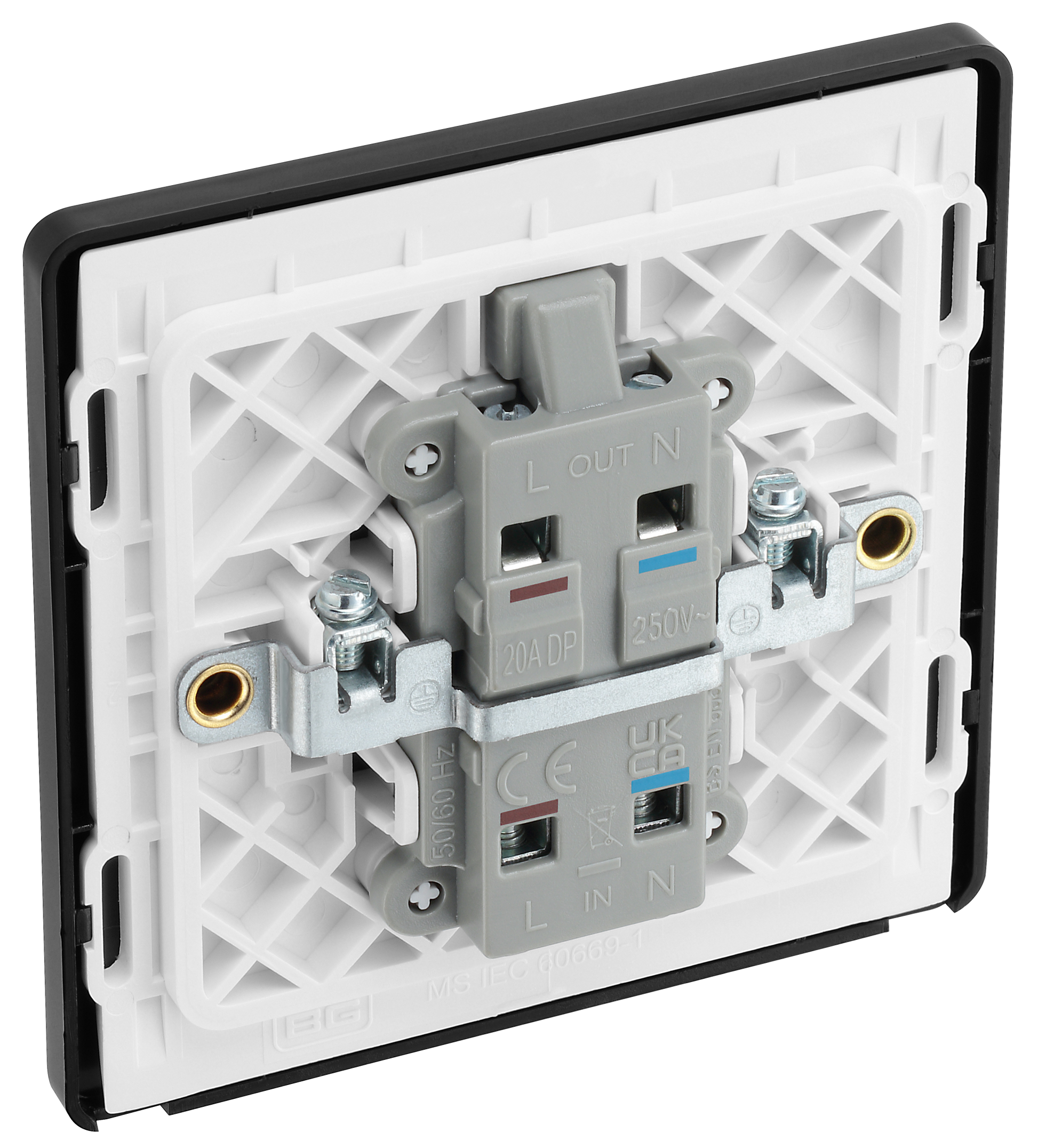

Colour coded terminals for easy identification
-
Captive backed out terminal screws for fast installation and to prevent screw loss
-
Flush LED power indicator
-

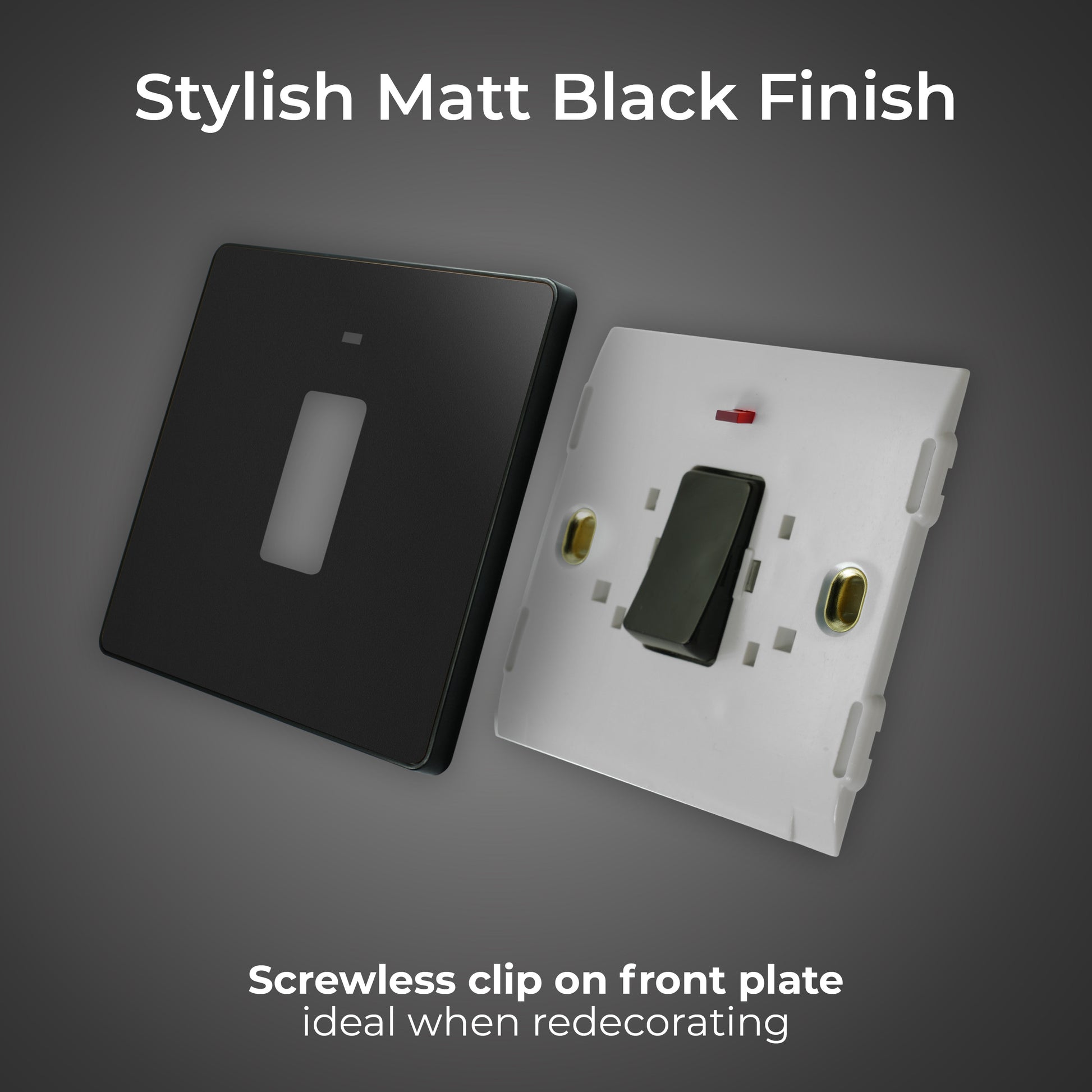

Screwless front plate clips on and off easily ideal for redecorating
-
Minimum mounting box depth 25mm
Specification:
PartNum
PCDMB31B-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
25
Terminal Capacity (mm²)
3 x 2.5mm², 3 x 4mm², 1 x 6mm²
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Terminal Arrangement
N/A
Terminals with Colour Coding Print
No
Number of Switches
1
Screw Caps
No
Switch Style Type
Rocker
Switch Type (Ways & Poles)
Double Pole
Switch Location Position
Wall
Fixing Centres (mm)
W-60.3
IP Rating
IP20
Operating Voltage (V)
220-240
Switch State
On/Off
Dimensions:
Product Height (mm)
86
Product Width (mm)
86

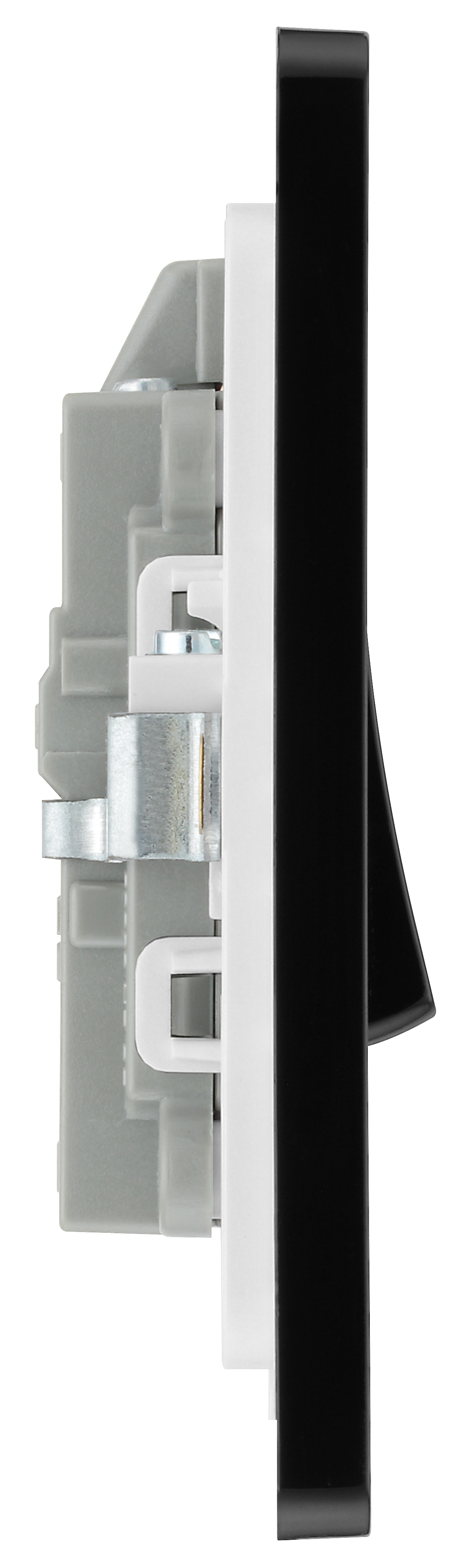

Product Depth (mm)
23.8
Minimum Box Depth (mm)
25
Front Plate Material Thickness (mm)
1.8
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
