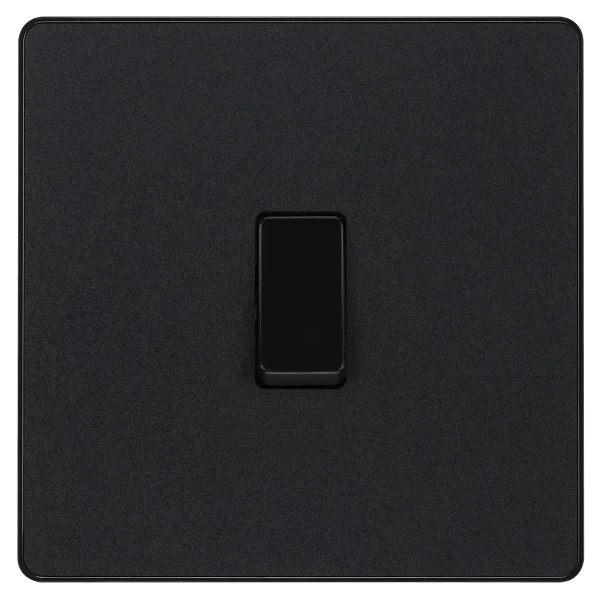

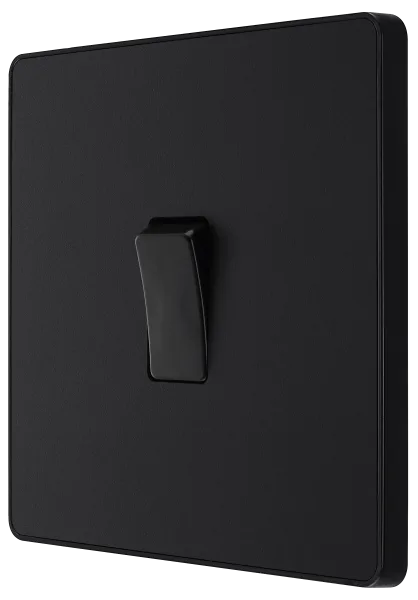

This Evolve Matt Black 20A 16AX intermediate light switch from British General should be used as the middle switch when you need to operate one light from 3 different locations, such as either end of a hallway and at the top of the stairs. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
FEATURES:
-
20A 16AX Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Intermediate switch allows for more than 2 switches in a circuit
-

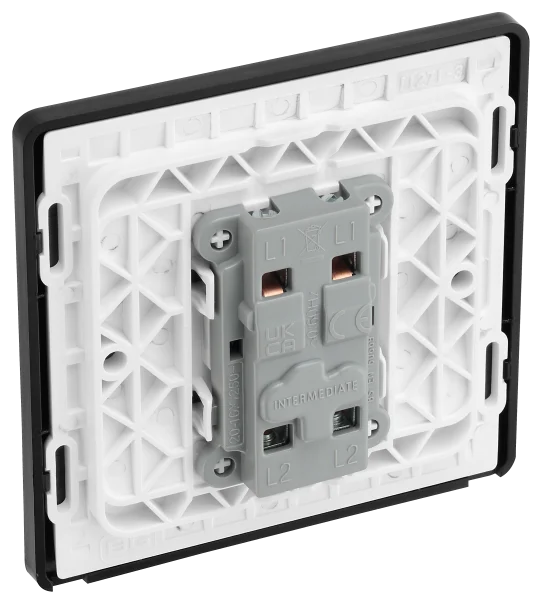

Captive backed out terminal screws for fast installation and to prevent screw loss
-
Screwless front plate clips on and off easily ideal for redecorating
-
No earth terminal required, making this an ideal decorative solution for older homes where no earth wiring is present
-
Minimum mounting box depth 25mm
-
Certified to BS60669-1
Specifications:
General Colour:
Matt Black
Captive Terminal Screws:
Yes
Backed-out Terminal Screws:
Yes
Minimum Box Depth (mm):
25
Terminal Capacity (mm²):
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer:
No
Anti-microbial Property:
No
Fixing Screws Supplied:
Yes
Terminal Arrangement:
N/A
Terminals with Colour Coding Print:
No
Number of Switches:
1
Screw Caps:
No
Switch Style Type:
Rocker
Switch Type (Ways & Poles):
Intermediate
Switch Location Position:
Wall
Fixing Centres (mm):
W-60.3
IP Rating:
IP20
Operating Voltage (V):
220-240
Switch State:
On/Off
DIMENSIONS:
Product Height (mm):
86
Product Width (mm):
86
Product Depth (mm):
24
Minimum Box Depth (mm):
25
Front Plate Material Thickness (mm):
N/A
Front Plate Height (mm):
5.3
WARRANTY:
Warranty (years):
25
