Miza LED

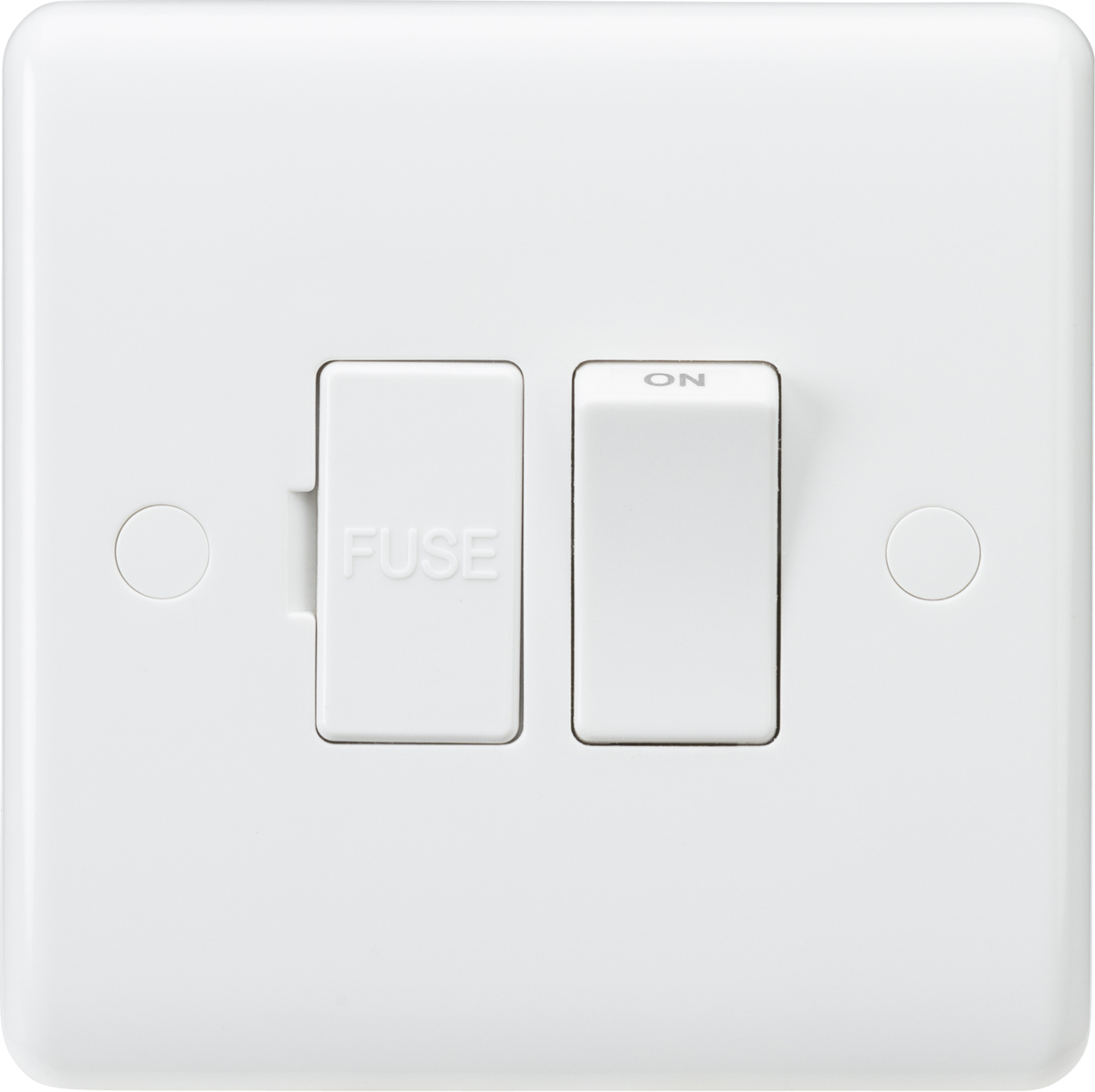

13A Switched Fused Spur Unit CU6300
13A Switched Fused Spur Unit CU6300
Regular price
£2.82 GBP
Regular price
Sale price
£2.82 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Gently contoured 7mm plate with rounded edges and anti-microbial properties
- 13A rated
- Switched Fused Spur unit
- Includes screw cap covers
- Certified to BS 1363-4
- Supplied in Knightsbridge rip top polybag with euro slot

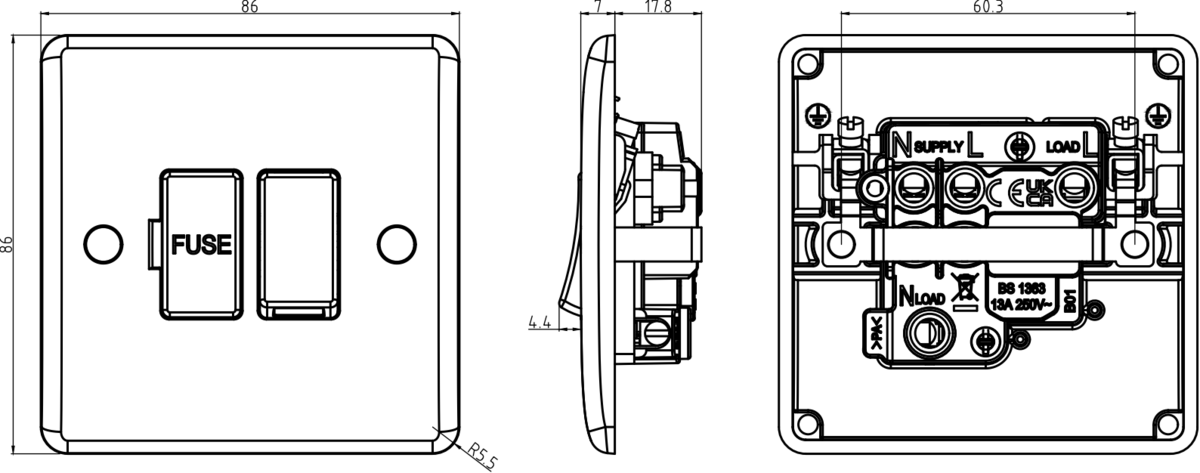

DIMENSIONS:
| Height | 86 mm |
|---|---|
| Width | 86 mm |
| Depth | 29.2 mm |
| Projection | 11.4 mm |
| Recessed Depth | 17.8 mm |
| Min. Mounting Box Depth | 25mm |
| Plate Depth | 7 mm |
CARTON:
| Unit Barcode | 5055832973751 |
|---|---|
| Inner Carton Quantity | 10 |
| Inner Carton Weight | 1.167 Kg |
| Inner Carton Length | 18.5 cm |
| Inner Carton Width | 14.2 cm |
| Inner Carton Height | 9.3 cm |
| Inner Carton Barcode | 5055832973768 |
| Outer Carton Quantity | 100 |
| Outer Carton Weight | 12.2 Kg |
| Outer Carton Length | 48.5 cm |
| Outer Carton Width | 29.5 cm |
| Outer Carton Height | 20 cm |
| Outer Carton Volume | 0.028600 m3 |
| Outer Carton Barcode | 5055832973775 |
WIRING ACCESSORIES:
| Earth Terminal | Yes |
|---|---|
| Anti-Microbial Properties | 3rd Party Tested to ISO 22196:2011 |
