Miza LED

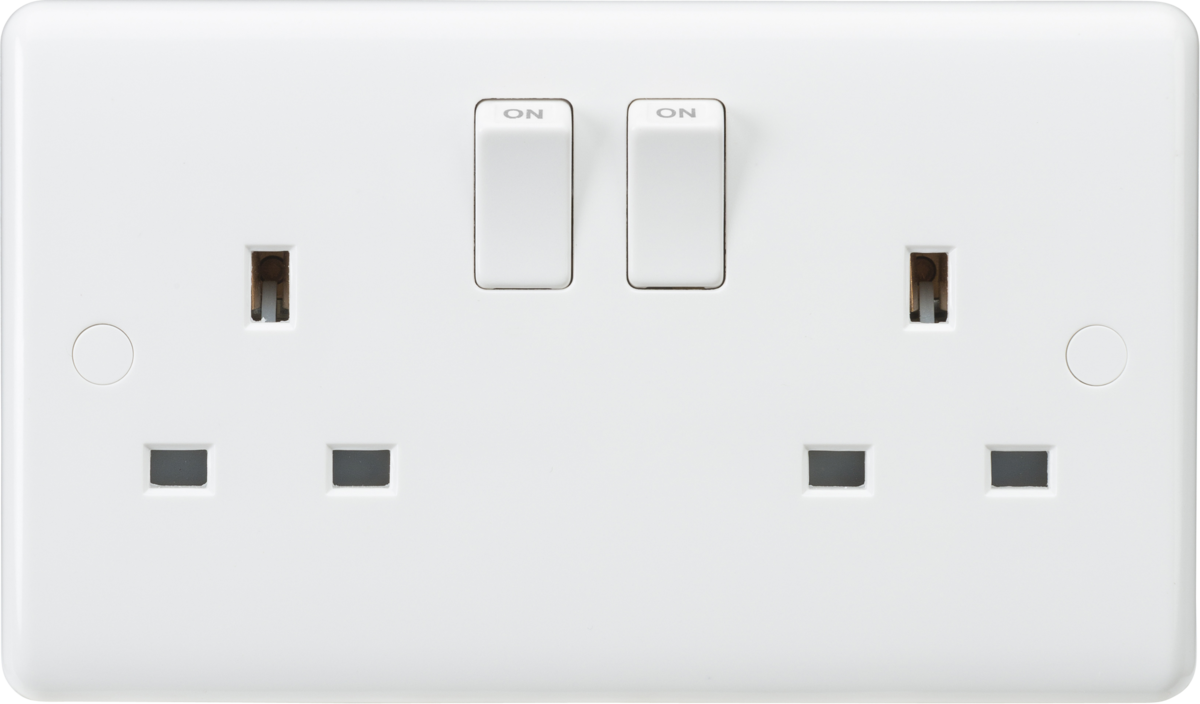

13A 2G DP Switched Socket with Twin Earths - ASTA Approved CU9000

13A 2G DP Switched Socket with Twin Earths - ASTA Approved CU9000

£2.35 GBP
£2.35 GBP
Sale Sold out
Taxes included.

Gently contoured 7mm plate with rounded edges and anti-microbial properties

  • 13A rated
  • Double Pole
  • Top access to captive terminals to speed up installation.
  • Twin earths
  • Includes screw cap covers
  • Min. Mounting box depth: 25mm
  • Certified to BS 1363-2:2016+A1:2018
  • ASTA approved License No. 1412
  • Packed in Individual Knightsbridge rip top polybag with euro slot

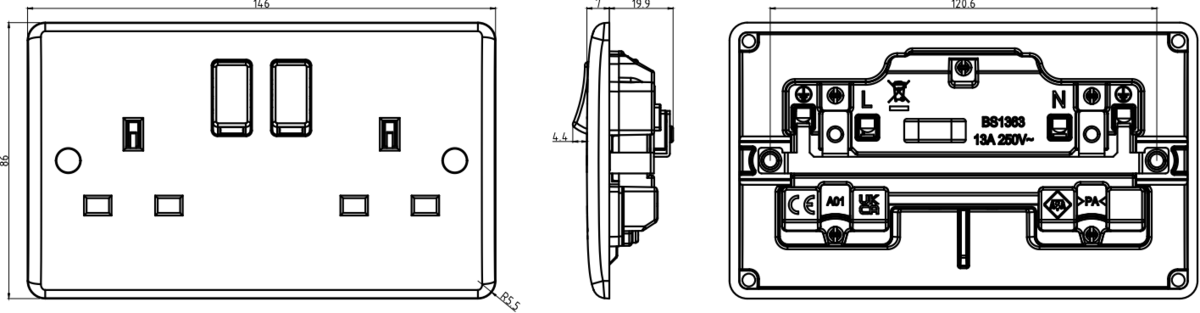

DIMENSIONS:

Height 86 mm
Width 146 mm
Depth 31.3 mm
Projection 11.4 mm
Recessed Depth 19.9 mm
Min. Mounting Box Depth 25mm
Plate Depth 7 mm



WIRING ACCESSORIES

Earth Terminal Yes
Anti-Microbial Properties 3rd Party Tested to ISO 22196:2011



CARTON:

Unit Barcode 5055832972181
Inner Carton Quantity 5
Inner Carton Weight 0.907 Kg
Inner Carton Length 15.2 cm
Inner Carton Width 14.8 cm
Inner Carton Height 9.3 cm
Inner Carton Barcode 5055832972211
