Miza LED

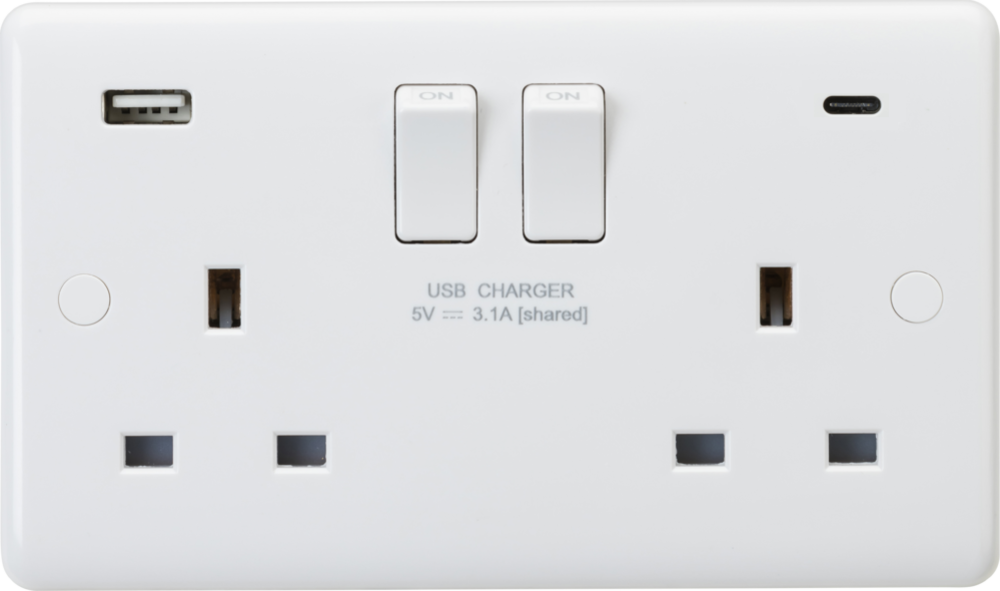

13A 2G DP Switched Socket with Dual USB A+C [5V DC 3.1A shared] Max. 15.5W CU9931D

13A 2G DP Switched Socket with Dual USB A+C [5V DC 3.1A shared] Max. 15.5W CU9931D

£15.97 GBP
£15.97 GBP
Sale Sold out
Taxes included.

Gently contoured 7mm plate with rounded edges and anti-microbial properties, includes screw cap covers.

  • 13A rated
  • Double Pole
  • Built in Dual USB Charger 1 x Type-A and 1 x Type-C (5V DC 3.1A shared)
  • Top access to captive terminals to speed up installation.
  • Twin earths

NB: Requires 35mm deep pattress box if surface mounting (CU1800)

WE RECOMMEND YOU ALWAYS USE CERTIFIED USB CABLES FOR SAFETY AND TO ENSURE COMPATIBILITY

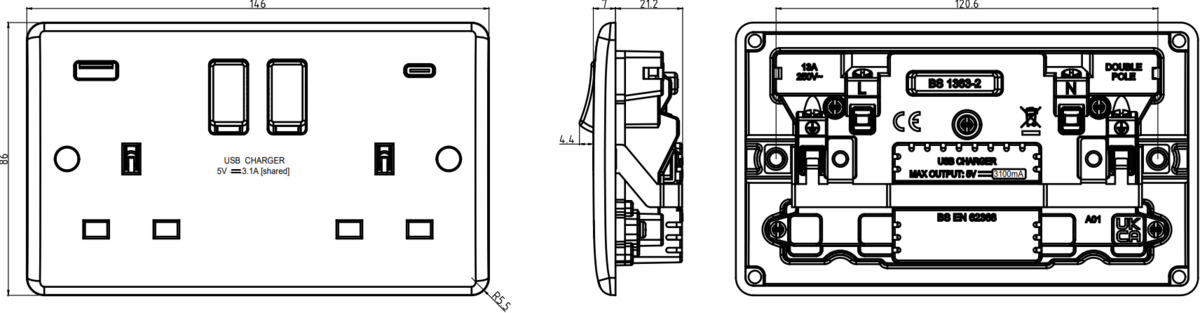

DIMENSIONS:

Height 86 mm
Width 146 mm
Depth 32.6 mm
Projection 11.4 mm
Recessed Depth 21.2 mm
Min. Mounting Box Depth 25mm
Plate Depth 7 mm



CARTON:

Unit Barcode 5056270844498
Inner Carton Quantity 5
Inner Carton Weight 1.15 Kg
Inner Carton Length 15.2 cm
Inner Carton Width 14.8 cm
Inner Carton Height 9.3 cm
Inner Carton Barcode 5056270844504
Outer Carton Quantity 50
Outer Carton Weight 12.1 Kg
Outer Carton Length 48.5 cm
Outer Carton Width 16.5 cm
Outer Carton Height 32 cm
Outer Carton Volume 0.025600 m3
Outer Carton Barcode 5056270844511



WIRING ACCESSORIES:

Fastcharge No
Earth Terminal Yes
Terminal Captive
Anti-Microbial Properties 3rd Party Tested to ISO 22196:2011
