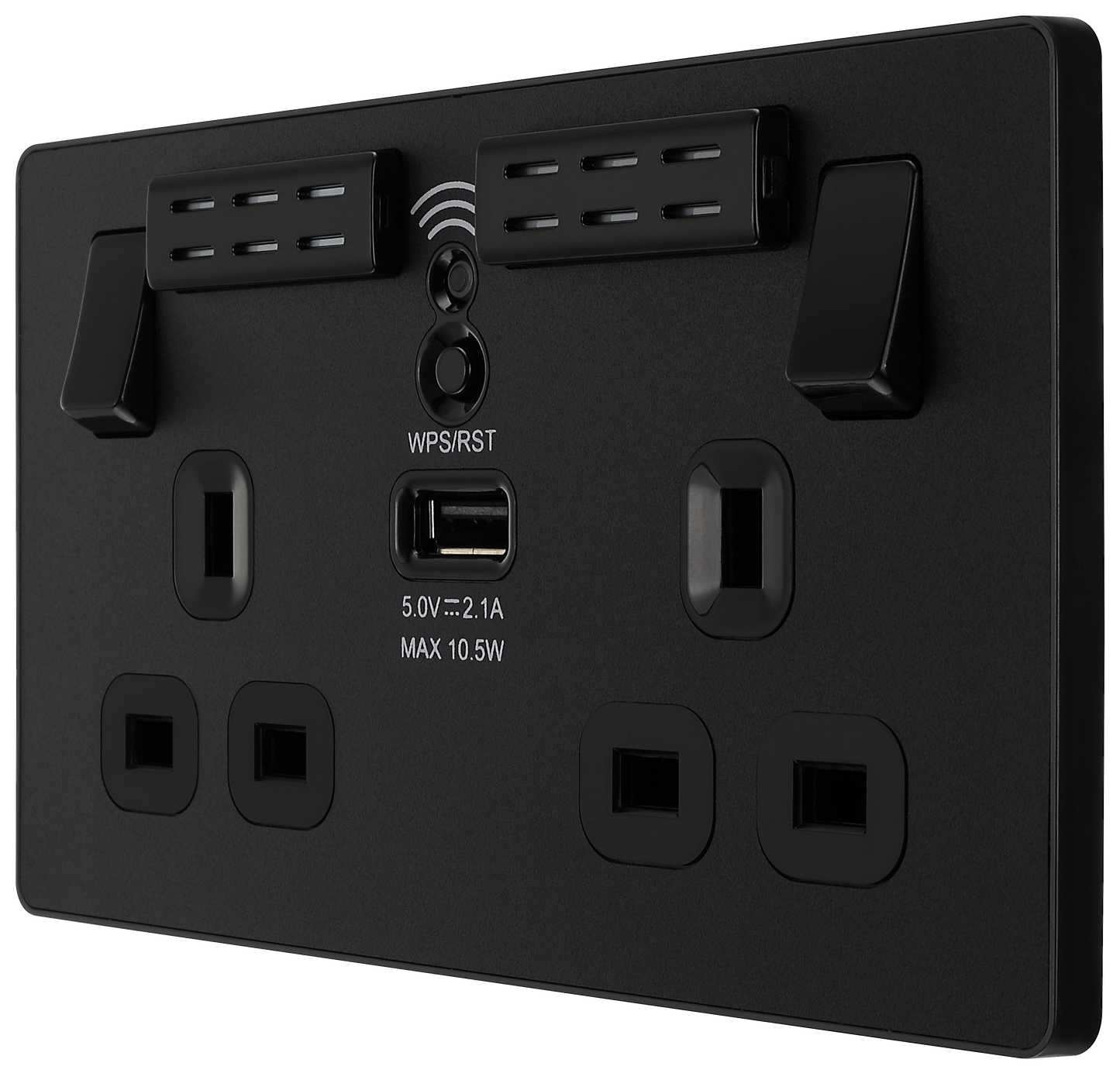

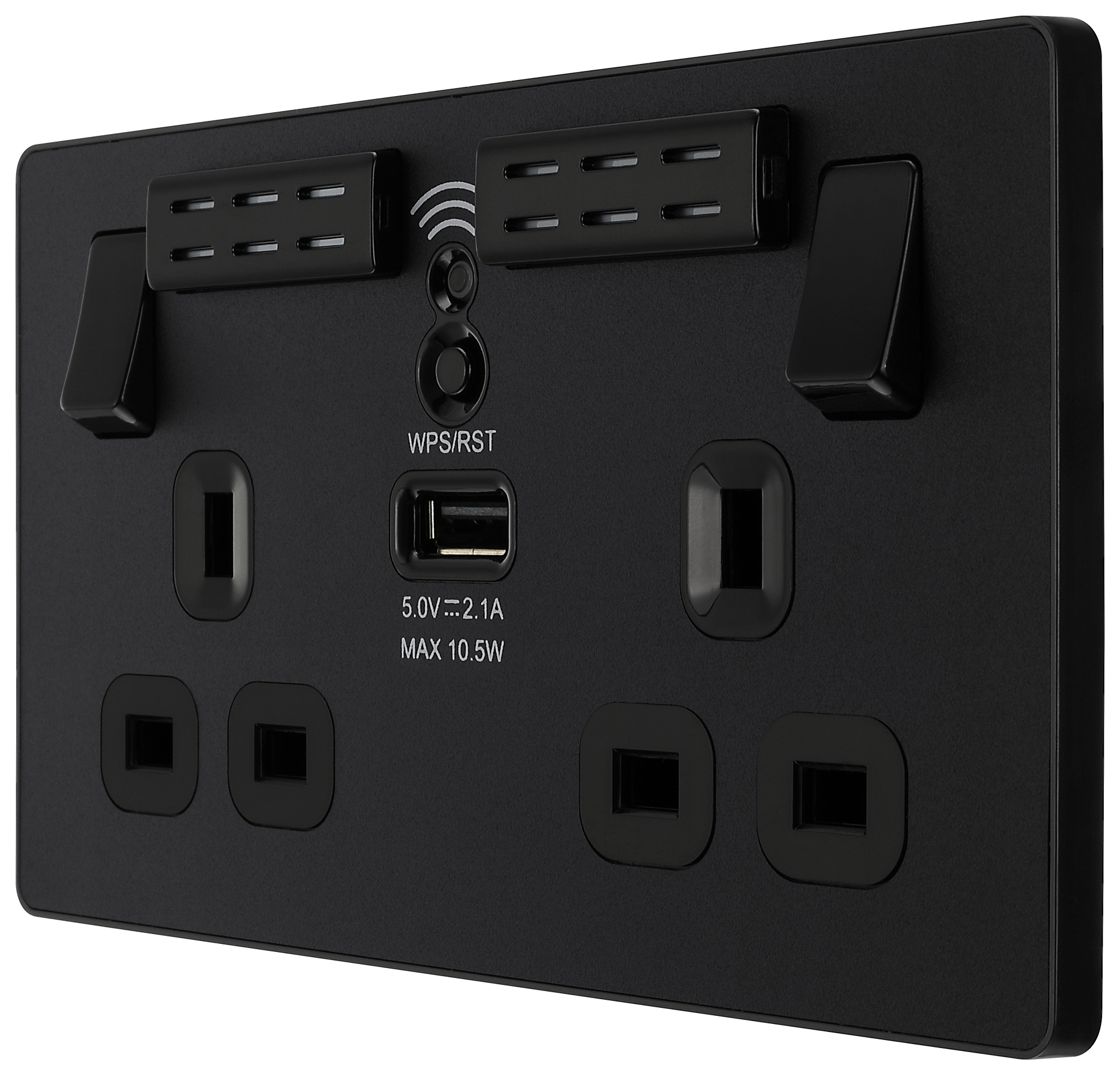

This Evolve Matt Black 13A double power socket with integrated Wi-Fi Extender from British General will eliminate dead spots and expand your Wi-Fi coverage. Designed to work with all wireless broadband routers and easy to install with one touch WPS, this includes a USB charging port and eradicates the need for plug in adaptors, keeping sockets free for use. The Evolve range also features a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
13A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
1x 2.1A USB outlet for charging your mobile devices
-
Improved Wi-Fi coverage throughout your home works with all wireless broadband routers
-
Easy to setup with one touch WPS
-
Single band (2.4Ghz)
-

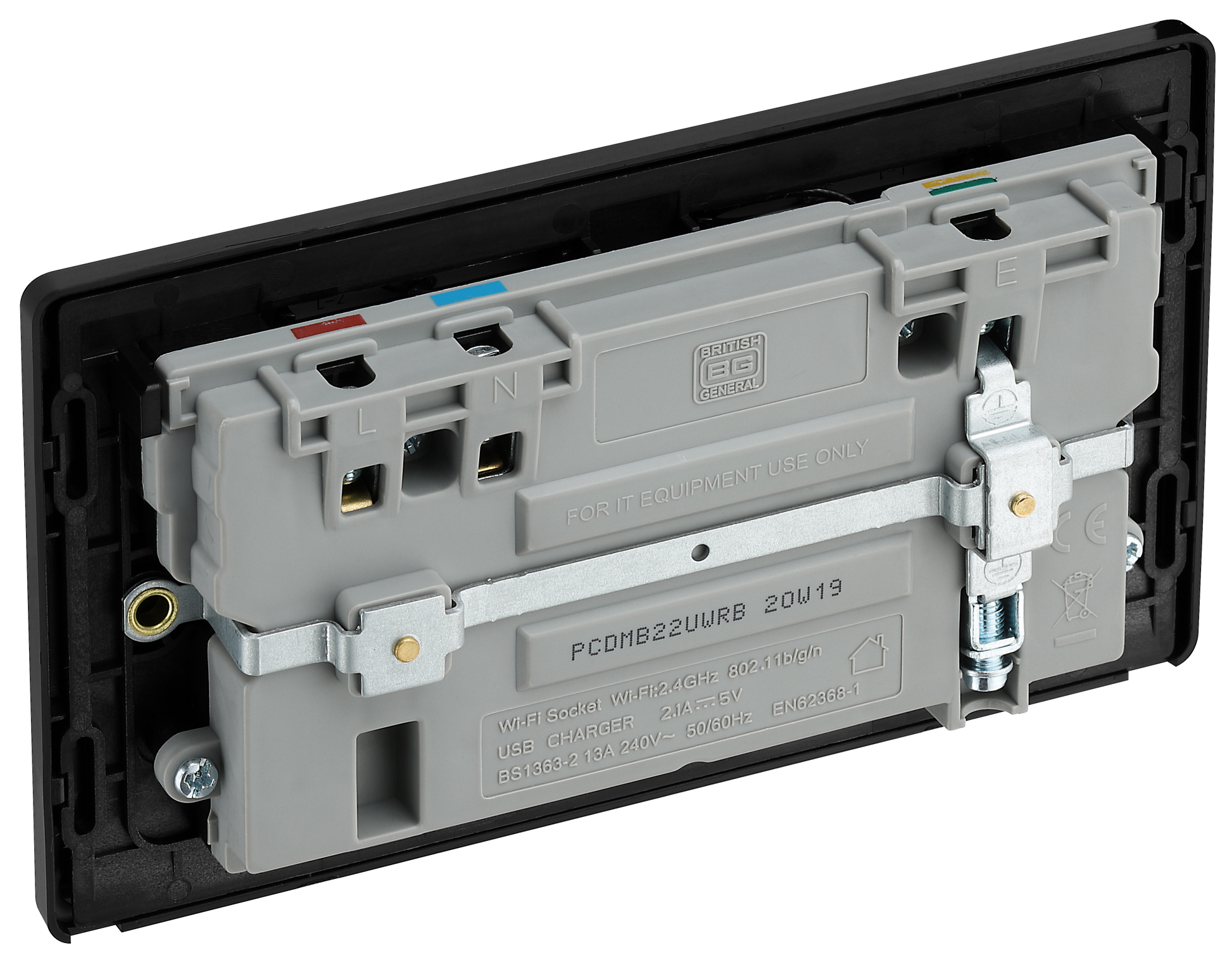

Angled in-line terminals with captive screws provide easy access for quick installation
-
Twin earth fitted as standard for high integrity circuits
-
Screwless front plate clips on and off easily ideal for redecorating
Specification:
PartNum
PCDMB22UWRB-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
35
Terminal Capacity (mm²)
2 x 6.0mm², 3 x 2.5mm², 3 x 4mm²
Front Plate Insert Colour
Black
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Number of Earth Terminals
2
Terminal Arrangement
Angled Inline
Terminals with Colour Coding Print
Yes
Number of Sockets
2
Number of Switches
2
Screw Caps
No
Switch Type (Ways & Poles)
Single Pole
USB Ports
1 x Type A
Fixing Centres (mm)
W-120.6
IP Rating
IP20
USB Output (Type & Rating)
Type A: 5V,2.1A
Network Standards
802.11 b/g/n
Link Rate Class
N300
Radio Band (GHz)
2.4 GHz
Max. Link Rate (Mbps)
300 Mbps
Operating Voltage (V)
220-240
Dimensions:
Product Height (mm)
86
Product Width (mm)
146
Product Depth (mm)
32
Minimum Box Depth (mm)
35
Front Plate Material Thickness (mm)
1.2
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
10
