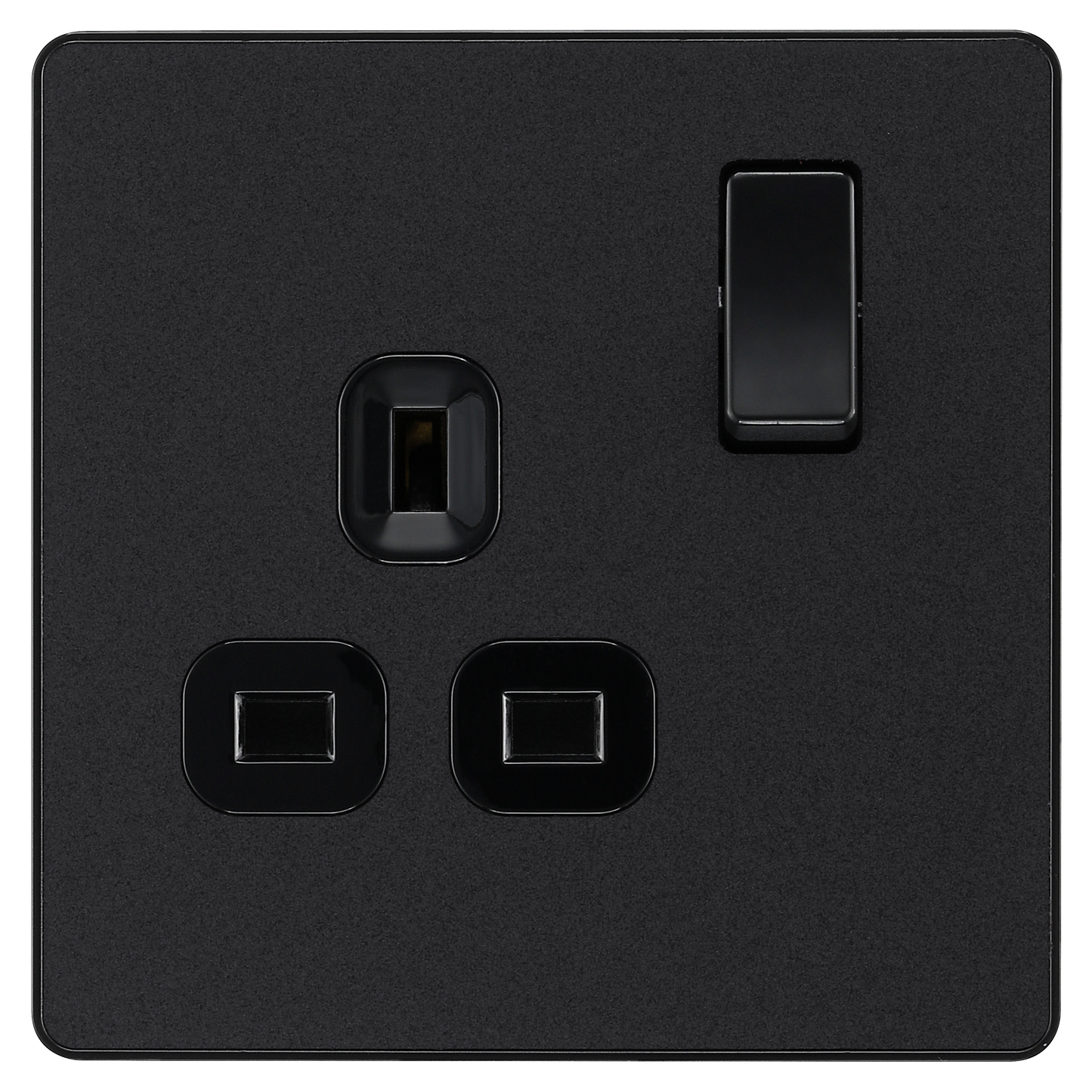

This Evolve Matt Black 13A single switched socket from British General has been designed with angled in line colour coded terminals and backed out captive screws for ease of installation, and fits a 25mm back box making it an ideal retro-fit replacement for existing sockets. The socket has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
13A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Angled colour coded in-line terminals provide easy access for quick installation
-
Twin earth fitted as standard for high integrity circuits
-

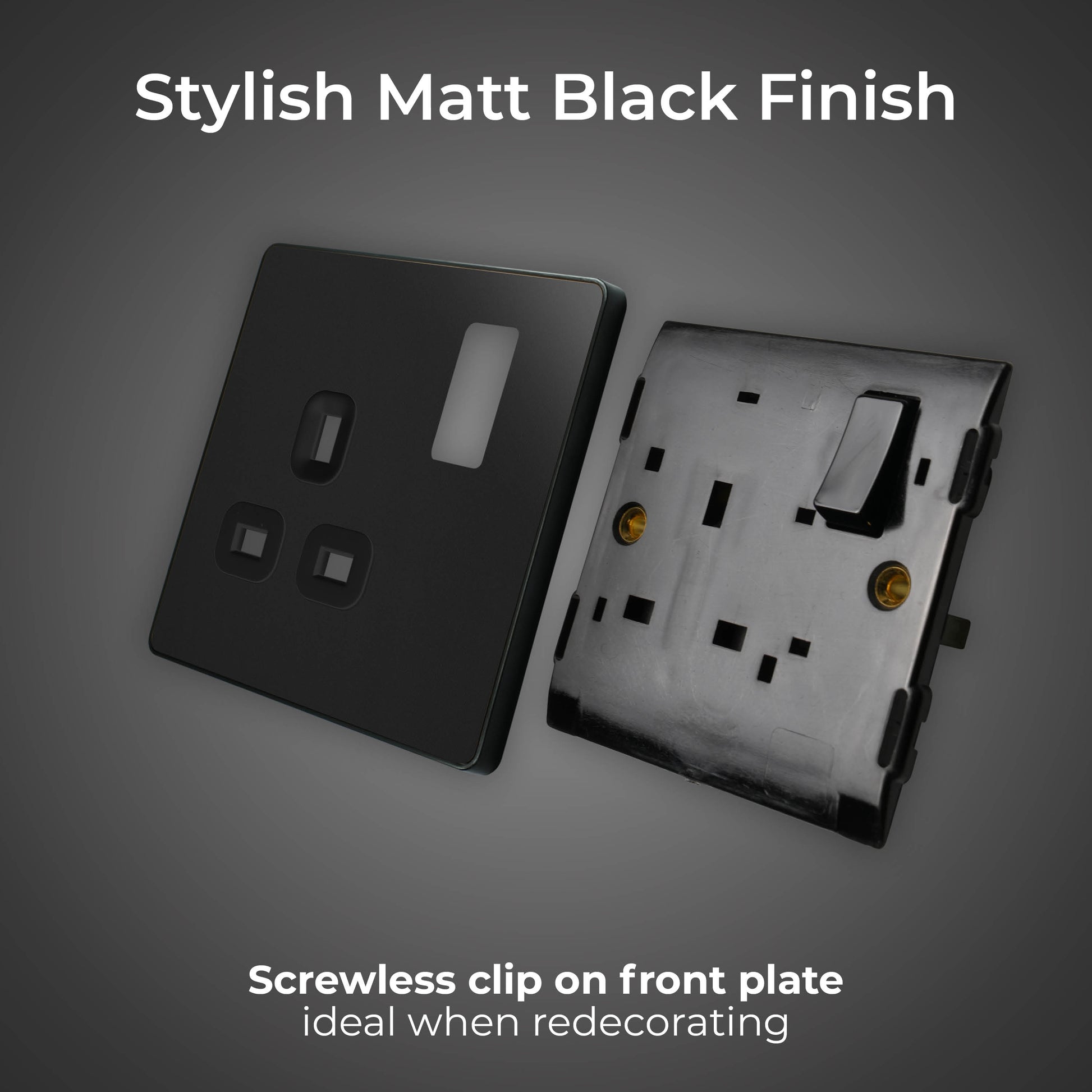

Screwless front plate clips on and off easily ideal for redecorating
-
Minimum mounting box depth 35mm
-
Certified to BS1363-2 and BS 7671:2008
-
ASTA Licence number 1013
Specification:
PartNum
PCDMB21B-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
35
Terminal Capacity (mm²)
2 x 6.0mm², 3 x 2.5mm², 3 x 4mm²
Front Plate Insert Colour
Black
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Number of Earth Terminals
2
Terminal Arrangement
Angled Inline
Terminals with Colour Coding Print
Yes
Number of Sockets
1
Socket Type
G-3P UK Ireland Hong Kong 220-240V 13A
Number of Switches
1
Screw Caps
No
Switch Type (Ways & Poles)
Single Pole
Fixing Centres (mm)
W-60.3
IP Rating
IP20
Operating Voltage (V)
220-240
Dimension:
Product Height (mm)
86
Product Width (mm)
86

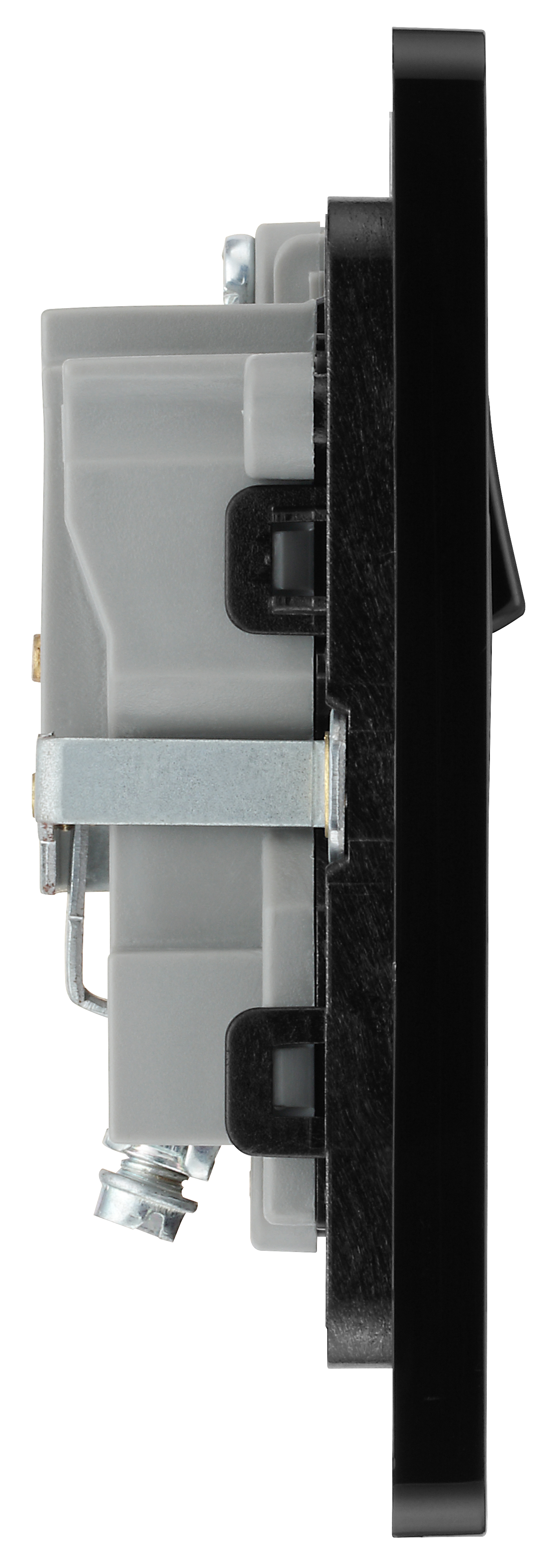

Product Depth (mm)
34
Minimum Box Depth (mm)
35
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
