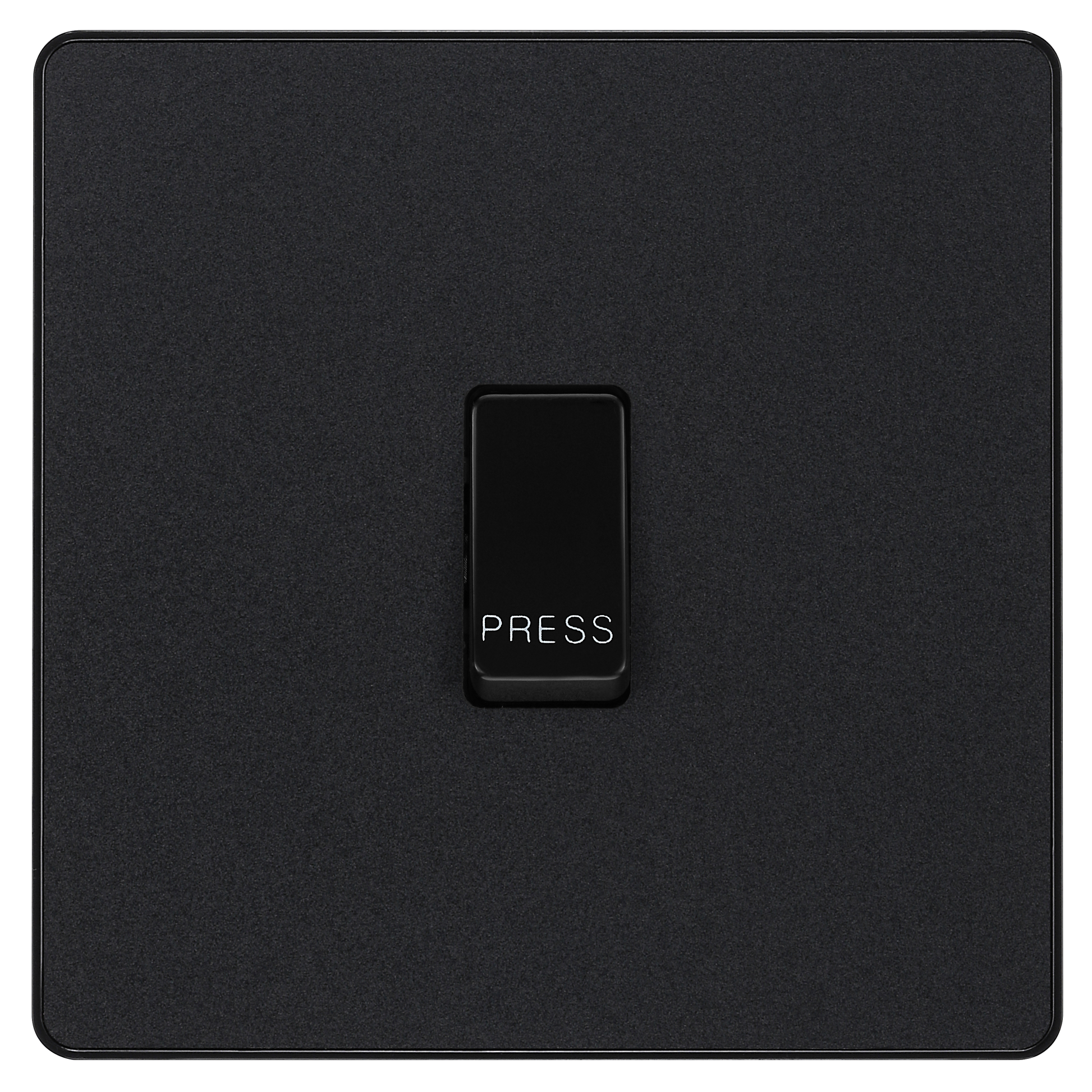

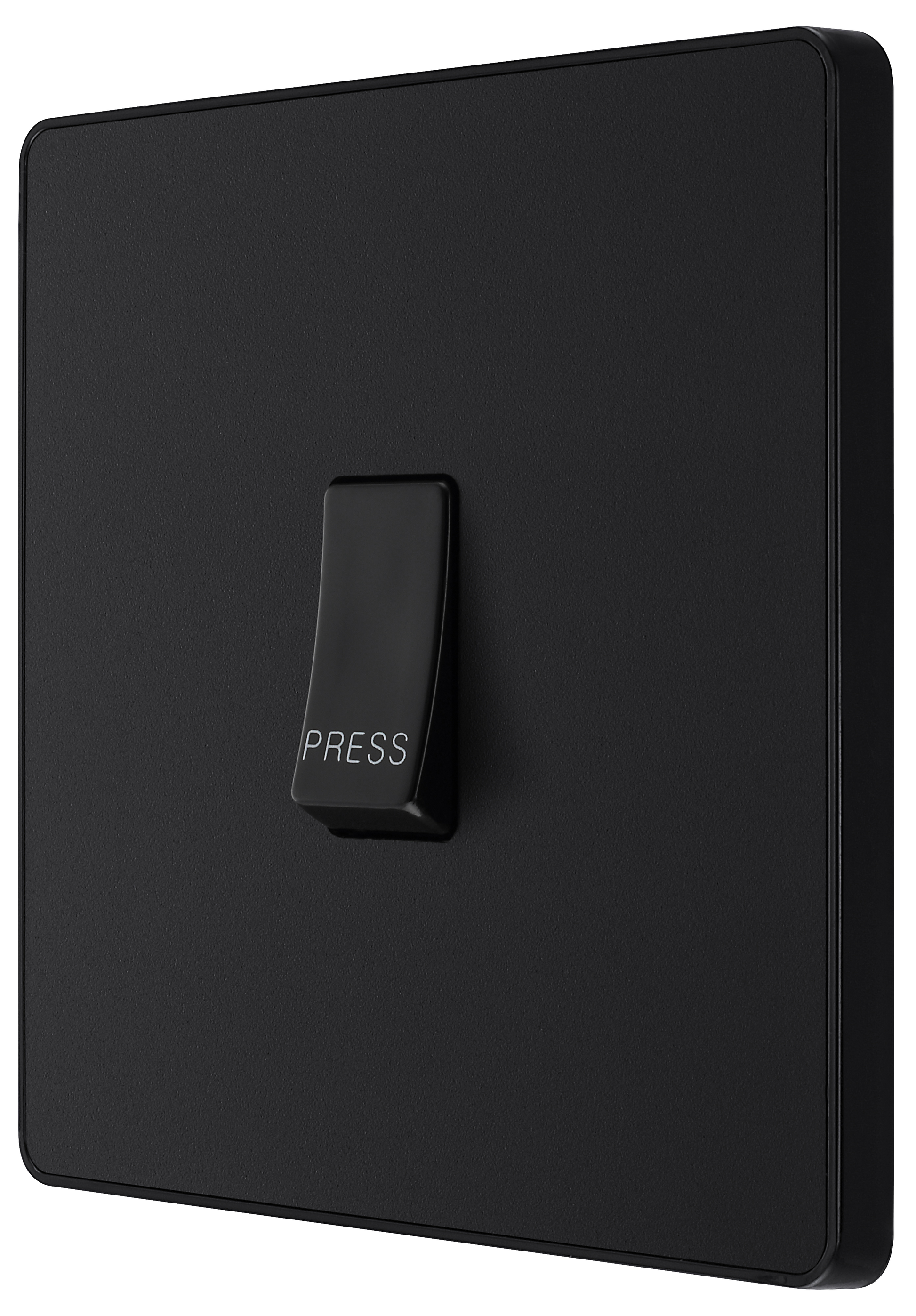

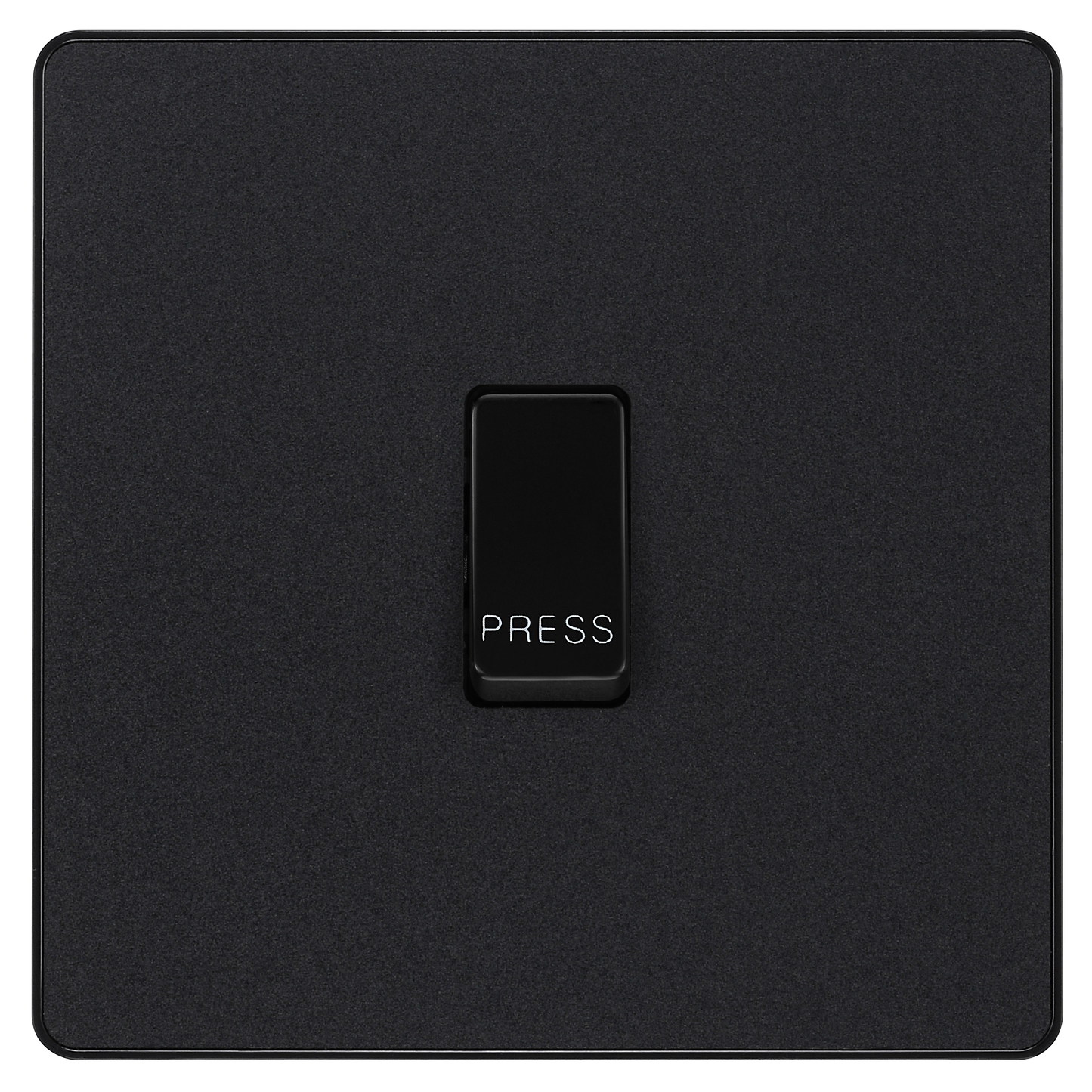

This Evolve Matt Black bell push switch from British General is ideal for use where access is restricted such as office buildings or hospitals, where visitors need to let those inside know they have arrived. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
10A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
1 way retractive switch
-

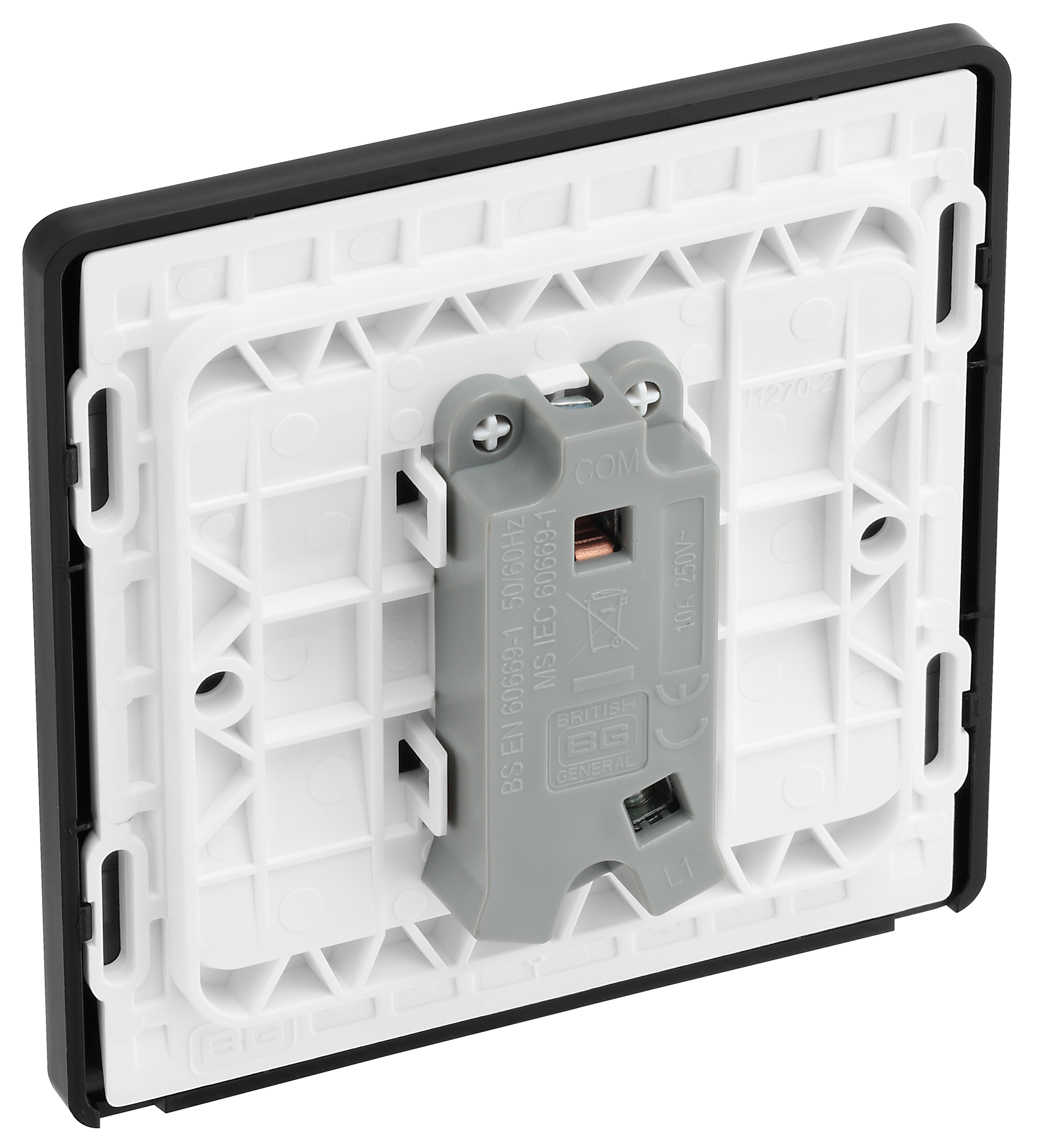

Captive backed out terminal screws for fast installation and to prevent screw loss
-

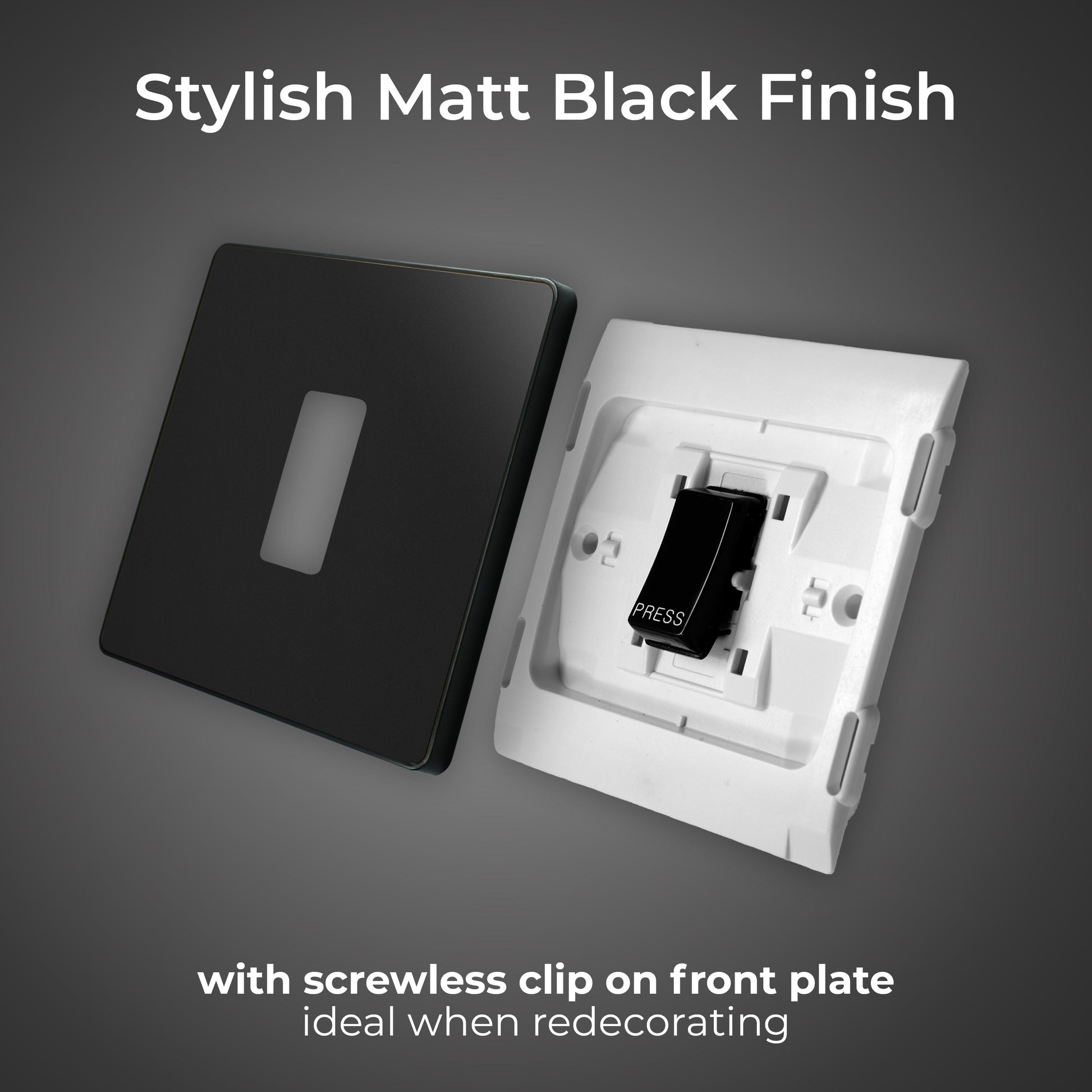

Screwless front plate clips on and off easily ideal for redecorating
-
Minimum mounting box depth 25mm
-
Certified to BS60669-1
-
ASTA Licence number 1010
Specification:
PartNum
PCDMB14B-01
General Colour
Matt Black
Captive Terminal Screws
Yes
Backed-out Terminal Screws
Yes
Minimum Box Depth (mm)
25
Terminal Capacity (mm²)
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer
No
Anti-microbial Property
No
Fixing Screws Supplied
Yes
Terminal Arrangement
N/A
Terminals with Colour Coding Print
No
Number of Switches
1
Screw Caps
No
Switch Style Type
Rocker
Switch Type (Ways & Poles)
One Way
Switch Location Position
Wall
Fixing Centres (mm)
W-60.3
IP Rating
IP20
Operating Voltage (V)
220-240
Switch State
On/Off
Dimensions:
Product Height (mm)
86
Product Width (mm)
86

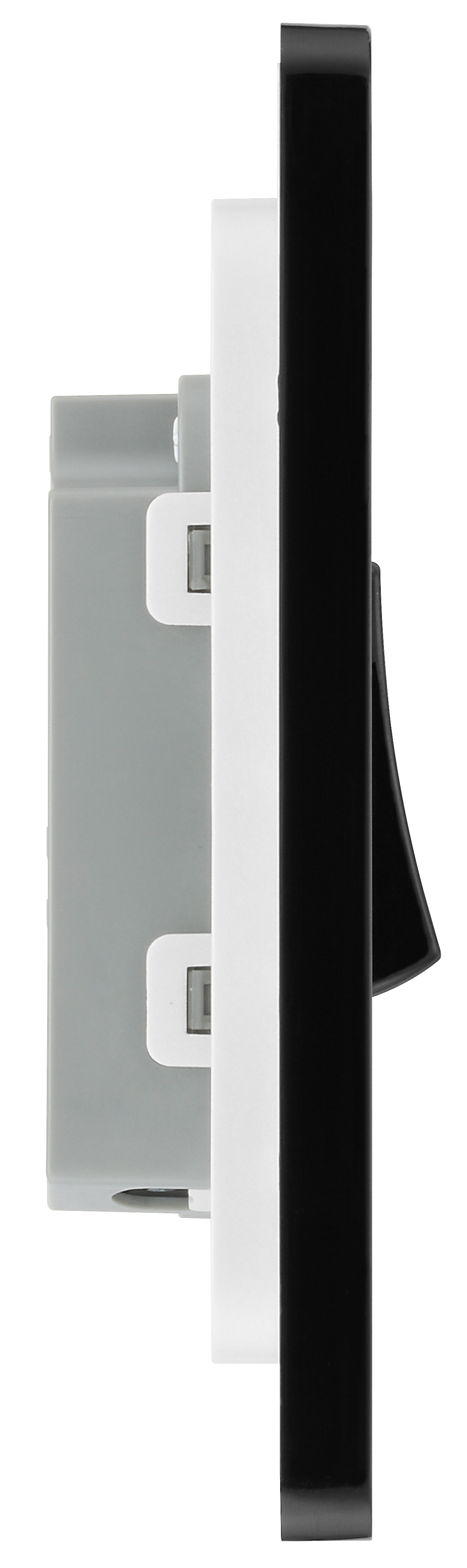

Product Depth (mm)
24.6
Minimum Box Depth (mm)
25
Front Plate Material Thickness (mm)
N/A
Front Plate Height (mm)
5.3
Warranty:
Warranty (years)
25
