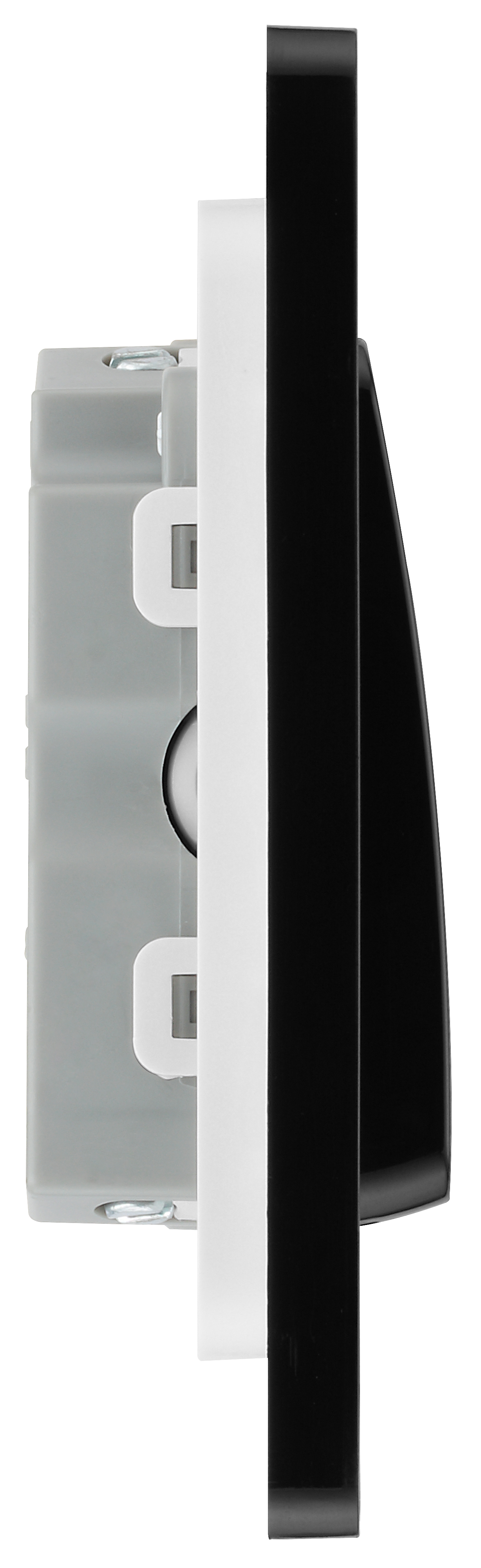

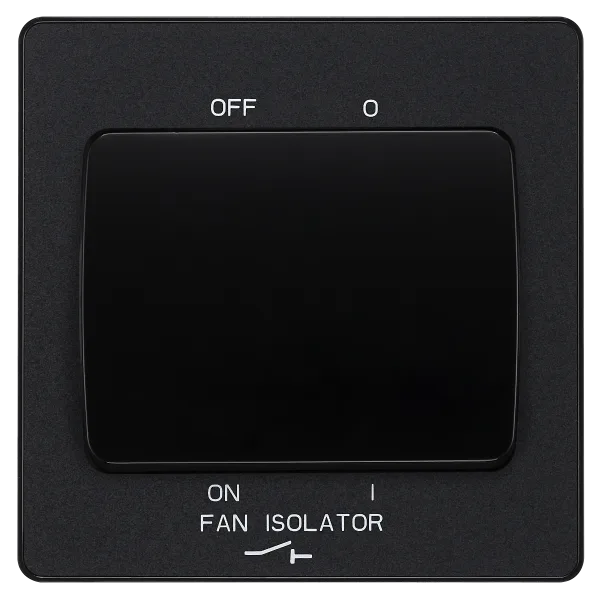

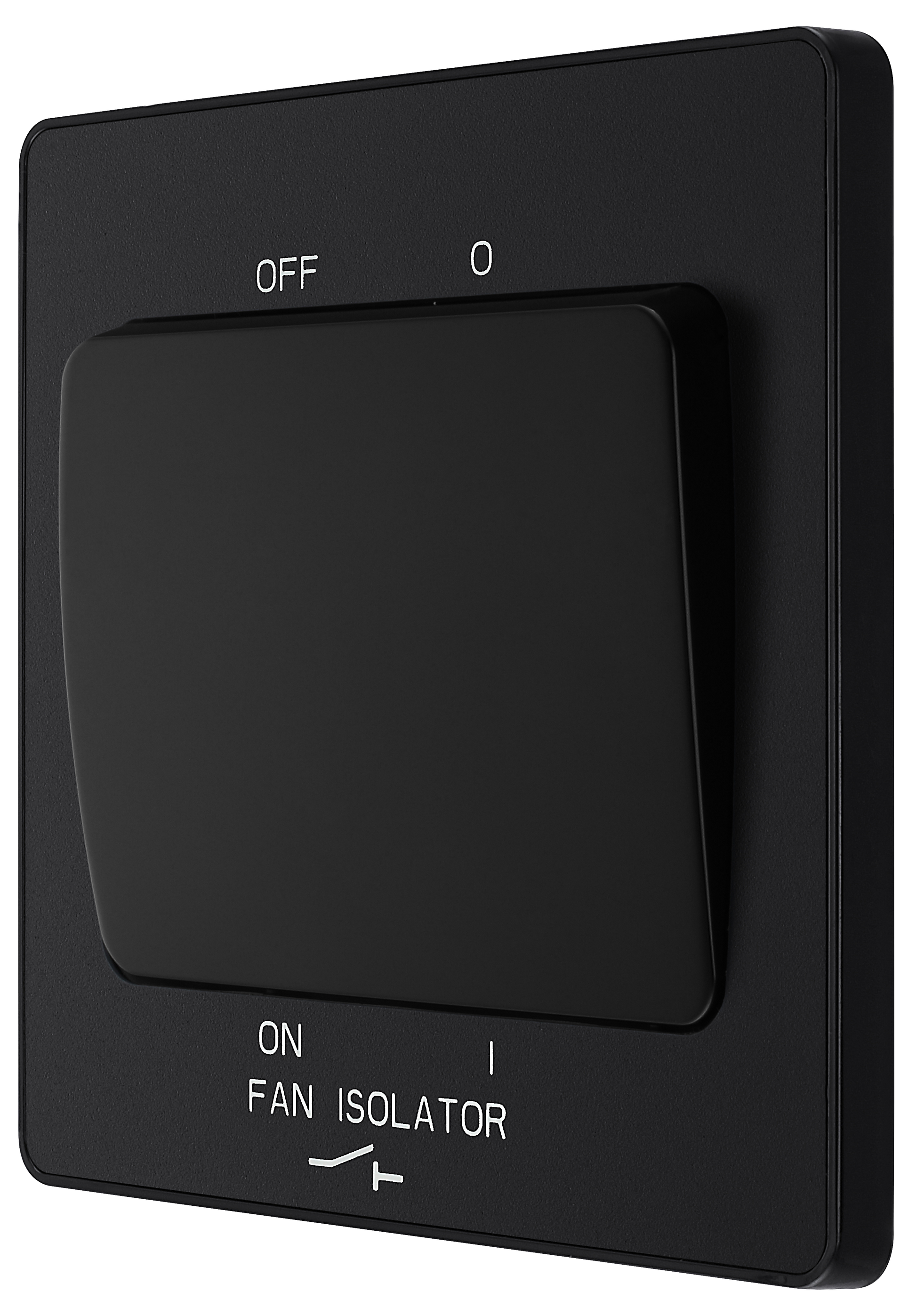

This Evolve Matt Black 10A triple pole fan isolator switch from British General provides a safe and simple method of isolating mechanical fan units. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Features:
-
10A Rated
-
Easy to install supplied with fixing screws and installation instructions
-
Triple pole switching design however can be used for double pole applications if required
-

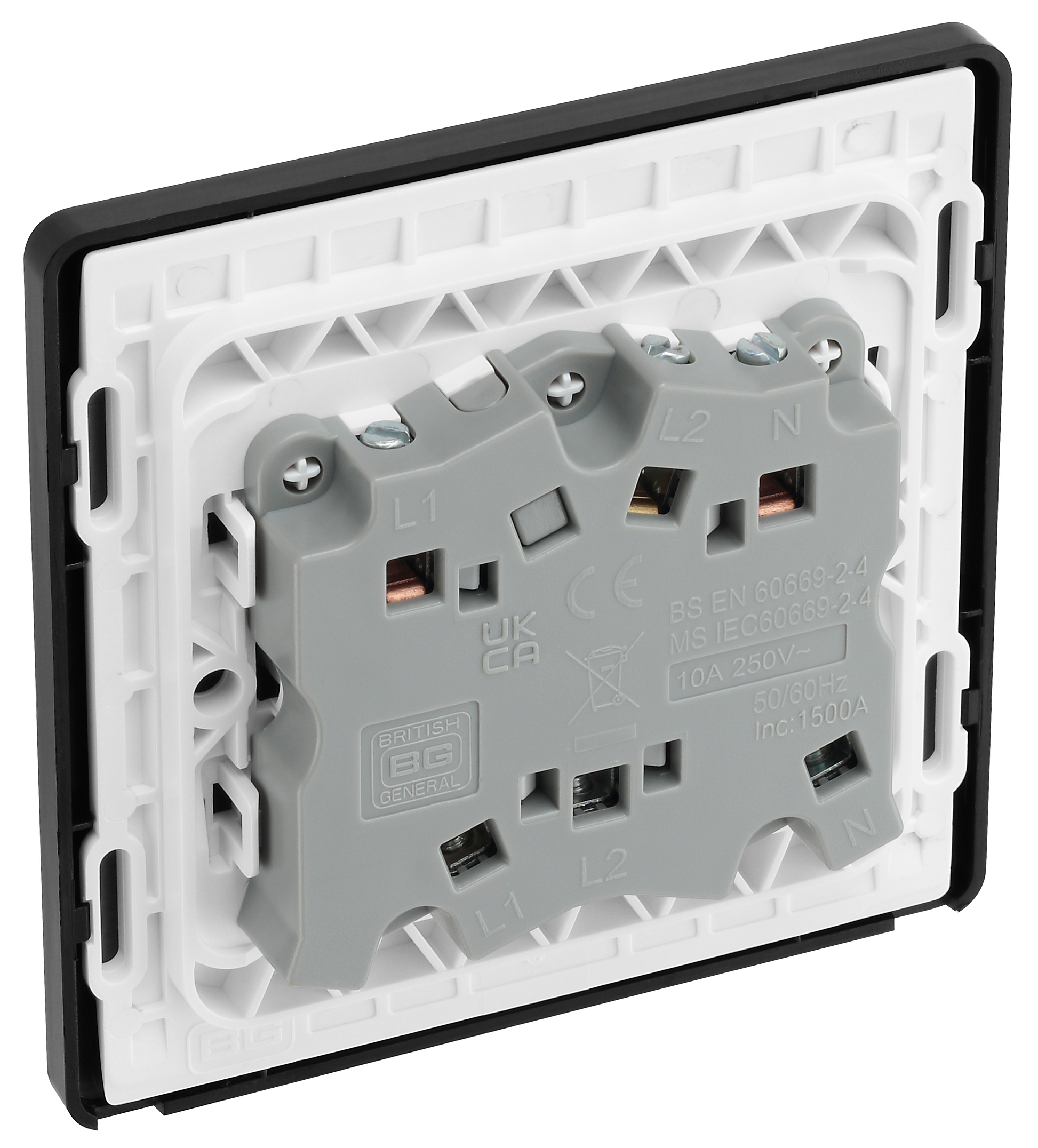

Captive backed out terminal screws for fast installation and to prevent screw loss
-
Screwless front plate clips on and off easily ideal for redecorating
-
Minimum mounting box depth 25mm
-
Certified to BS60669-1
-
ASTA Licence number 1075
Specification:
PartNum:
PCDMB15B-01
General Colour:
Matt Black
Captive Terminal Screws:
Yes
Backed-out Terminal Screws:
Yes
Minimum Box Depth (mm):
25
Terminal Capacity (mm²):
2 x 2.5mm², 4 x 1.0mm², 1 x 4mm²
Anti-fingerprint Lacquer:
No
Anti-microbial Property:
No
Fixing Screws Supplied:
Yes
Terminal Arrangement:
N/A
Terminals with Colour Coding Print:
No
Number of Switches:
1
Screw Caps:
No
Switch Style Type:
Rocker
Switch Type (Ways & Poles):
3 Pole
Switch Location Position:
Wall
Fixing Centres (mm):
W-60.3
IP Rating:
IP20
Operating Voltage (V):
220-240
Switch State:
On/Off
Dimensions:
Product Height (mm):
86
Product Width (mm):
86
Product Depth (mm):
25
Minimum Box Depth (mm):
25
Front Plate Material Thickness (mm):
N/A
Front Plate Height (mm):
5.3
Warranty:
Warranty (Years):
25
25
